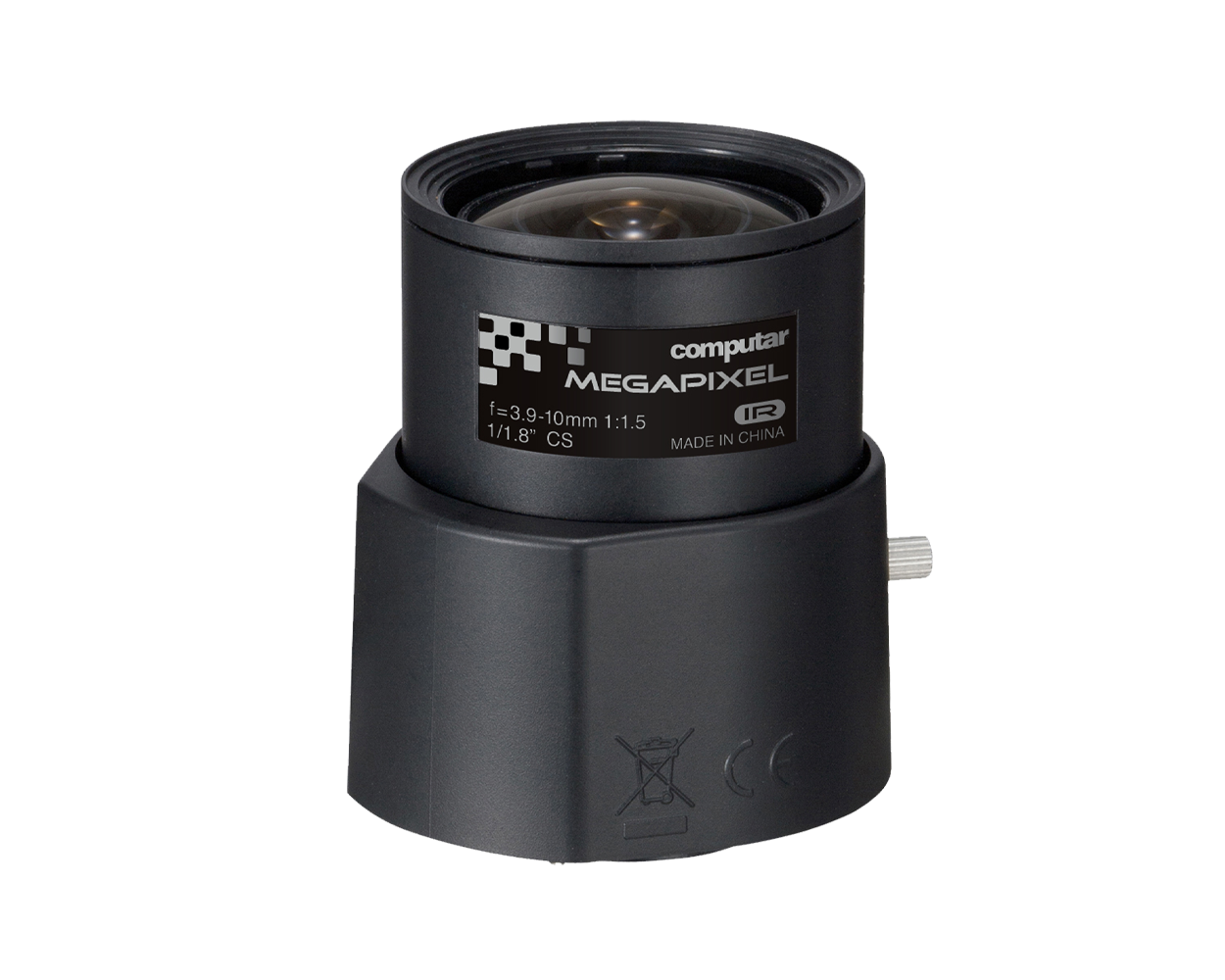

Computar - EG3Z3915FCS-MPWIR - 4K, 1/1.8" 3.9-10mm F1.5 IR Varifocal lens with DC Auto-iris (CS-Mount)
Part number:
EG3Z3915FCS-MPWIR
Price:
4K, 1/1.8" 3.9-10mm F1.5 IR Varifocal lens with DC Auto-iris (CS-Mount)
Features:
- 1/1.8" Format
- 4K Resolution
- 3.9-10mm Varifocal
- DC Auto Iris
- Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
| Model No. | EG3Z3915FCS-MPWIR | Effective Lens Aperture | Front | φ25.0mm | |||
| Focal Length | 3.9mm ‐ 10mm | Rear | φ10.0mm | ||||
| Max. Aperture Ratio | 1:1.5 | Back Focal Length | Tele | 8.5mm | |||
| Max. Image Format | 7.1mm x 5.4mm(φ8.9mm） | Wide | 8.5mm | ||||
| Operation Range | Iris | F1.5 ‐ F360C | Flange Back Length | 12.5mm | |||
| Focus | 0.8m ‐ lnf. | Mount | CS‐Mount | ||||
| Zoom | 3.9mm ‐ 10mm | Filter Size | - | ||||
| Control | Iris | DC Auto Iris | Dimensions | φ40 mm× 49 mm× 59 mm | |||
| Focus | Manual | Weight | 72g | ||||
| Zoom | Manual | ||||||
| Angle of View | D | 1/1.8 type | 144.1°‐ 52.9° | 1/2 type | 124.8°‐ 47.5° | 1/3 type | 89.3°- 35.5° |
| H | 108.1°‐ 42.1° | 96.0°‐ 37.9° | 70.2°- 28.4° | ||||
| V | 79.7°‐ 32.0° | 70.2°‐ 28.4° | 52.1°- 21.3° | ||||
| Coil | Drive | 190Ω/20℃ | |||||
| Control | 855Ω/20℃ | ||||||
| Operating Temperature | -20℃ ‐ +60℃ | ||||||
Name
Description
Size
Downloads
File
Datasheet
0.1mb
