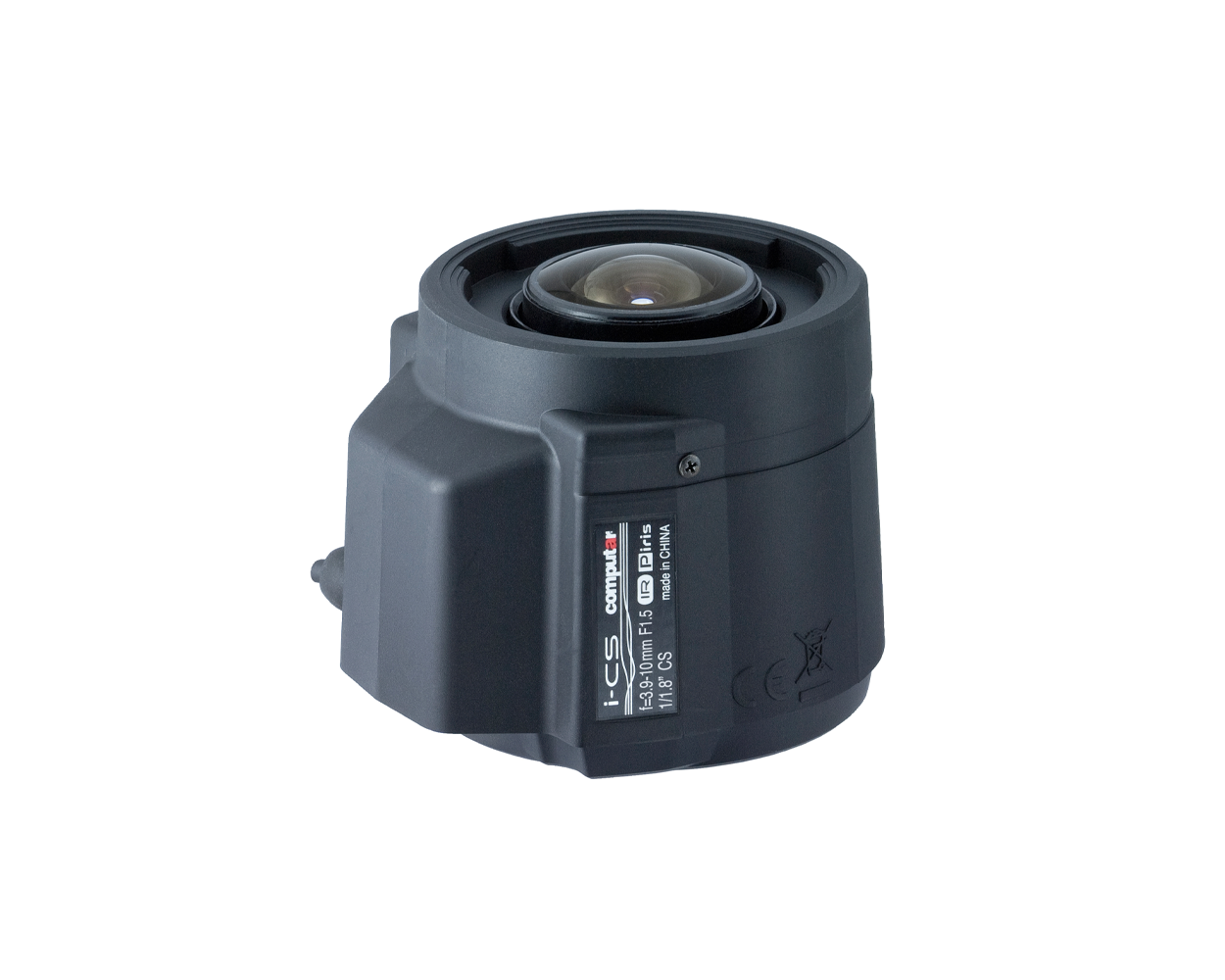

Computar - EG3Z3915TCS-MPWIR - 1/1.8" 3.9-10mm, f1.5, i-CS, 4k, CS-mount
Part number:
EG3Z3915TCS-MPWIR
Price:
The EG3Z3915TCS-MPWIR intelligent i-CS lens features open protocol technology, allowing it to directly exchange information with the new high-end fixed cameras. The i-CS lens combines high-performance optics with quick & easy installation and intuitive configuration.
Features:
- 1/1.8” Format
- Capable of 6 Megapixel sensor
- 4K
- 3.9-10mm F1.5 Varifocal
- Full HD Format
- P-Iris for Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
| Model No. | EG3Z3915TCS-MPWIR | Effective Lens Aperture | Front | φ25mm | |||
| Focal Length | 3.9mm ‐ 10mm | Rear | φ10.0mm | ||||
| Max. Aperture Ratio | 1:1.5 | Back Focal Length | Tele | 8.5mm | |||
| Max. Image Format | 7.1mm x 5.4mm(φ8.9mm） | Wide | 8.5mm | ||||
| Operation Range | Iris | F1.5 ‐ F16C | Flange Back Length | 12.5mm | |||
| Focus | 0.8m ‐ lnf. | Mount | CS‐Mount | ||||
| Zoom | 3.9mm ‐ 10mm | Filter Size | - | ||||
| Control | Iris | i-CS Control (I2C) | Dimensions | φ54.4 mm× 67.5 mm× 59 mm | |||
| Focus | i-CS Control (I2C) | Weight | 110g | ||||
| Zoom | i-CS Control (I2C) | ||||||
| Angle of View | D | 1/1.8 type | 144.1°‐ 52.9° | 1/2 type | 124.8°‐ 47.5° | 1/3 type | 89.3°- 35.5° |
| H | 108.1°‐ 42.1° | 96.0°‐ 37.9° | 70.2°- 28.4° | ||||
| V | 79.7°‐ 32.0° | 70.2°‐ 28.4° | 52.1°- 21.3° | ||||
| Supply Voltage | DC3.3V | Operating Temperature | -10℃ ‐ +65℃ | ||||
| Current | 450mA MAX | ||||||
