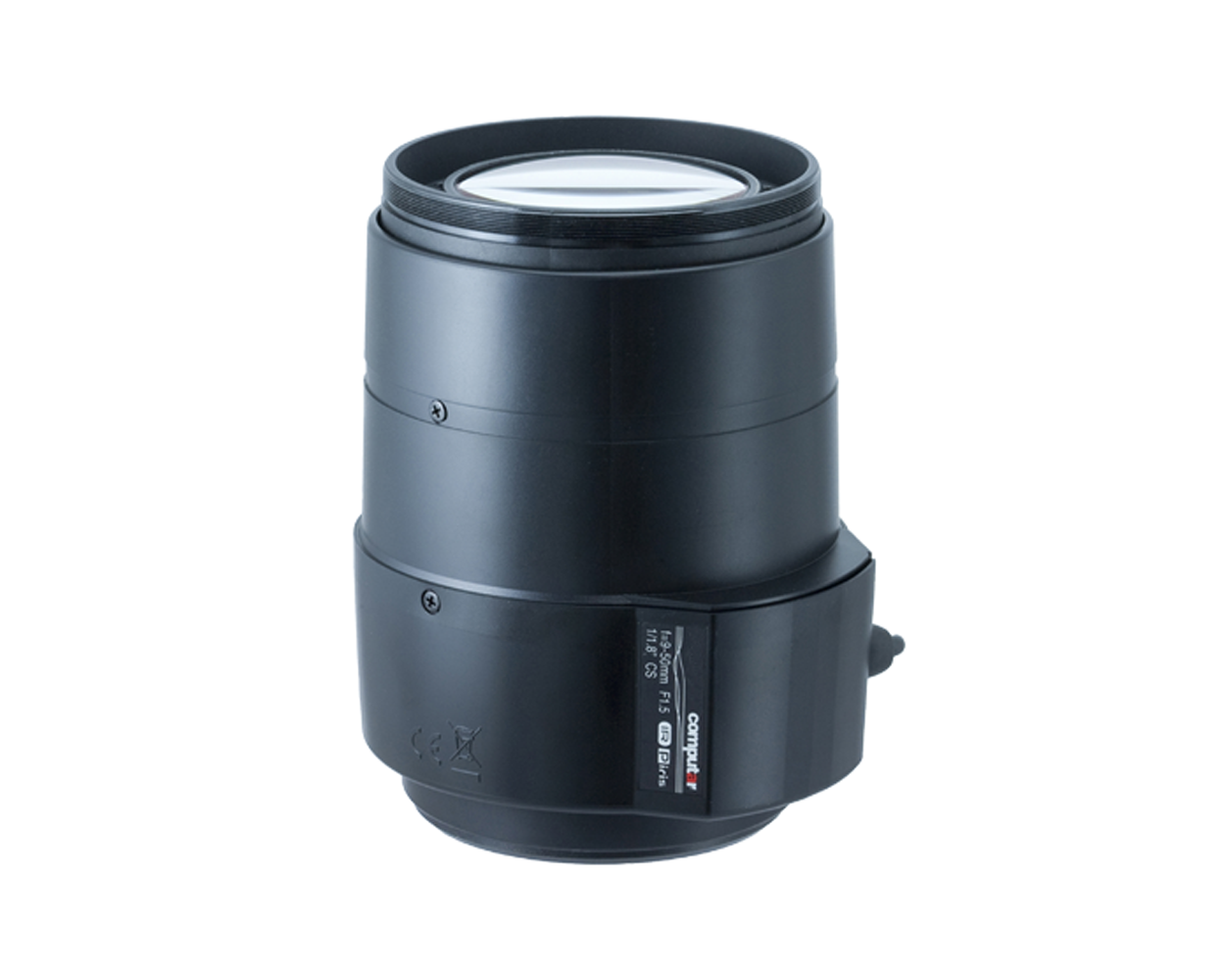

Computar - EG6Z0915KCS-MPWIR - 1/1.8" 9-50mm, f1.5, P Iris, 4K, CS-mount
Part number:
EG6Z0915KCS-MPWIR
Price:
4K 1/1.8" 9.0-50mm F1.5 IR Varifocal Lens with P-iris,12 MP capable (CS-Mount)
Features:
- 1/1.8” Format
- 4K
- 9.0-50mm
- F1.5 Flat
- HOV 46o-9o
- Full HD Format
- P-Iris
- Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
| Model No. | EG6Z0915KCS‐MPWIR‐V | Min. Objective Distance | 3m from front of lens | ||||||
| Focal Length | 9mm ‐ 50mm | Effective Lens Aperture | Front:φ44.7mm Rear:φ9.6mm | ||||||
| F‐Number | Wide | F1.5 ‐ F16C | Back Focal Length | Wide | 9.2 mm (in Air) | ||||
| Tele | F1.6 ‐ F16C | Tele | 9.2 mm (in Air) | ||||||
| Max. Image Format | 7.1mm x 5.4mm (φ8.9mm) | Flange Back Length | 12.5mm (In Air) | ||||||
| Angle of View | Diagonal | 1/1.8 type (16:9) | 52.5°～ 10.2° | 1/1.8 type (4:3) | 52.5°～ 10.2° | 1/2.7 type (16:9) | 39.4°～ 7.7° | ||
| Horizontal | 46.1°～ | 9.0° | 42.3°～ | 8.2° | 34.5°～ 6.7° | ||||
| Vertical | 26.3°～ | 5.2° | 32.4°～ | 6.3° | 19.5°～ 3.8° | ||||
| Angle of View | Diagonal | 1/2.8 type (16:9) | 38.5°～ | 7.5° | 1/3 type (4:3) | 35.9°～ | 7.0° | ||
| Horizontal | 33.7°～ | 6.6° | 28.8°～ | 5.7° | |||||
| Vertical | 19.1°～ | 3.8° | 21.7°～ | 4.3° | |||||
| Control | Iris | Stepping Motor | Dimensions | As per the attached drawing |
| Focus | Manual | Mount | CS mount | |
| Zoom | Manual | Weight | 278g | |
| Tripod Screw | 1/4 ‐20UNC | Operating Temperature | ‐20℃ ‐ +60℃ | |
