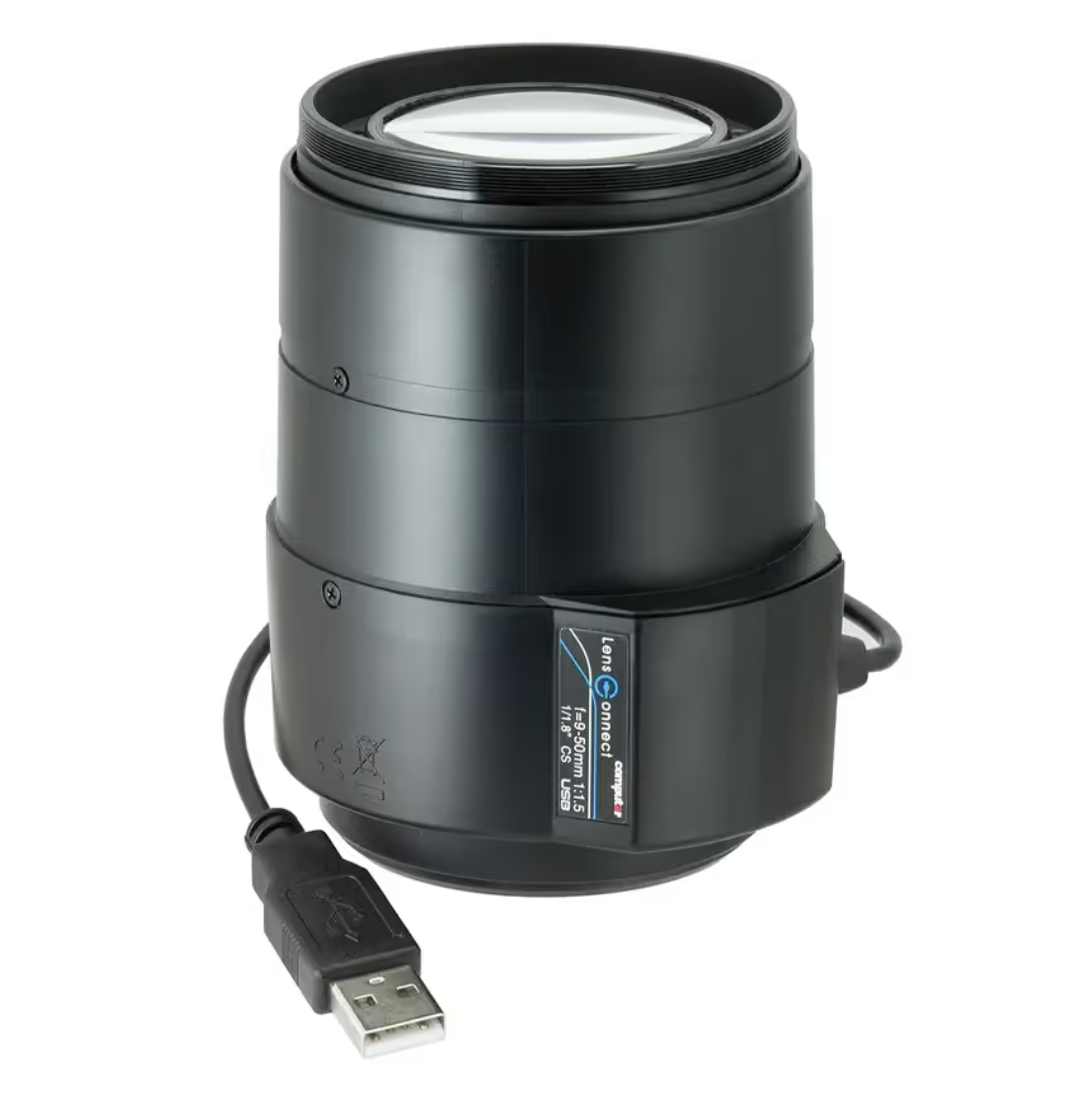

Computar - EL6Z0915SCS-MPWIR - 5MP 1/1.8” 9-50mm F1.5, LensConnect with P-iris with remote adjustment, (CS-mount)

Product Overview

The EL6ZO915UCS-MPWIR is a 5MP LensConnect motorized lens designed for 1/1.8" format cameras. It features a 9-50mm varifocal range, F1.5 aperture, CS-mount design, remote P-Iris adjustment, remote zoom control, and IR-compatible imaging support.

Key Configuration

LensConnect series; 1/1.8" format; 5MP resolution support; 9-50mm varifocal lens; F1.5 aperture; CS mount; remote P-Iris; remote zoom; FA support; IR support; USB power and control; Windows and Linux setup software compatibility.

Key Features

• Motorized LensConnect design enables power supply and control through USB
• Remote adjustment supports zoom, focus, and iris control
• P-Iris operation supports precise aperture adjustment from software
• Floating focus design helps maintain high resolution from near to far distances
• Stepper motors provide precise focus control and repeatable positioning

Technical Context

The lens is part of the LensConnect series, which uses a plug-and-play USB control approach for remote lens operation. The included setup software supports Windows and Linux environments.

Installation Notes

This CS-mount lens is intended for compatible 1/1.8" camera platforms that can use USB-based LensConnect control for remote zoom, focus, and iris adjustment.
