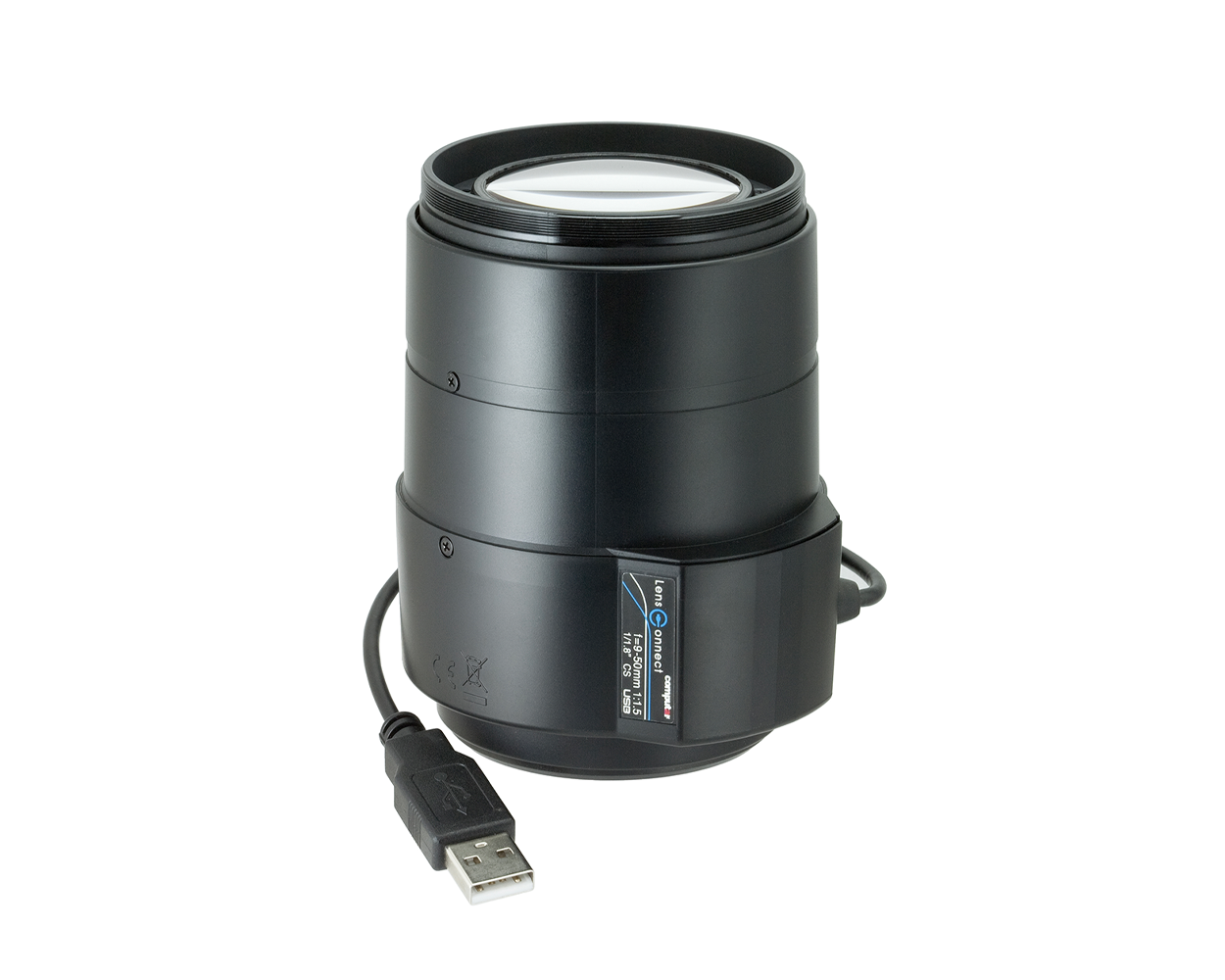

LensConnect Series of motorized lenses are engineered to enable power supply and control through USB. This innovative Plug and Play lens series allows remote adjustment of the zoom*, focus, or iris and comes with a simple set-up software compatible with Windows or Linux (*zoom adjustment for varifocal models only).
In addition, the remote control is easy to achieve - even without any prior knowledge of the lens. The floating focus design delivers ultra-high resolution from near to far, and stepper motors enable precise focus control and high repeatability.
Features:
- 5MP
- Suitable for large format sensors (IMX183)
- 1/1.8” format
- 9-50mm remote zoom, f1.5
- P-Iris with remote adjustment
- Power supply & control through USB
- Floating focus design achieves ultra-high resolution from near to far.
- Stepper motors realize precise focus control and high repeatability
- Easy-to-install by free control software
| Optical Specifications | |||||||
| Model No. | EL6Z0915UCS-MPWIR | Min. Objective Distance | 3m from front of lens | ||||
| Focal Length | 9mm ‐ 50mm | Effective Lens Aperture | Front:φ44.7mm Rear:φ9.6mm | ||||
| F-Number | Wide | F1.5 - F16C | Back Focal Length | Wide | 9.2 mm (in Air) | ||
| Tele | F1.6 - F16C | Tele | 9.2 mm (in Air) | ||||
| Max. Image Format | 7.1mm x 5.4mm (φ8.9mm) | Flange Back Length | 12.5mm (In Air) | ||||
| Angle of View | Diagonal | 1/1.8 type (16:9) | 52.5°～ 10.2° | 1/1.8 type (4:3) | 52.5°～ 10.2° | 1/2.7 type (16:9) | 39.4°～ 7.7° |
| Horizontal | 46.1°～ 9.0° | 42.3°～ 8.2° | 34.5°～ 6.7° | ||||
| Vertical | 26.3°～ 5.2° | 32.4°～ 6.3° | 19.5°～ 3.8° | ||||
| Diagonal | 1/2.8 type (16:9) | 38.5°～ 7.5° | 1/3 type (4:3) | 35.9°～ 7.0° | |||
| Horizontal | 33.7°～ 6.6° | 28.8°～ 5.7° | |||||
| Vertical | 19.1°～ 3.8° | 21.7°～ 4.3° | |||||
| Mechanical & Electrical Specifications | |||||||
| Control Interface | USB2.0 | Dimensions | As per the attached drawing | |
| Power mode | Bus power (500mA) | Mount | CS mount | |
| Connector | USB TypeA | Weight | 299g | |
| Operating Temperature | -20℃ - +60℃ | Tripod Screw | 1/4 -20UNC | |
Control | Iris | Motorized | Filter thread | *M67xP0.75 (With VM0918) |
| Focus | Motorized | |||
| Zoom | Motorized | (*)For using filters, please attach VM0918 (Sold Separately). | ||
