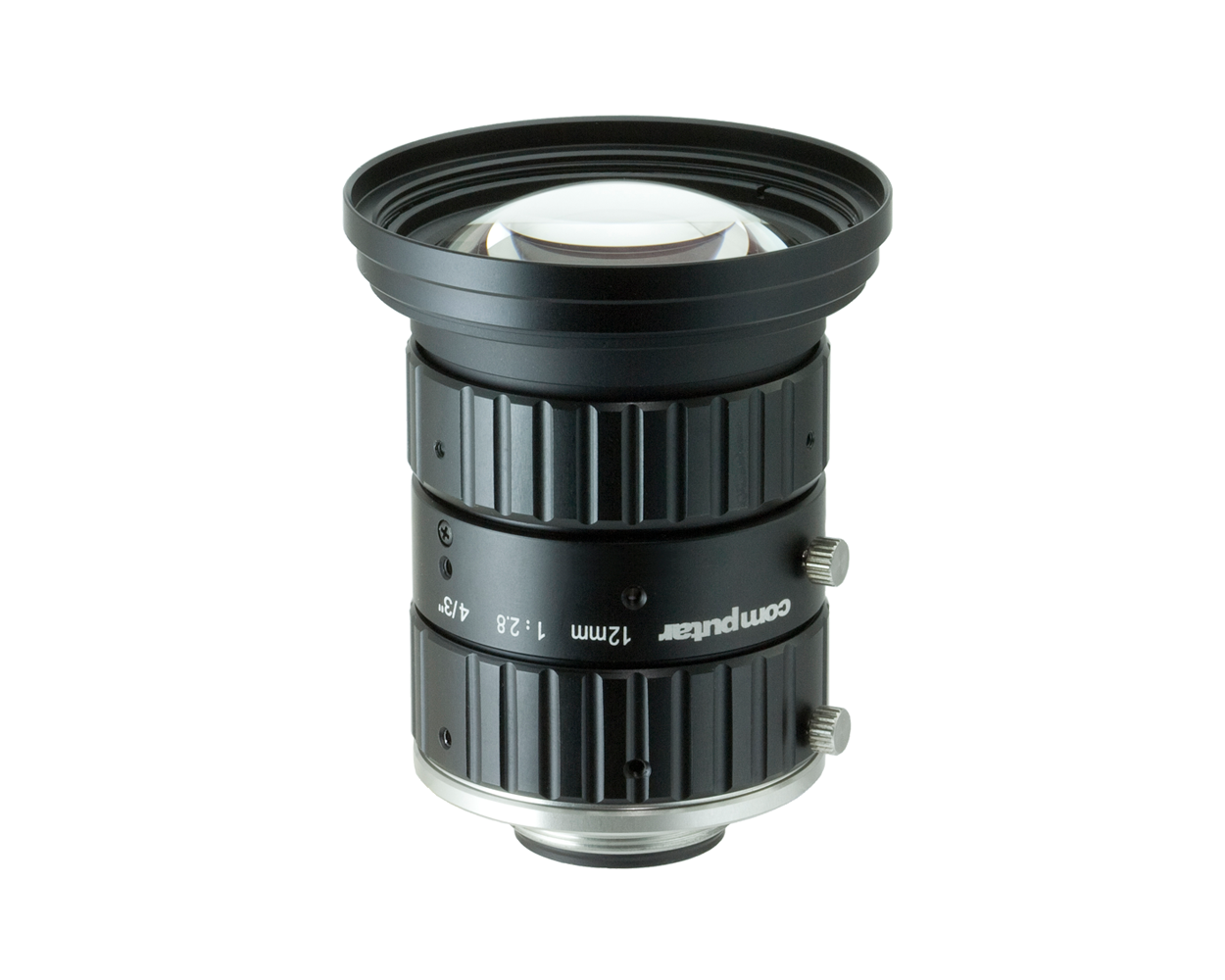

Computar - F1228-MPT - 45MP 1.4" 12mm F2.8, Machine Vision Lens (C-Mount)
Part number:
F1228-MPT
Price:
1.4" 12mm f2.8, 2.3um, 45.0 megapixel, Ultra low Distortion Lens.
Features:
- 1.4” Format
- 45 Megapixel
- 12mm Fixed
- F2.8
- IMX350 2.74μm
- Full HD Format
- Manual Iris
- Compact & Lightweight
- Ultra Low Distortion
- Also available in 16mm, 25mm, 35mm, and 50mm
| Model No. | F1228-MPT | Effective Lens Aperture | Front | φ40.3mm | |||
| Focal Length | 12mm | Rear | φ18.9mm | ||||
| Max. Aperture Ratio | 1:2.8 | Distortion (Inf.) | 1.4 Type | 0.13% | |||
| Image Circle Diameter | φ23.1mm | Back Focal Length | 10.8mm | ||||
| Operation Range | Iris | F2.8 ‐ F16.0 | Flange Back Length | 17.526mm | |||
| Focus | 0.15m ‐ Inf. | Mount | C-Mount | ||||
| Control | Iris | Manual | Filter Size | M72 P=0.75mm* | |||
| Focus | Manual | Dimensions | φ56.5mm×64.8mm | ||||
| Operating Temperature | -10℃ ‐ +50℃ | φ75mm×66.1mm (with TM-1243) | |||||
| Weight | 205g | ||||||
| Angle of View | Sensor Size | 1.4 Type | 1.2 Type | 1.1 Type | |||
| Diagonal | 19.08mm×13.03mm (φ23.1mm) | 86.1° | 14.60mm×12.63mm (φ19.3mm) | 76.6° | 14.19mm×10.38mm (φ17.6mm) | 71.6° | |
| Horizontal | 76.0° | 61.9° | 60.4° | ||||
| Vertical | 56.2° | 54.8° | 46.1° | ||||
