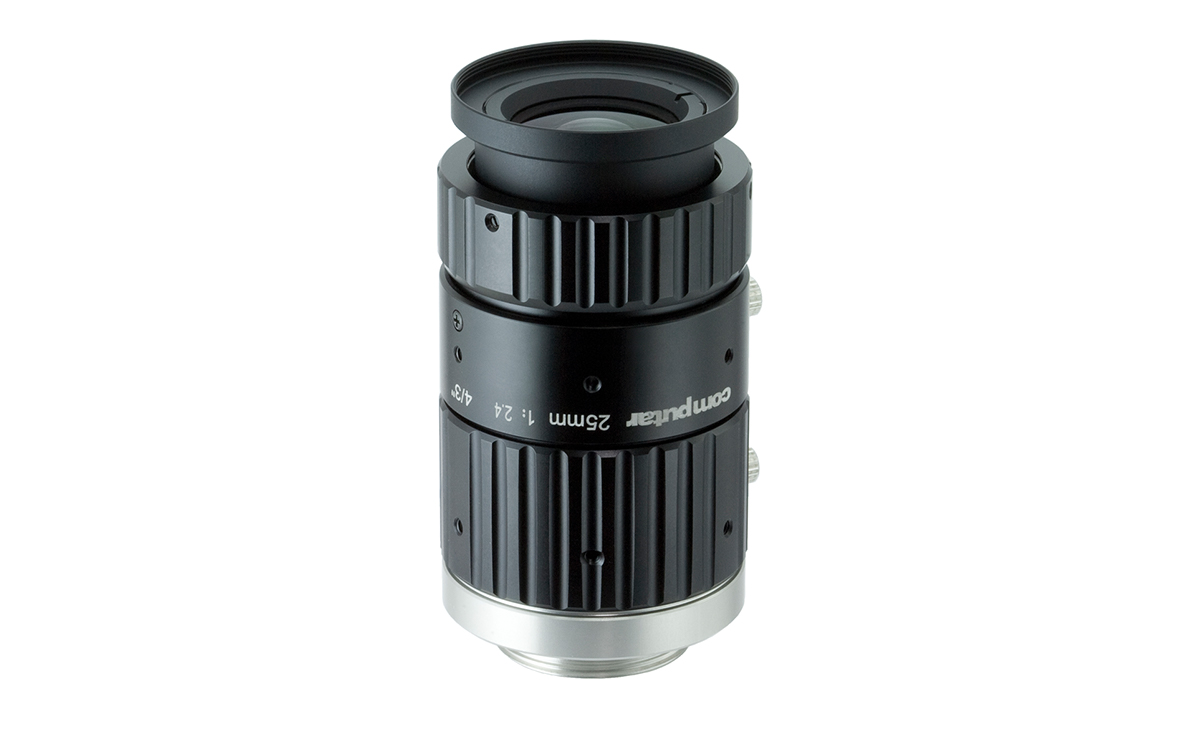

Computar - F2524-MPT - 45MP 1.4" 25mm F2.4, Machine Vision Lens (C-Mount)
Part number:
F2524-MPT
Price:
1.4" 25mm f2.4, 2.3um, 45.0 megapixel, Ultra low Distortion Lens.
Features:
- 1.4” Format
- 45 Megapixel
- 25mm Fixed
- F2.4
- IMX350 2.74μm
- Full HD Format
- Manual Iris
- Compact & Lightweight
- Ultra Low Distortion
- Also available in 12mm, 16mm, 35mm, and 50mm
| Model No. | F2524-MPT | Effective Lens Aperture | Front | φ20.7mm | |||
| Focal Length | 25mm | Rear | φ18.7mm | ||||
| Max. Aperture Ratio | 1:2.4 | Distortion (Inf.) | 1.4 Type | 0.06% | |||
| Image Circle Diameter | φ23.1mm | Back Focal Length | 18.1mm | ||||
| Operation Range | Iris | F2.4 ‐ F16.0 | Flange Back Length | 17.526mm | |||
| Focus | 0.15m ‐ Inf. | Mount | C-Mount | ||||
| Control | Iris | Manual | Filter Size | M34 P=0.5mm | |||
| Focus | Manual | Dimensions | φ39mm×66mm | ||||
| Operating Temperature | -10℃ ‐ +50℃ | Weight | 152g | ||||
| Angle of View | Sensor Size | 1.4 Type | 1.2 Type | 1.1 Type | |||
| Diagonal | 19.08mm×13.03mm (φ23.1mm) | 49.6° | 14.60mm×12.63mm (φ19.3mm) | 42.4° | 14.19mm×10.38mm (φ17.6mm) | 39.0° | |
| Horizontal | 41.9° | 32.7° | 31.8° | ||||
| Vertical | 29.3° | 28.5° | 23.6° | ||||
