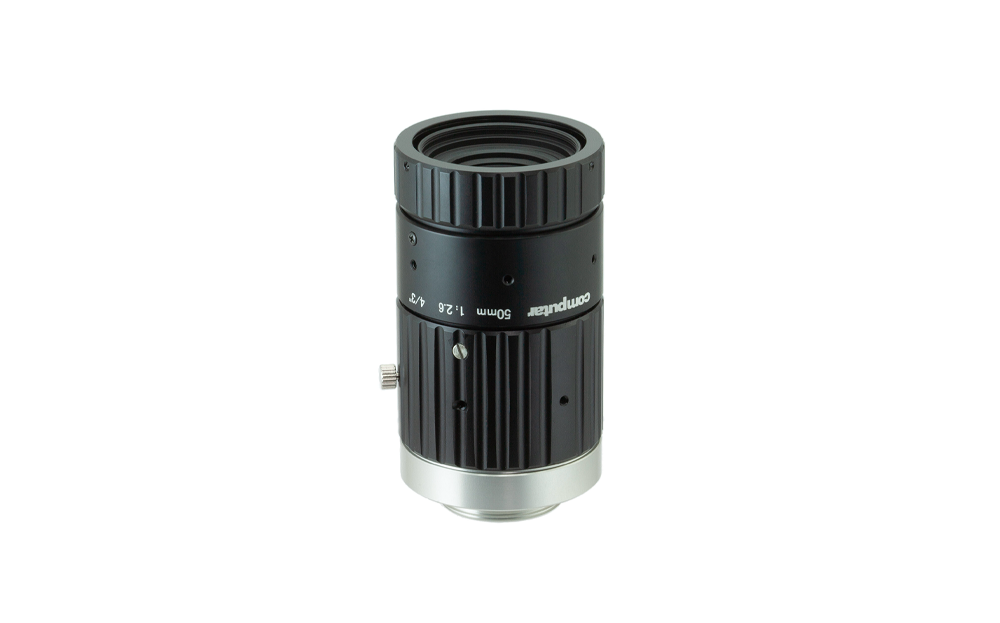

Computar - F5026-MPT - 45MP 1.4" 50mm F2.6, Machine Vision Lens (C-Mount)
Part number:
F5026-MPT
Price:
1.4" 50mm f2.6, 2.3um, 45.0 megapixel, Ultra low Distortion Lens.
Features:
- 1.4” Format
- 45 Megapixel
- 50mm Fixed
- F2.6
- IMX350 2.74μm
- Full HD Format
- Manual Iris
- Compact & Lightweight
- Ultra Low Distortion
- Also available in 12mm, 16mm, 25mm, and 35mm
| Model No. | F5026-MPT | Effective Lens Aperture | Front | φ18.7mm | |||
| Focal Length | 50mm | Rear | φ18.6mm | ||||
| Max. Aperture Ratio | 1:2.6 | Distortion (Inf.) | 1.4 Type | -0.03% | |||
| Image Circle Diameter | φ23.1mm | Back Focal Length | 14.2mm | ||||
| Operation Range | Iris | F2.6 ‐ F16.0 | Flange Back Length | 17.526mm | |||
| Focus | 0.25m ‐ Inf. | Mount | C-Mount | ||||
| Control | Iris | Manual | Filter Size | M30.5 P=0.5mm | |||
| Focus | Manual | Dimensions | φ41mm×71.5mm | ||||
| Operating Temperature | -10℃ ‐ +50℃ | Weight | 151g | ||||
Angle of View | Sensor Size | 1.4 Type | 1.2 Type | 1.1 Type | |||
| Diagonal | 19.08mm×13.03mm (φ23.1mm) | 26.1° | 14.60mm×12.63mm (φ19.3mm) | 21.9° | 14.19mm×10.38mm (φ17.6mm) | 20.0° | |
| Horizontal | 21.7° | 16.7° | 16.2° | ||||
| Vertical | 14.9° | 14.4° | 11.9° | ||||
