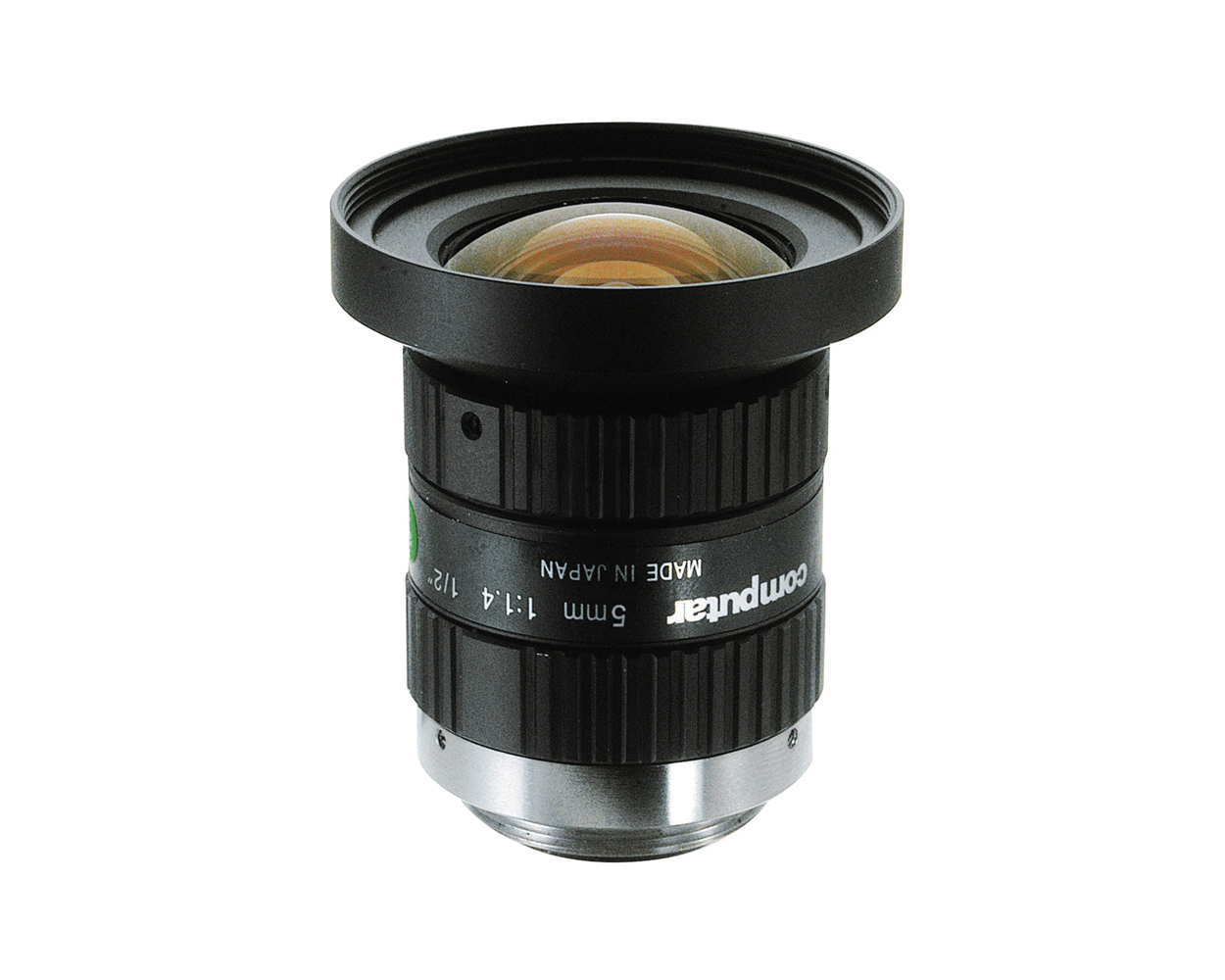

Computar - H0514-MP2 - 1.5MP, 1/2" 5mm F1.4 w/locking Iris & Focus Machine Vision Lens, 1.5MP (C-Mount)
Part number:
H0514-MP2
Price:

The 1.5MP MP2 Machine Vision lenses are engineered for maximum performance in close-up applications required in factory automation, robotics, and image processing areas. This Factory Automation (FA) lens provides high-performance optics with a variety of common focal lengths for maximum application flexibility. Ideal for Industrial Machine Vision and Intelligent Traffic Systems.



Features:

  • 1.5 megapixel
  • 1/2"
  • 5mm
  • f1.4 w/locking Iris & Focus
  • C-Mount
  • Low Distortion.
  • Assured excellent light intensity even in peripheral areas.
  • Robust design with built-in locking mechanisms for focus and iris.
Model No.H0514-MP2Effective
Lens Aperture
Frontφ27.8mm
Focal Length5mmRearφ14.8mm
Max. Aperture Ratio1:1.4Distortion1/2type-0.48%(y=4.0)
Max. Image Format6.4mm x 4.8mm(φ8mm)1/3type-2.26%(y=3.0)
Operation RangeIrisF1.4 ‐ 16CBack Focal Length10.8mm
Focus0.1m ‐ 0.9mFlange Back Length17.526mm
ControlIrisManualMountC-Mount
FocusManualFilter SizeM43 P=0.75mm
Object Dimension
at M.O.D
1/2type15.0cm x 11.1cmDimensionsφ44.5mm x  45.5mm
1/3type11.1cm x 8.3cmWeight102g
Angle of ViewD1/2 type76.7°1/3 type62.3°
H65.5°51.4°
V51.4°39.5°
Operating Temperature-10℃ ‐ +50℃
Name
Description
Size
Downloads
File
Datasheet
0.1mb
