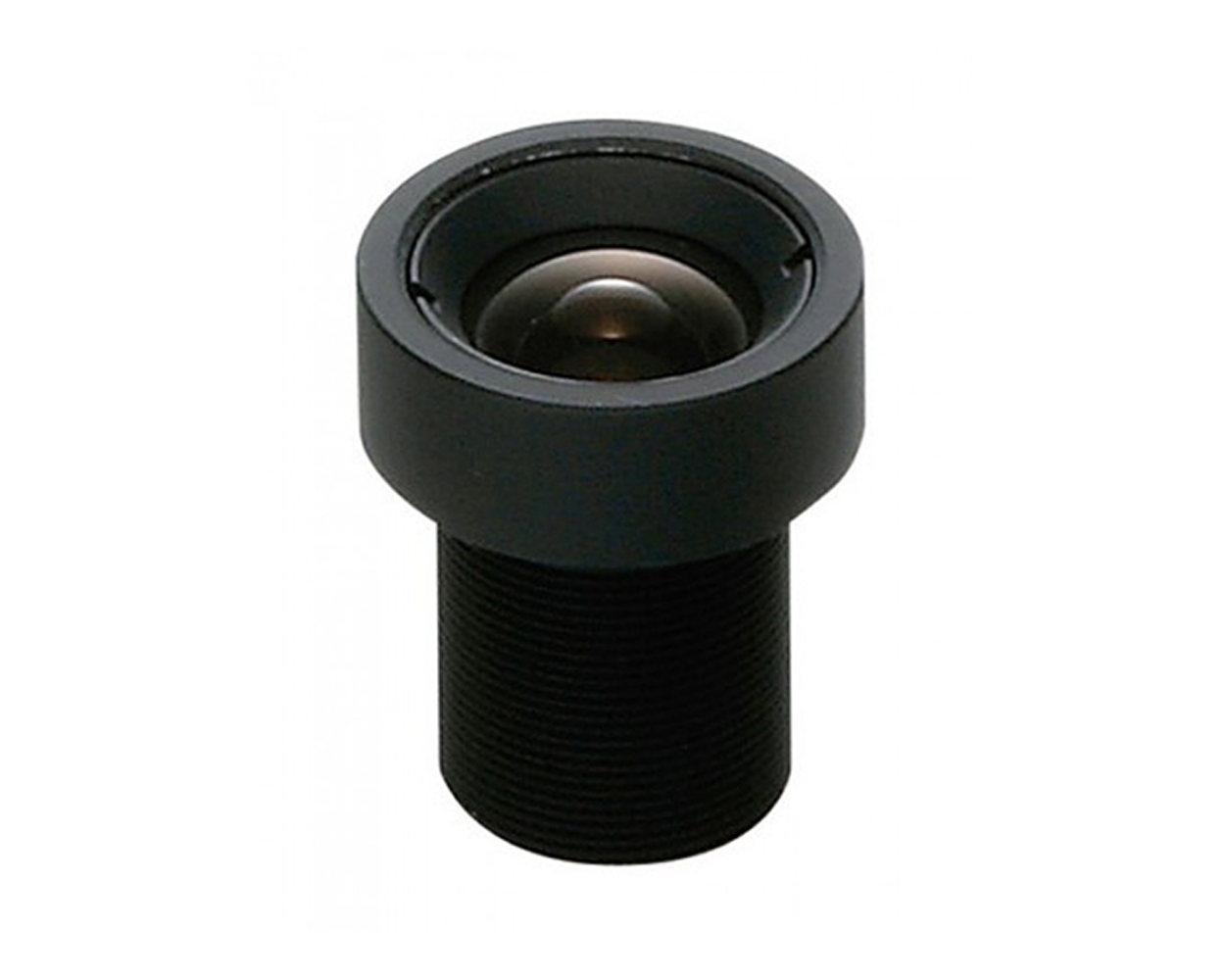

Computar - H0624KP - 1/2" 6mm F2.4 Board Lens, over 2MP (S Mount)
Part number:
H0624KP
Price:
1/2" 6mm F2.4 Board Lens, over 2MP (S Mount)
Features:
- 1/2" Format
- 6mm Fixed Lens
- Over 2MP
- 59.1° HFOV
- M12 (S Mount)
- F2.4
| Model No. | H0624KP | Effective Lens Aperture | Front | φ10.0mm | |||
| Focal Length | 6.0mm | Rear | φ8.2mm | ||||
| Max. Aperture Ratio | 1:2.4 | Distortion | -9% (y=4) | ||||
| Max. Image Format | 6.4mm x 4.8mm(φ8mm） | Back Focal Length | 6.58mm | ||||
| Operation Range | Iris | ― | Flange Back Length | ― | |||
| Focus | 0.1m ‐ lnf. | Mount | M12 P=0.5mm | ||||
| Object Dimention at M.O.D. | 1/2 type | 12.2cm x 8.9cm (φ15.7) | Dimensions | φ17.0mm x 20.5mm | |||
| 1/3 type | 8.9cm x 6.6cm (φ11.3) | Weight | 7.0g | ||||
| Coating | MgF2 Single Coat (All Surfaces λ= 510nm) | ||||||
| Angle of View | D | 1/2 type | 72.5° | 1/3 type | 55.6° | 1/4 type | 42.3° |
| H | 59.1° | 45.0° | 34.0° | ||||
| V | 45.0° | 34.0° | 25.6° | ||||
