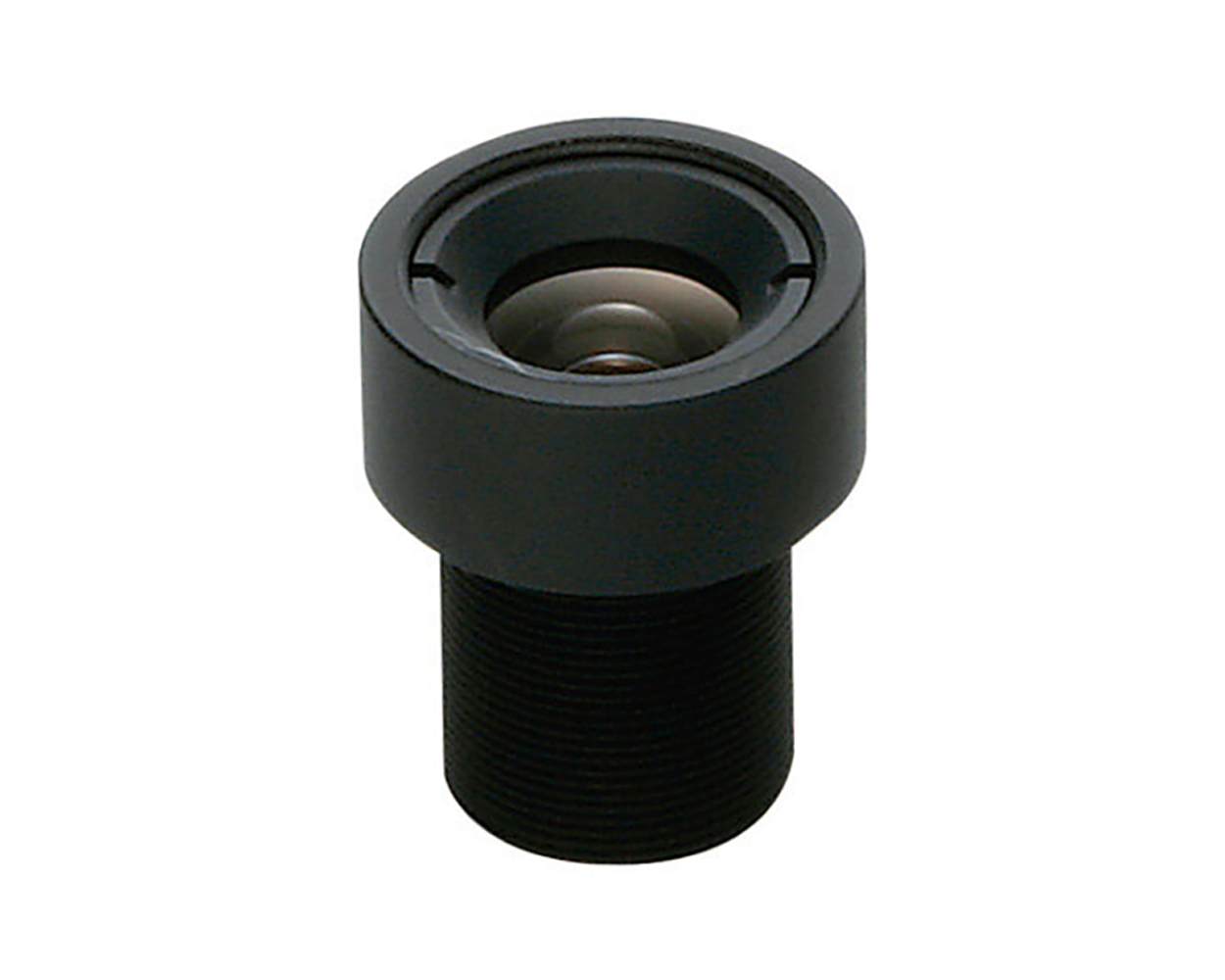

Computar - H0924KP - 1/2", 9mm, F2.4, Board Lens, over 2MP (S Mount)
Part number:
H0924KP
Price:
1/2", 9mm, F2.4, Board Lens, over 2MP (S Mount)
Features:
- 1/2" Format
- 9mm Fixed Lens
- Over 2MP
- 39.6° HFOV
- M12 (S Mount)
- F2.4
| Model No. | H0920KP | Effective Lens Aperture | Front | φ8.5mm | |||
| Focal Length | 9.0mm | Rear | φ8.2mm | ||||
| Max. Aperture Ratio | 1:2.4 | Distortion | -1.6% (y=4) | ||||
| Max. Image Format | 6.4mm x 4.8mm(φ8mm） | Back Focal Length | 6.58mm | ||||
| Operation Range | Iris | ― | Flange Back Length | ― | |||
| Focus | 0.2m ‐ lnf. | Mount | M12 P=0.5mm | ||||
| Object Dimention at M.O.D. | 1/2 type | 14.7cm x 11.0cm (φ18.4) | Dimensions | φ17.0mm x 20.7mm | |||
| 1/3 type | 11.0cm x 8.2cm (φ13.8) | Weight | 7.0g | ||||
| Coating | MgF2 Single Coat (All Surfaces λ= 510nm) | ||||||
| Angle of View | D | 1/2 type | 48.6° | 1/3 type | 37.3° | 1/4 type | 28.3° |
| H | 39.6° | 30.1° | 22.7° | ||||
| V | 30.1° | 22.7° | 17.1° | ||||
