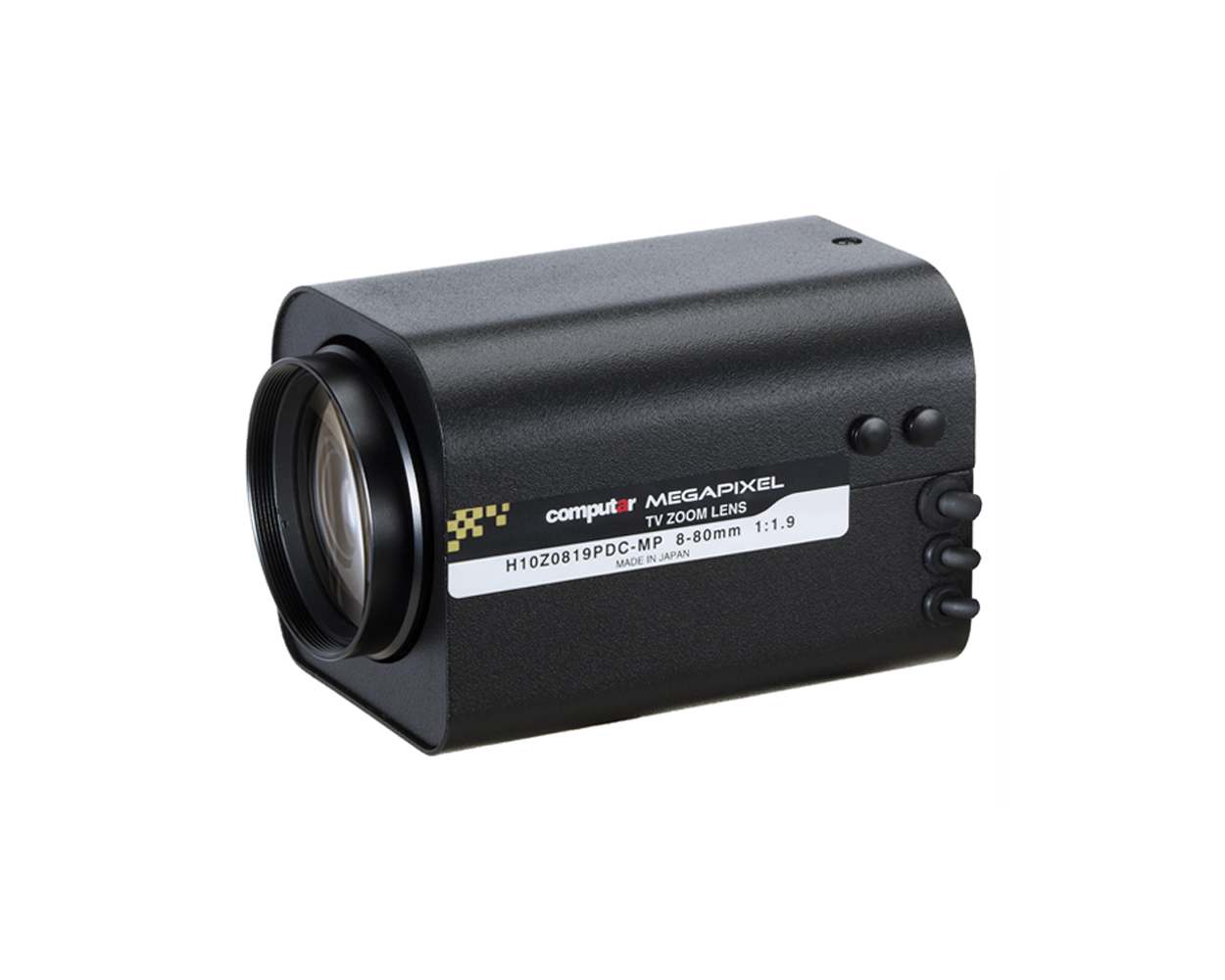

Computar - H10Z0819PDC-MP - 1/2" 8-80mm F1.9, 10X MP Auto Iris Zoom Lens w/Preset (C-Mount)
Part number:
H10Z0819PDC-MP
Price:
8-80mm f1.8 10X, DC A/I, 1.3 megapixel with preset.
Features:
- 10X Megapixel Zoom Lens
- 8-80mm
- F1.9
- DC Auto Iris
- Motorized Zoom and Focus
- Preser Zoom and Focus
- 1/2" Format, C-Mount
| Model No. | H10Z0819PDC-MP | Effective Lens Aperture | Front | φ40.0mm | |||
| Focal Length | 8mm ‐ 80mm | Rear | φ13.2mm | ||||
| Max. Aperture Ratio | 1:1.9 | Back Focal Length | 16.53mm | ||||
| Max. Image Format | 6.4mm x 4.8mm(φ8mm） | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F1.9 ‐ F1000 (W/ND Filter) | Mount | C‐Mount | |||
| Focus | 2.5m - inf. | Filter Size | M46 P=0.75mm | ||||
| Zoom | 8mm ‐ 80mm | Tripod Screw | 1/4 -20UNC | ||||
| Control | Iris | DC Auto Iris | Dimensions | W65mm x H67mm x D104.5mm | |||
| Focus | Motorized | Weight | 590g | ||||
| Zoom | Motorized | ||||||
Object Dimension at M.O.D. | 8mm | 1448 x 1951 mm | |||||
| 80mm | 137 x 187 mm | ||||||
| Angle of View | D | 1/2 type | 54.10°‐ 5.05° | 1/3 type
| 42.26°‐ 4.17° | 1/4 type
| 32.57°‐ 3.17° |
| H | 44.81°‐ 4.45° | 34.62°‐ 3.38° | 26.39°‐ 2.55° | ||||
| V | 34.62°‐ 3.38° | 26.39°‐ 2.55° | 20.00°‐ 1.92° | ||||
| Iris | Focus | Zoom | |||||
| Supply Voltage | - | DC6-12V | DC6-12V | ||||
| Current | - | 60mA or less | 60mA or less | ||||
| Response Time | - | Approx. 6.5 sec. (when 8V input) | Approx. 7 sec. (when 8V input) | ||||
| Preset Potentiometer | - | 10kΩVR | 10kΩVR | ||||
| Coil | Drive | 190Ω | |||||
| Control | 1150Ω | ||||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
