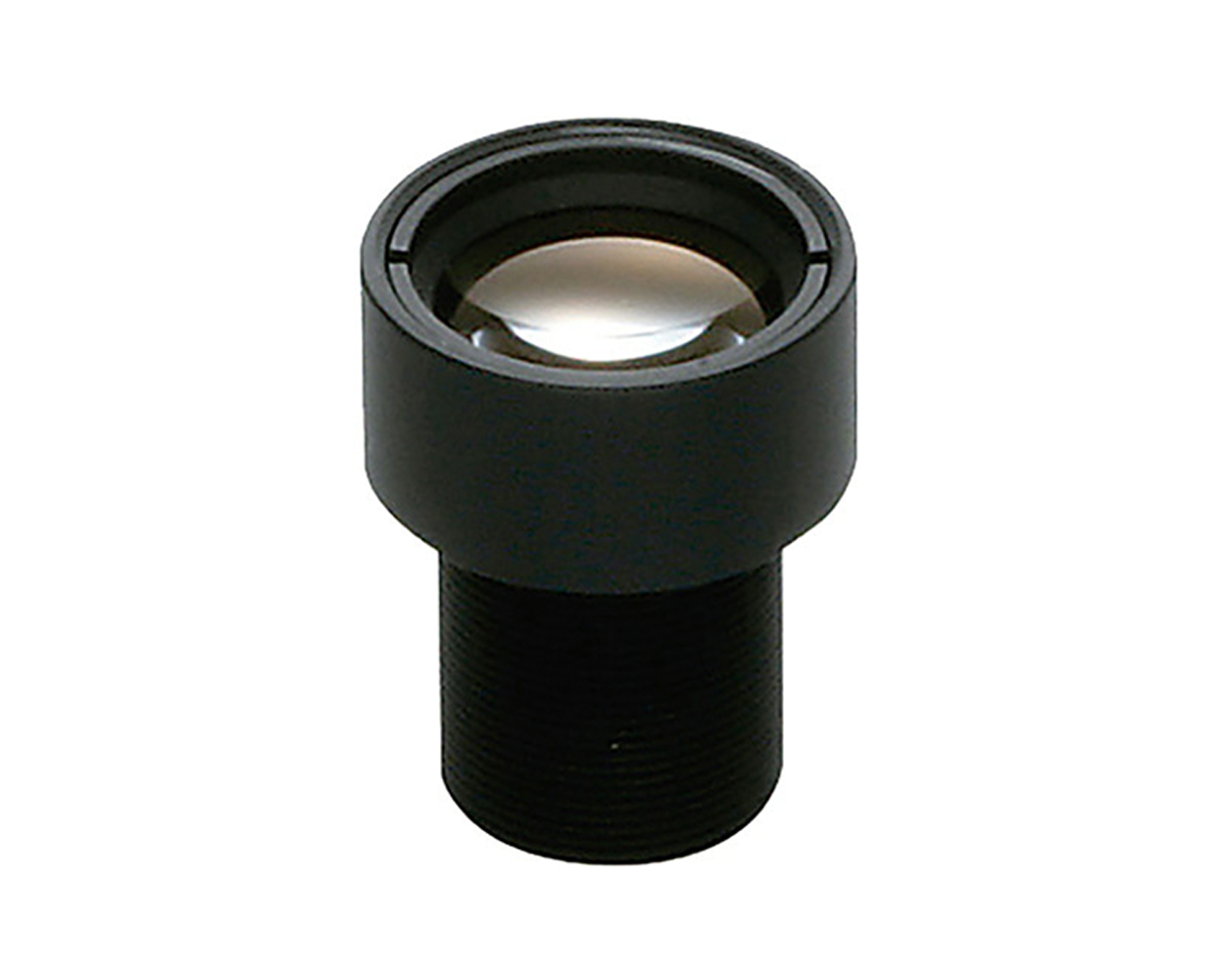

Computar - H1620KP - 1/2" 16mm F2.0 Board Lens, over 2MP (S Mount)
Part number:
H1620KP
Price:
16mm f2.0 2MP+ M12 S Mount.
Features:
- 1/2" Format
- 16mm Fixed Lens
- Over 2MP
- 22.6° HFOV
- M12 (S Mount)
- F2.0
| Model No. | H1620KP | Effective Lens Aperture | Front | φ11.8mm | |||
| Focal Length | 16.0mm | Rear | φ8.0mm | ||||
| Max. Aperture Ratio | 1:2.0 | Distortion | -0.4% (y=4) | ||||
| Max. Image Format | 6.4mm x 4.8mm(φ8mm） | Back Focal Length | 11.68mm | ||||
| Operation Range | Iris | ― | Flange Back Length | ― | |||
| Focus | 0.1m ‐ lnf. | Mount | M12 P=0.5mm | ||||
| Object Dimention at M.O.D. | 1/2 type | 4.0cm x 3.0cm (φ15.0) | Dimensions | φ17.0mm x 21.4mm | |||
| 1/3 type | 3.0cm x 2.3cm (φ3.8) | Weight | 7.0g | ||||
| Coating | MgF2 Single Coat (All Surfaces λ= 510nm) | ||||||
| Angle of View | D | 1/2 type | 27.9° | 1/3 type | 21.2° | 1/4 type | 16.0° |
| H | 22.6° | 17.0° | 12.8° | ||||
| V | 17.0° | 12.8° | 9.6° | ||||
