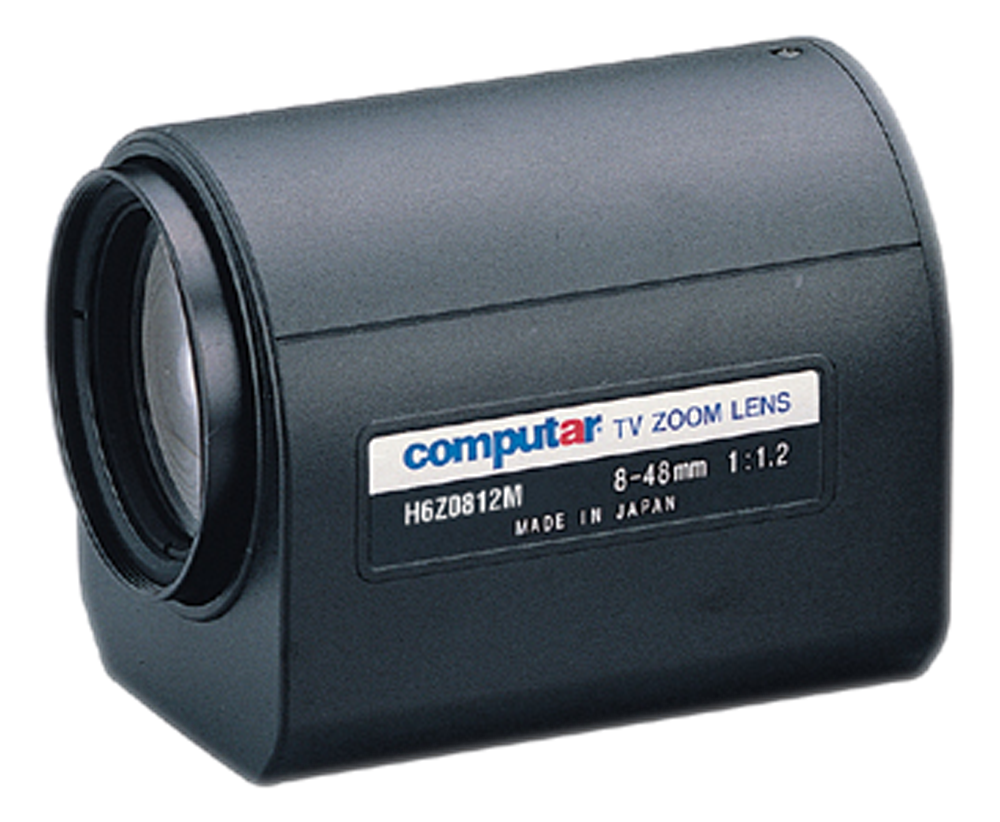

Computar - H6Z0812MP - 1/2" 8-48mm F1.2 6X Motorized Zoom Lens with 3 motors (C-Mount)
Part number:
H6Z0812MP
Price:
Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.
Features:
- 1/2"
- 8-48mm
- f1.2
- 6X Motorized Zoom
- 3 motors
- C Mount
| Model No. | H6Z0812M | Effective Lens Aperture | Front | 39.2mm | |||
| Focal Length | 8mm - 48mm | Rear | 16.6mm | ||||
| Max. Aperture Ratio | 1:1.2 | Back Focal Length | 11.4mm | ||||
| Max. Image Format | 6.4mm x 4.8mm(8mm) | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F1.2 - F16C | Mount | C-Mount | |||
| Focus | 1.2m - Inf. | Filter Size | M49 P0.75mm | ||||
| Zoom | 8mm - 48mm | Tripod Screw | 1/4 - 20UNC | ||||
| Control | Iris | Motorized | Dimensions | W66mm x H73.5mm x D97mm | |||
| Focus | Motorized | Weight | 400g | ||||
| Zoom | Motorized | ||||||
| Object Dimension at M.O.D. | 8mm | 98.4cm x 72.2cm | |||||
| 48mm | 16.8cm x 12.8cm | ||||||
Angle of View
| D | 1/2 type
| 55.8 - 9.9 | 1/3 type | 41.8 - 7.5 | 1/4 type | 31.4 - 5.6 |
| H | 44.6 - 8.0 | 33.5 - 6.1 | 25.2 - 4.6 | ||||
| V | 33.5 - 6.1 | 25.2 - 4.6 | 18.9 - 3.4 | ||||
| Iris | Focus | Zoom | |||||
| Supply Voltage | DC8V | DC8V | DC8V | ||||
| Current | 20mA or less | 30mA or less | 30mA or less | ||||
| Response Time | Approx. 2.5 sec. | Approx. 4.5 sec. | Approx. 4 sec. | ||||
| Preset Potentiometer | ---- | ---- | ---- | ||||
| Operating Temperature | 10C - 50C | ||||||
