Explosion-Proof Housings allow electrical equipment to be installed in hazardous environments containing flammable vapors, gases, or dust. The housings are designed to prevent any ignition or spark caused by the electronics inside from igniting the surrounding flammable atmosphere.
The HEX Series UL-classified explosion-proof housings are available in three (3) sizes ranging from 4- to 6.6-inches in diameters. They are designed to enclose a camera and lens to provide surveillance in hazardous environments. The unit is suitable for outdoor operation and is classified as enclosures for use in Hazardous Locations (HazLoc).
The HEX enclosure includes cable entry ports in the rear of the unit and a generic camera-mounting platform sized to accept various camera and lens combinations. They can be attached to a variety of fixed mounts or an explosion-proof Pan/Tilt base (optional). An optional sun shield is also available.
Features:
- Designed to meet ATEX / IEC Ex Certification (pending)
- For use in Hazardous Locations (HazLoc)
- Chemically-strengthened glass viewing window
- Durable aluminum construction
- IP66 / NEMA 4X for all weather conditions
- Indoor/outdoor installation
- Made in the USA
- UL/cUL Classified
- 4-inch, 6-inch, and 8-inch diameter models
- Operating temperature range (-4 ~ + 122 o F)
| Specifications | |||
| UL/cUL Classification | Class I, Div 1, Groups C,D. Class II, Div 1, Groups E,F,G. | ||
| ATEX/IECEx Certification (pending) | Ex db IIB Gb, Ex tb IIIC Db | ||
| UL 1203, Explosion-Proof and Dust-Ignition-Proof Electrical Equipment for Use in Hazardous (Classified) Locations | |||
| UL 2062, Enclosures For Use In Hazardous (Classified) Locations | |||
| Safety Standards | CSA C22.2 No. 25-17, Enclosures for use in Class II Groups E, F, and G Hazardous Locations | ||
| CSA C33.3 No. 30, Explosion-Proof Equipment | |||
| Environmental | IP66 / NEMA 4X for all weather conditions | ||
| Cable Entry | 2 x ½” NPT threaded holes | ||
| Window Construction | Tempered Borosilicate glass | ||
| Housing Construction | Aluminum with stainless steel fasteners | ||
| Finish | Powder coat paint | ||

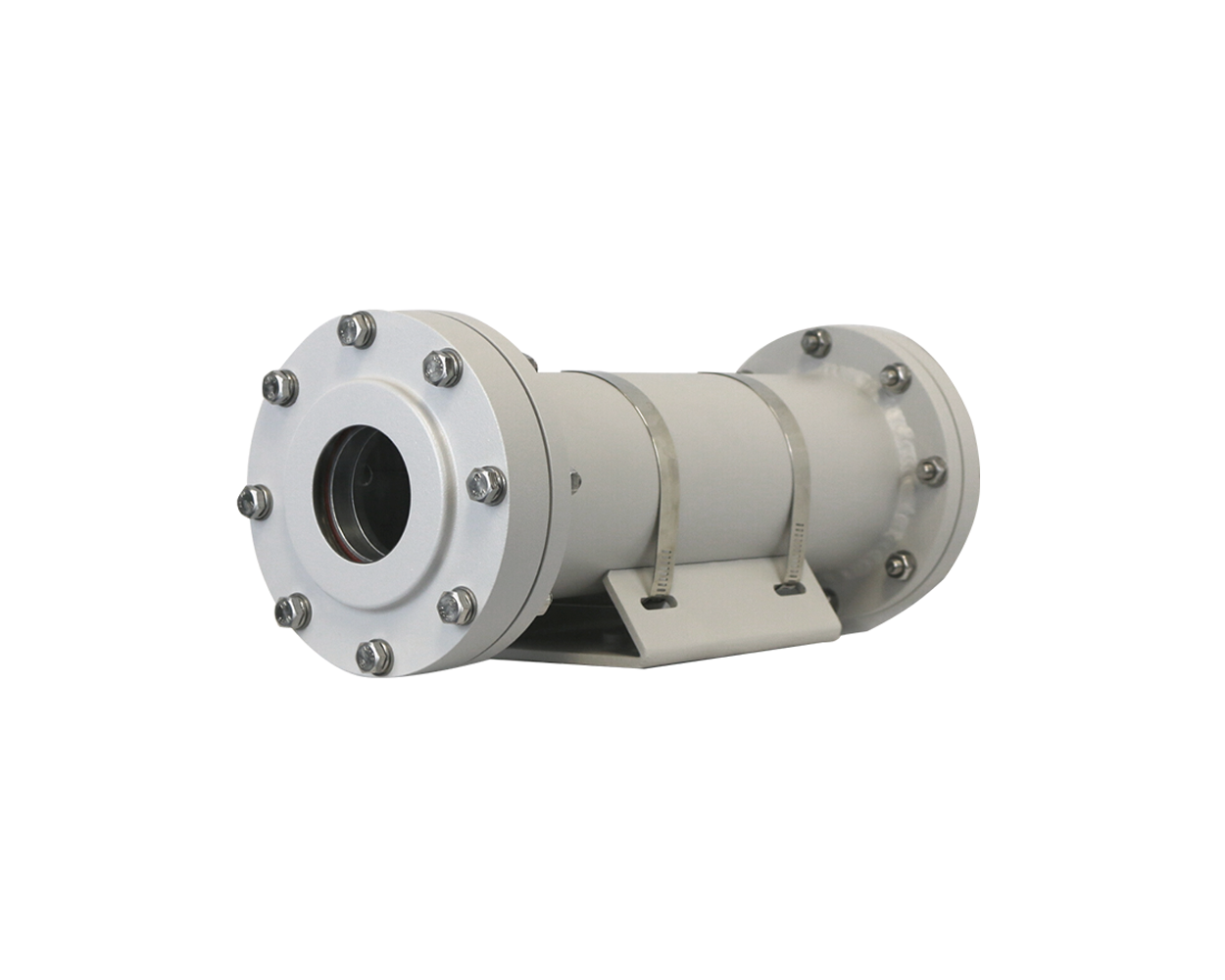

| Models | HEX-40140 HEX-50175 HEX-66205 | ||
| Dimensions W x H x L | 6.0” x 6.2” x 14.3” 152 x 157.5 x 362mm | 8.0” x 8.2” x 18.3” 203 x 208 x 465mm | 10”x 10.5”x 21.3” 254 x 267 x 541mm |
| Internal Dimensions | 12” L x ø 3.5” 304.8 L x ø 89mm | 15” L x ø 4.5” 381 x ø 114mm | 18” L x ø 6.0” 457 x ø 152mm |
| Window Area | ø 2.2” (ø 57mm) | ø 2.7” (ø 69mm) | ø 3.3” (ø 81mm) |
| Window Thickness | 0.5” (13mm) | 0.5” (13mm) | 0.5” (13mm) |
| Weight | 9.8 lbs (4.4 kg) | 20 lbs (9.1 kg) | 36.6 lbs (16.6 kg) |
| Operating Temp | -4 ~ +122˚F (-20 ~ +50˚C) | ||
