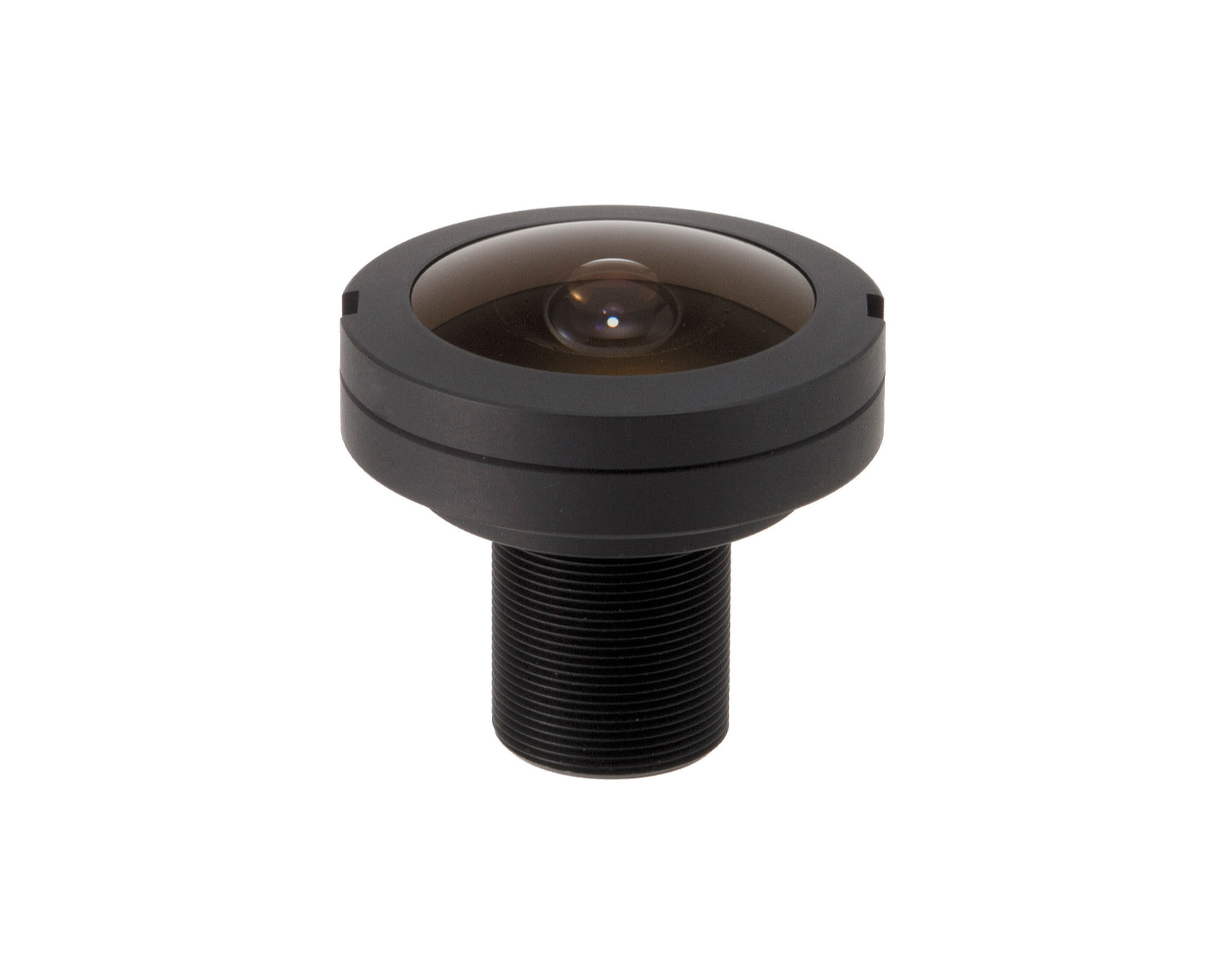

Computar - L1028KRW - 1.05mm f2.8 5MP+ M12 S Mount, Fisheye, Day/Night IR Corrective
Part number:
L1028KRW
Price:
5MP 1/2.5" 1.05mm, F2.8, Fisheye IR Board Lens with IP66 rated (S-mount)
Features:
- 1/2.5" Format
- 1.05mm Fixed Lens
- 5MP Fisheye
- Stereo Graphic Projection
- 180° HFOV
- IR Corrected
- M12 (S Mount)
- F2.8
| Model No. | L1028KRW | Effective Lens Aperture | Front | φ20mm | |||
| Focal Length | 1.05mm | Rear | φ5.4mm | ||||
| Max. Aperture Ratio | 1:2.8 | Distortion | -96.66% | ||||
| Image Size at 180° | φ4.1 | Back Focal Length | 3.62mm | ||||
| Operation Range | Iris | - | Flange Back Length | - | |||
| Focus | 0.05m ‐ Inf. | Mount | M12 P=0.5mm | ||||
| Object Dimention at M.O.D. | 1/2.5 type | - | Dimensions | φ27mm x 26.02mm | |||
| 1/3 type | - | Weight | 17.4g | ||||
| Coating | MgF2 Single Coat (All Surfaces λ= 510nm) | ||||||
| Angle of View (Peripheral light amount 50%) | D | 1/2.5 type Fisheye | - | 1/3 type | - | 1/4 type | 180.0° |
| H | - | 180.0° | 163.2° | ||||
| V | 180.0° | 163.2° | 130.2° | ||||
