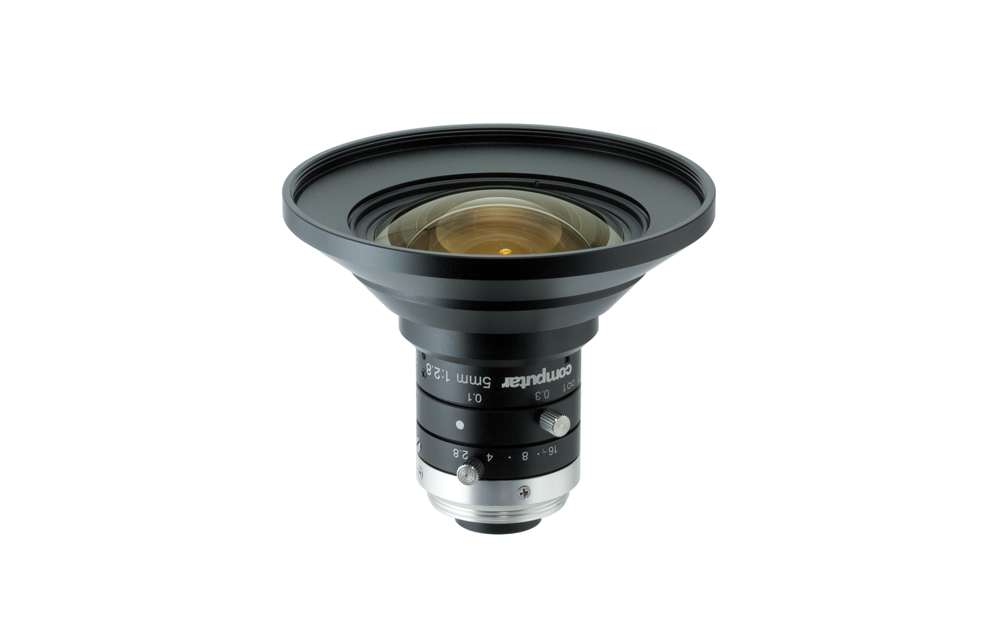

Computar - M0528-MPW3 - 6MP 2/3" 5mm F2.8, 2.74um, Ultra Low Distortion Machine Vision Lens w/floating Systems (C-Mount)
Part number:
M0528-MPW3
Price:
The MPW3 Series C-mount lenses are lightweight and have a very compact design. Important factors such as very low distortion, reliable illumination right up to the edge, and short working distances have been retained. They are suitable for sensors from 1/2.5“ to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
Features:
- 2/3” Format
- 6 Megapixel
- 5mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 5mm, 8mm, 12mm, 16mm, 35mm, 50mm, and 75mm
| Model No. | M0528-MPW3 | Effective Lens Aperture | Front | φ45.5mm | |||
| Focal Length | 5mm | Rear | φ 9.9mm | ||||
| Max. Aperture Ratio | 1:2.8 | Distortion | 2/3 type(Y=5.5mm) | 0.03% | |||
| Max. Image Format | 8.8mm x 6.6mm(φ11mm） | 1/1.8 type(Y=4.5mm) | -2.14% | ||||
| Operation Range | Iris | F2.8 ‐ 16.0 | 1/2.5 type(Y=3.55mm) | -2.72% | |||
| Focus | 0.1m - inf. | Back Focal Length | 9.2mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C‐Mount | ||||
Object Dimension at M.O.D. | 2/3 Type | 216.0 x 160.4 mm | Filter Size | M72 P=0.75mm | |||
| 1/1.8 Type | 175.6 x 130.0 mm | Dimensions | φ75mm x 54mm | ||||
| 1/2.5 Type | 137.6 x 102.6 mm | Weight | 163g | ||||
| Angle of View | D | 2/3 type | 94.6° | 1/1.8 type
| 83.8° | 1/2.5 type
| 71.4° |
| H | 83.2° | 71.6° | 59.8° | ||||
| V | 67.5° | 58.3° | 46.6° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
