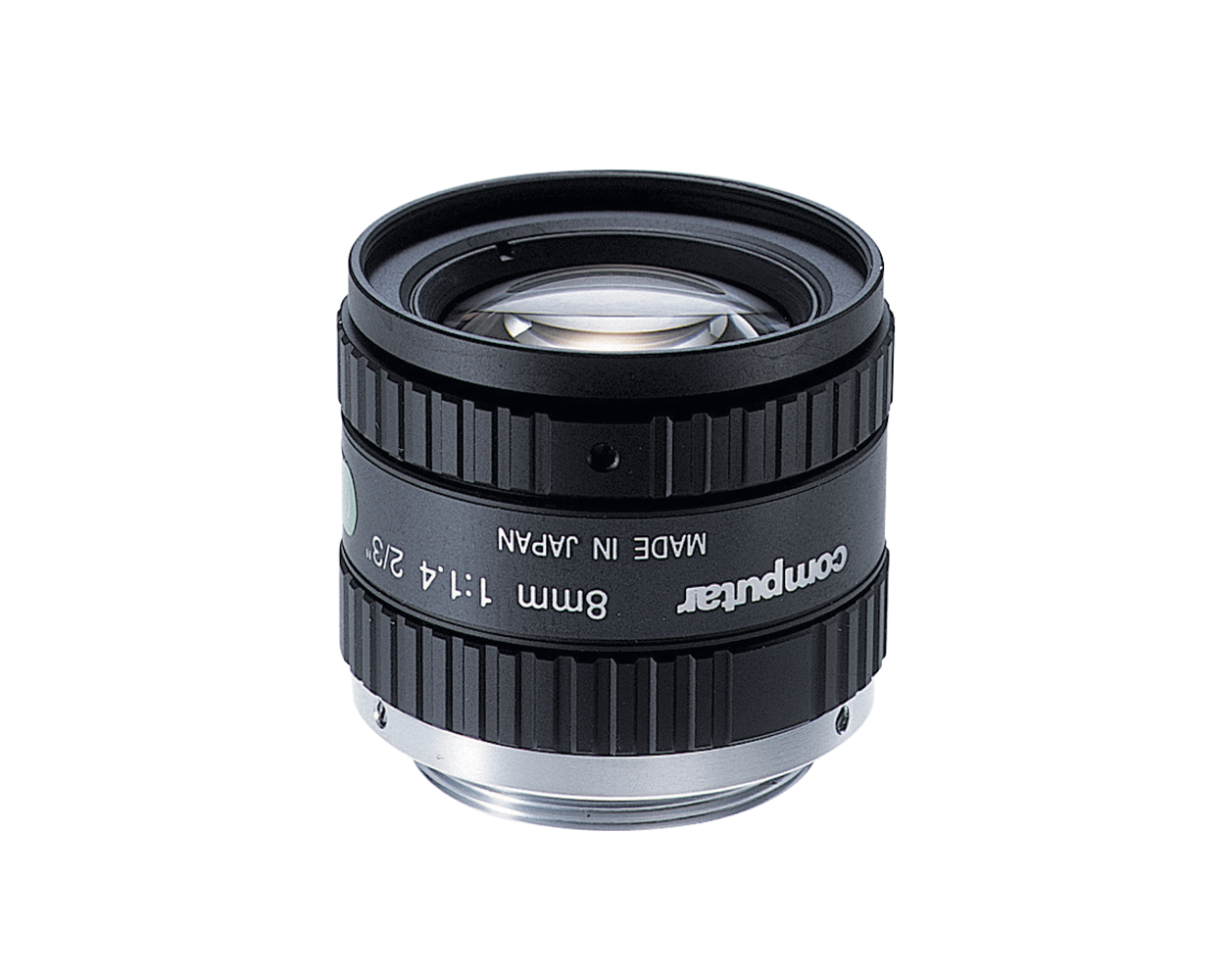

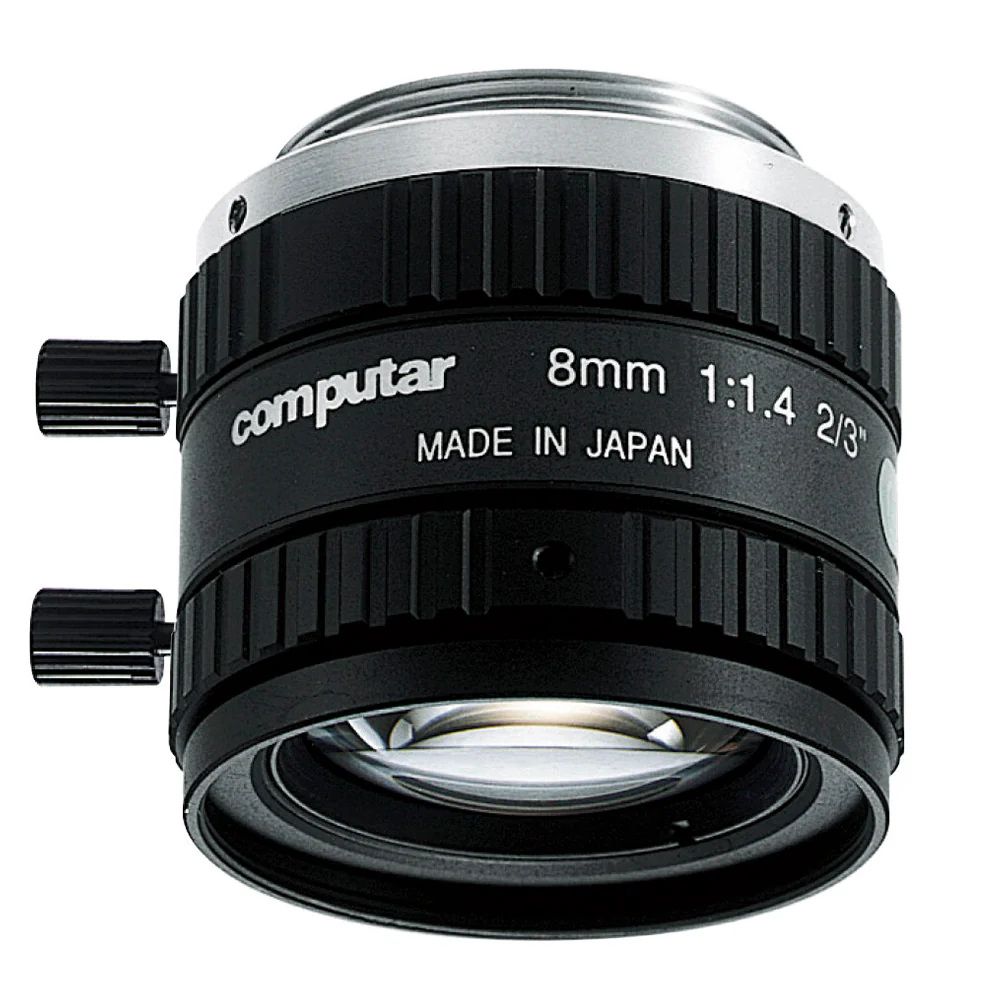

Computar - M0814-MP2 - 1.5 MP 2/3" 8mm F1.4 w/locking Iris & Focus Machine Vision Lens (C-Mount)
Part number:
M0814-MP2
Price:

The 1.5MP MP2 Machine Vision lenses are engineered for maximum performance in close-up applications required in factory automation, robotics, and image processing areas.



This Factory Automation (FA) lens provides high-performance optics with a variety of common focal lengths for maximum application flexibility. Ideal for Industrial Machine Vision and Intelligent Traffic Systems.



Features:

  • 1.5 megapixel
  • Captures full resolution of megapixel cameras
  • Low distortion
  • Assured excellent light intensity even in peripheral areas
  • High contrast and sharp picture in all areas of the screen
  • Compact design

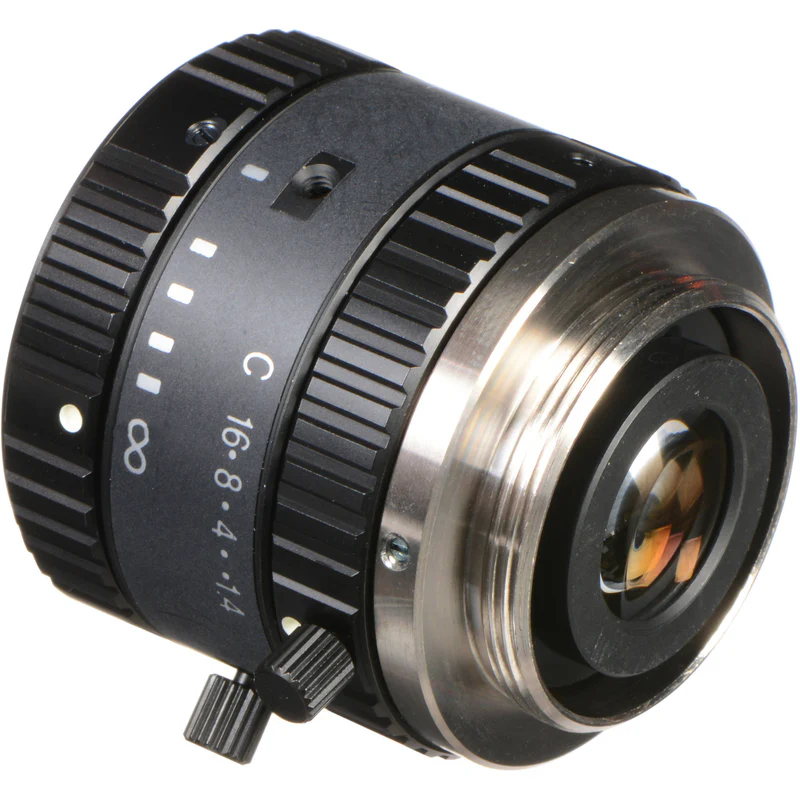

  • Locking set screws for focus and iris
Model No.M0814-MP2Effective
Lens Aperture
Frontg  21.5mm
Focal Length8mmRearg  12.0mm
Max. Aperture Ratio1:1.4Distotion2/3type-0.1B(v' 5.5)
Max. Image Format8.8mm x 6.6mm( $ 11mm)1/2type-1.1B(v' 4.0)
Operation RangeIrisF1.4  -   F16CBack Focal Length13.1mm
Focus0.1m  - Inf.Flange Back Length17.526mm
GontrolIrisManualMountC-Mount
FocusManualFilter SizeM30.5 P=0.5mm
Object Dimension
at M.O.D
2/3 type12.1cm  x 9.0cmDimensions$ 33.5mm x  28.2mm
1/2 type8.7cm x 6.5cmWeight62.6g
Angle of ViewD2/3 tvpe67.1°1/2 type51.9°
H56.3°42.5°
V43.7°32.4°
Operating Temperature-10°C  - +50°C
Name
Description
Size
Downloads
File
Datasheet
0.6mb
