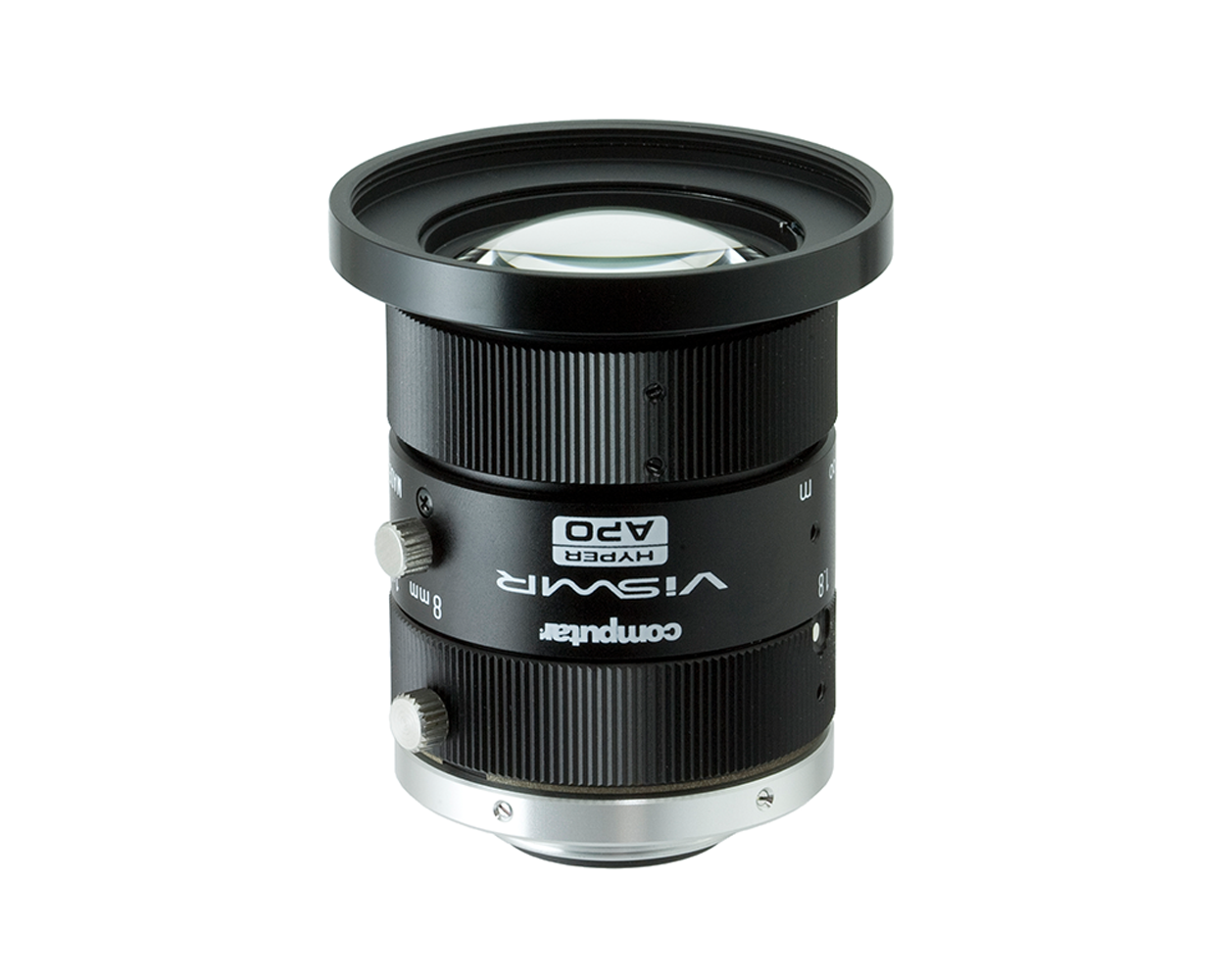

Computar - M0818-APVSW - 2/3", 5MP, 8mm, F1.8, Visible-Short Wave IR Lens, for Broadband use (C-Mount)
Part number:
M0818-APVSW
Price:
With ViSWIR HYPER-APO, it is unnecessary to adjust focus for different wavelengths. By adopting an APO floating design*, the focus shift is reduced at any wavelength and any working distance. This function makes the series ideal for multiple applications, including machine vision, UAV, and remote sensing.
Features:
- 5MP
- 8mm, F1.8
- Fully corrected focus shift in visible and SWIR range (400nm-1,700nm
- Visible + SWIR sensors
- Unique coating technology delivers high transmission from 400nm to 1,700nm.
- High-resolution, the low-distortion design offers Megapixel clarity in the hyperspectral application.
- Designed around the popular φ8.20mm image circle format
- The industry’s most compact form factor. It fits in most applications
- Available in 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm
| Model No. | M0818-APVSW | Effective Lens Aperture | Front | φ28.4mm | |||
| Focal Length | 8mm | Rear | φ15.5mm | ||||
| Max. Aperture Ratio | 1:1.8 | Distortion(inf) | 2/3 Type | 0.4% | |||
| Wavelength Range | 400nm - 1700nm | 1/2 Type | -0.4% | ||||
| Max. Image Format | 8.8mm x 6.6mm(φ11mm) | Back Focal Length | 11.5mm | ||||
| Operation Range | Iris | F1.8 ‐ F16.0 | Flange Back Length | 17.526mm | |||
| Focus | 0.1m ‐ Inf. | Mount | C-Mount | ||||
| Control | Iris | Manual | Filter Size | M46 P=0.75mm | |||
| Focus | Manual | Dimensions | φ49mm×54.7mm | ||||
| Operating Temperature | -10℃ ‐ +50℃ | Weight | 163g | ||||
Angle of View
| D | IMX990 (SXGA) 6.40mm x 5.12mm (φ8.20mm) | 53.2° | IMX991 (VGA) 3.20mm x 2.56mm (φ4.10mm) | 28.1° | 2/3 Type 8.80mm x 6.60mm (φ11mm) | 67.3° |
| H | 42.7° | 22.1° | 56.4° | ||||
| V | 34.7° | 17.7° | 43.9° | ||||
