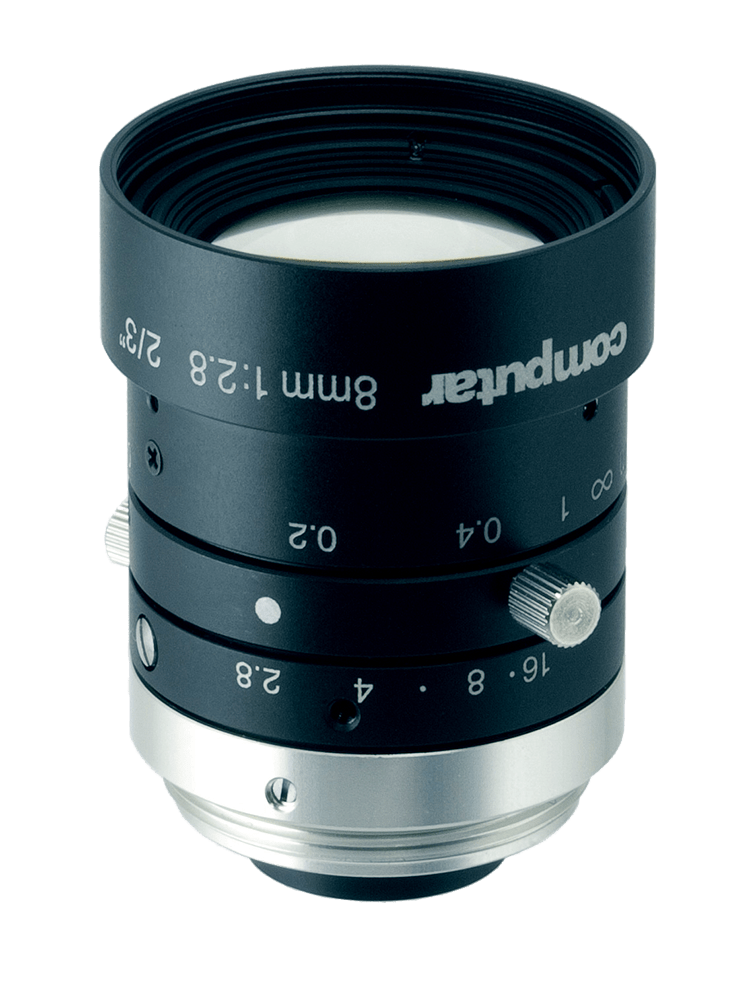

Computar - M0828-MPW3 - 6MP 2/3", 8mm F2.8, 2.74um, Ultra Low Distortion Machine Vision Lens with floating systems (C-Mount)
Part number:
M0828-MPW3
Price:
The MPW3 Series C-mount lenses are lightweight and have a very compact design. Important factors such as very low distortion, reliable illumination right up to the edge, and short working distances have been retained. They are suitable for sensors from 1/2.5“ to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
Features:
- 2/3” Format
- 6 Megapixel
- 8mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 5mm, 8mm, 12mm, 16mm, 35mm, 50mm, and 75mm
| Model No. | M0828-MPW3 | Effective | Front | φ21.2mm | |||
| Focal Length | 8mm | Lens Aperture | Rear | φ10.1mm | |||
| Max. Aperture Ratio | 1:2.8 | Distortion | 2/3 type(Y=5.5mm) | -1.80% | |||
| Max. Image Format | 8.8mm x 6.6mm(φ11mm） | 1/1.8 type(Y=4.5mm) | -1.68% | ||||
| Operation Range | Iris | F2.8 ‐ 16.0 | 1/2.5 type(Y=3.55mm) | -1.28% | |||
| Focus | 0.1m - inf. | Back Focal Length | 9.2mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C‐Mount | ||||
| Object Dimension at M.O.D. | 2/3 Type | 122.2 x 90.8 mm | Filter Size | M30.5 P=0.5mm | |||
| 1/1.8 Type | 98.2 x 75.8 mm | Dimensions | φ32mm x 35.5mm | ||||
| 1/2.5 Type | 65.6 x 49.0 mm | Weight | 58g | ||||
| Angle of View | D | 2/3 type | 68.5° | 1/1.8 type | 57.7° | 1/2.5 type | 47.2° |
| H | 57.0° | 47.3° | 38.5° | ||||
| V | 44.2° | 37.5° | 29.4° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
