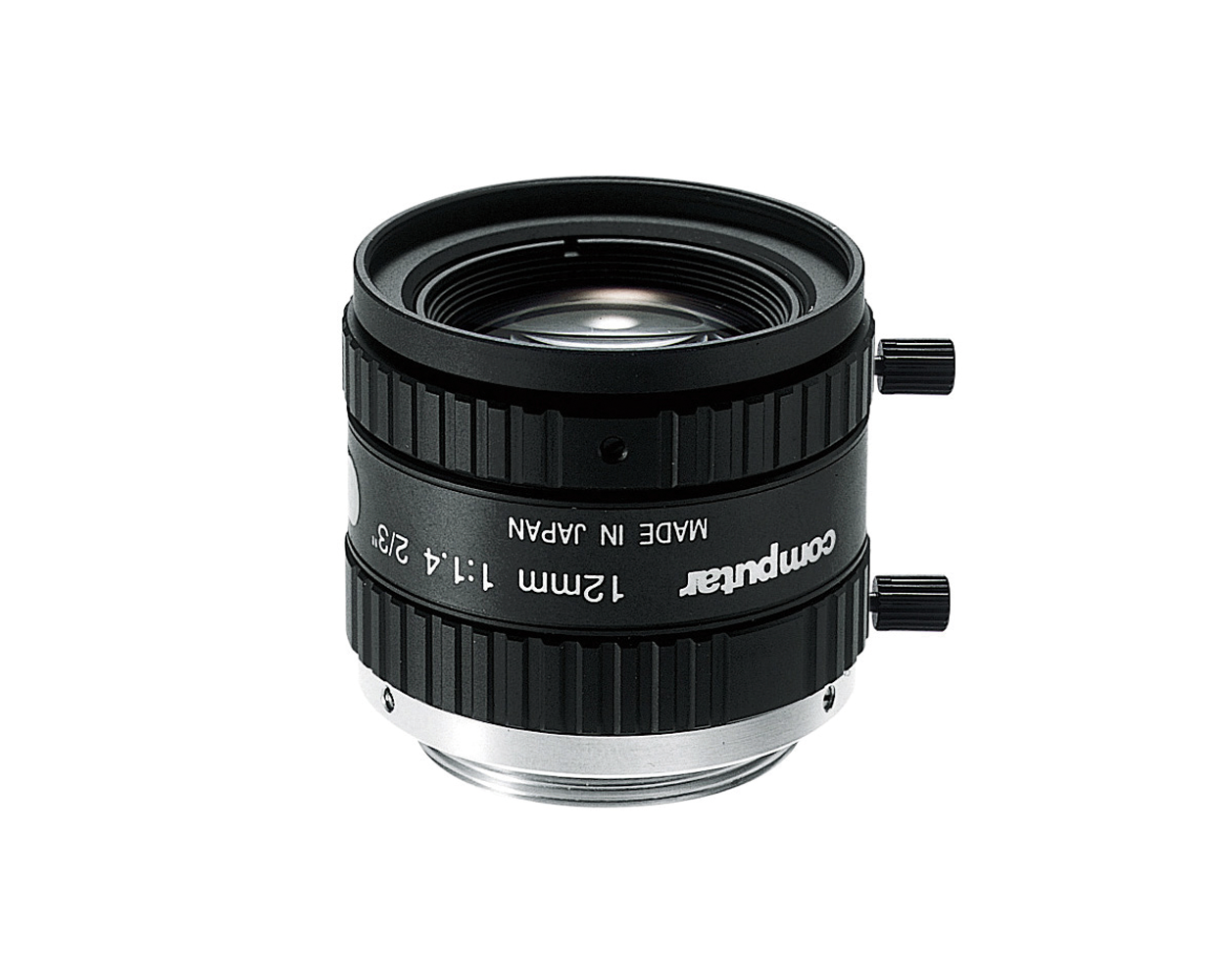

Computar - M1214-MP2 - 1.5MP, 2/3" 12mm F1.4 w/locking Iris & Focus, Machine Vision Lens (C-Mount)
Part number:
M1214-MP2
Price:

The 1.5MP MP2 Machine Vision lenses are engineered for maximum performance in close-up applications required in factory automation, robotics, and image processing areas. This Factory Automation (FA) lens provides high-performance optics with a variety of common focal lengths for maximum application flexibility. Ideal for Industrial Machine Vision and Intelligent Traffic Systems.



Features:

  • 1.5 MP
  • 2/3"
  • 12mm f1.4
  • Captures full resolution of megapixel cameras
  • Low distortion
  • Assured excellent light intensity even in peripheral areas
  • High contrast and sharp picture in all areas of the screen
  • Compact design
  • Locking set screws for focus and iris
Model No.M1214—MP2Effective
Lens Aperture
Frontg  21.0mm
Focal Length12mmRearg  13.0mm
Max. Aperture  Ratio1:1.4Distortion2/3type—0.1B(y=5.5)
Max. Image  Format8.8mm  x   6.6mm( $  11 mm)1/2type—0.35a(v'4.0)
Operation  RangeIrisF1.4  -   F16CBack Focal  Length13.1mm
Focus0.15m  - Inf.Flange  Back Length17.526mm
GontrolIrisManualMountC—Mount
FocusManualFilter  SizeM30.5 P=0.5mm
Object Dimension
at M.O.D
2/3  type12.1cm  x 9.0cmDimensions$  33.5mm   x   28.2mm
1/2 type8.8cm x 6.5cmWeight61.9g
Angle  of ViewD2/3  tvpe49.2°1/2   type37.0°
H40.4°30.0°
V30.8°22.7°
Operating  Temperature—10°C  -   +50°C
