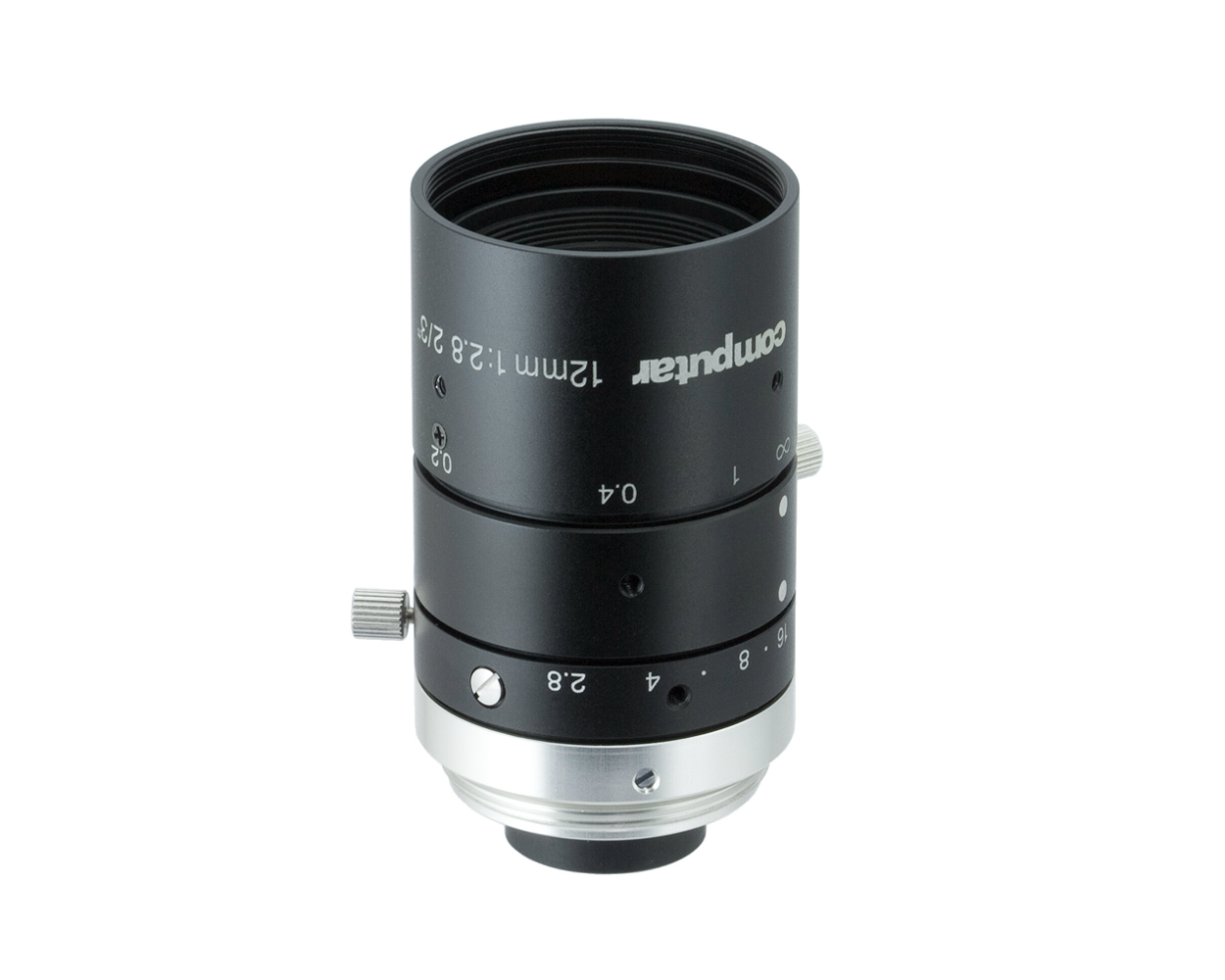

Computar - M1228-MPW3 - 6MP 2/3" 12mm, F2.8, 5MP Ultra Low Distortion w/floating systems (C-mount)
Part number:
M1228-MPW3
Price:
The MPW3 Series C-mount lenses are lightweight and have a very compact design. Important factors such as very low distortion, reliable illumination right up to the edge, and short working distances have been retained. They are suitable for sensors from 1/2.5“ to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
Features
- 2/3” Format
- 6 Megapixel
- 12mm Fixed
- F2.8
- C-mount
- Full HD Format
- Manual Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 5mm, 8mm, 12mm, 16mm, 35mm, 50mm, and 75mm
| Model No. | M1228-MPW3 | Effective | Front | φ18.8mm | |||
| Focal Length | 12mm | Lens Aperture | Rear | φ10.3mm | |||
| Max. Aperture Ratio | 1:2.8 | Distortion | 2/3 type(Y=5.5mm) | -0.10% | |||
| Max. Image Format | 8.8mm x 6.6mm(φ11mm） | 1/1.8 type(Y=4.5mm) | 0.04% | ||||
| Operation Range | Iris | F2.8 ‐ 16.0 | 1/2.5 type(Y=3.55mm) | 0.00% * | |||
| Focus | 0.1m - inf. | Back Focal Length | 9.2mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C‐Mount | ||||
| Object Dimension at M.O.D. | 2/3 Type | 83.0 x 62.0 mm | Filter Size | M27 P=0.5mm | |||
| 1/1.8 Type | 67.7 x 50.6 mm | Dimensions | φ29mm x 43.5mm | ||||
| 1/2.5 Type | 53.4 x 40.2 mm | Weight | 60g | ||||
| Angle of View | D | 2/3 type | 49.3° | 1/1.8 type | 40.8° | 1/2.5 type | 33.0° |
| H | 40.3° | 33.1° | 26.7° | ||||
| V | 30.8° | 26.0° | 20.3° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
