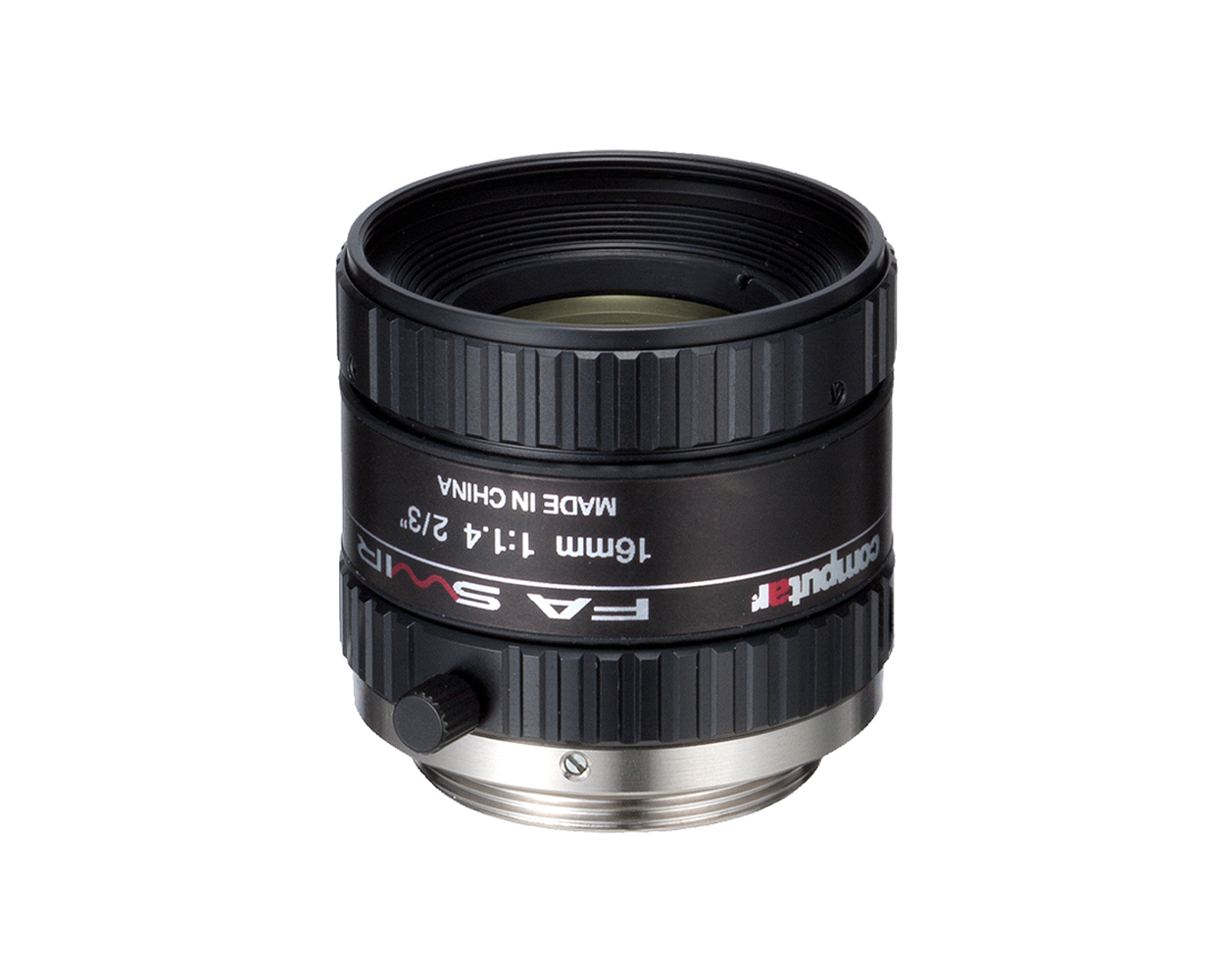

Computar - M1614-SW - 2/3" 16mm, F1.4, C- Mount, Manual Iris (C-mount)
Part number:
M1614-SW
Price:
SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.
Features:
- Unique coating technology delivers high transmission from 800nm-1,700nm
- High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
- Also available in 25mm, 35mm and 50mm
- Designed around the popular φ12.3mm image circle format
- The industry’s most compact form factor. Fits in most applications
| Model No. | M1614-SW | Effective Lens Aperture | Front | φ18.5mm | |||
| Focal Length | 16mm | Rear | φ13.2mm | ||||
| Max. Aperture Ratio | 1:1.4 | Distortion | 2/3type | -0.5% (y=5.5) | |||
| Max. Image Circle | φ12.3mm | 1/2type | -0.5% (y=4.0) | ||||
| Operation Range | Iris | F1.4‐ F16C | Back Focal Length | 13.3mm | |||
| Focus | 0.3m ‐ Inf. | Flange Back Length | 17.526mm | ||||
| Control | Iris | Manual | Mount | C-Mount | |||
| Focus | Manual | Filter Size | M30.5 P=0.5mm | ||||
| Object Dimension at M.O.D | 2/3 type | 17.0cm x 12.7cm | Dimensions | φ33.5mm x 28.2mm | |||
| 1/2 type | 12.3cm x 9.2cm | Weight | 60g | ||||
Angle of View
| D | 2/3 type H8.80mm x V6.60mm | 37.7° | 1/2 type H6.40mm x V4.80mm | 27.9° | ||
| H | 30.6° | 22.5° | |||||
| V | 23.2° | 16.9° | |||||
Angle of View ( InGaAs Detector) | D | 640 x 512 （Pixel Pitch ： 15μm） H9.60mm x V7.68mm | 41.7° | 320 x 256 （Pixel Pitch ： 25μm） 8.00mm x V6.40mm | 35.3° | 320 x 256 （Pixel Pitch ： 20μm） H6.40mm x V5.12mm | 28.6° |
| H | 33.2° | 27.9° | 22.5° | ||||
| V | 26.8° | 22.5° | 18.0° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
Name
Description
Size
Downloads
File
Specification
0.1mb
