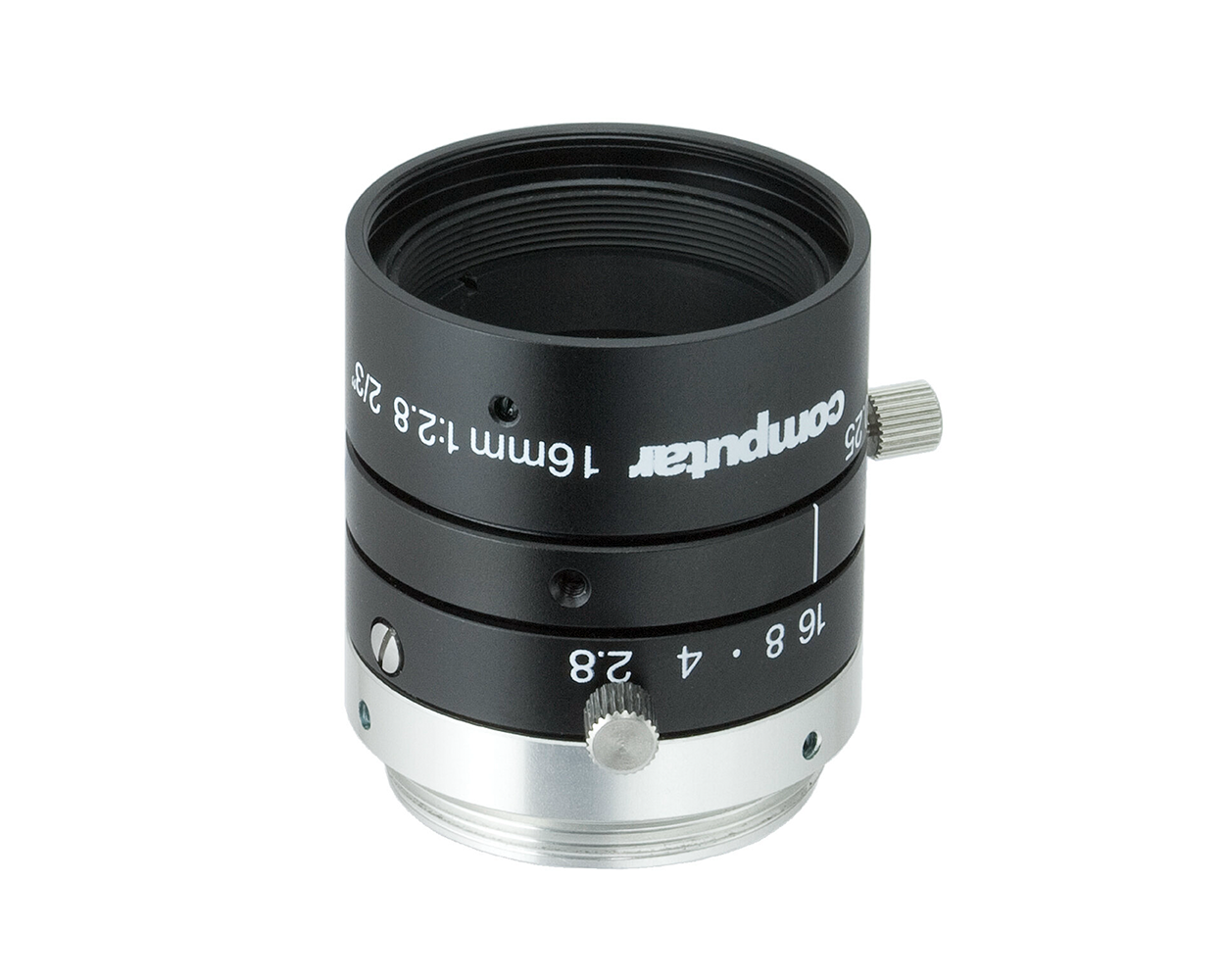

Computar - M1628-MPW3 - 6MP 2/3", 16mm F2.8, 2.74um, Ultra Low Distortion w/floating systems (C-mount)
Part number:
M1628-MPW3
Price:
The MPW3 Series C-mount lenses are lightweight and have a very compact design. Important factors such as very low distortion, reliable illumination right up to the edge, and short working distances have been retained. They are suitable for sensors from 1/2.5“ to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
Features:
- 2/3" Format
- 6 Megapixel
- 16mm Fixed
- F2.8
- C-mount
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 5mm, 8mm, 12mm, 16mm, 35mm, 50mm, and 75mm
| Model No. | M1628-MPW3 | Effective | Front | φ14.1mm | |||
| Focal Length | 16mm | Lens Aperture | Rear | φ 9.1mm | |||
| Max. Aperture Ratio | 1:2.8 | Distortion(INF) | 2/3 type(Y=5.5mm) | 0.47% | |||
| Max. Image Format | 8.8mm x 6.6mm(φ11.0mm） | 1/1.8 type(Y=4.5mm) | 0.15% | ||||
| Operation Range | Iris | F2.8 ‐ 16.0 | 1/2.5 type(Y=3.55mm) | 0.03% | |||
| Focus | 0.25m - inf. | Back Focal Length | 10.3mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C‐Mount | ||||
| Object Dimension at M.O.D. | 2/3 Type | 140.6 x 105.4 mm | Filter Size | M27 P=0.5mm | |||
| 1/1.8 Type | 115.0 x 86.2 mm | Dimensions | φ29mm x 29mm | ||||
| 1/2.5 Type | 91.0 x 68.6 mm | Weight | 37g | ||||
| Angle of View | D | 2/3 type | 37.8° | 1/1.8 type | 31.4° | 1/2.5 type | 25.0° |
| H | 30.7° | 25.3° | 20.2° | ||||
| V | 23.3° | 19.2° | 15.3° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
