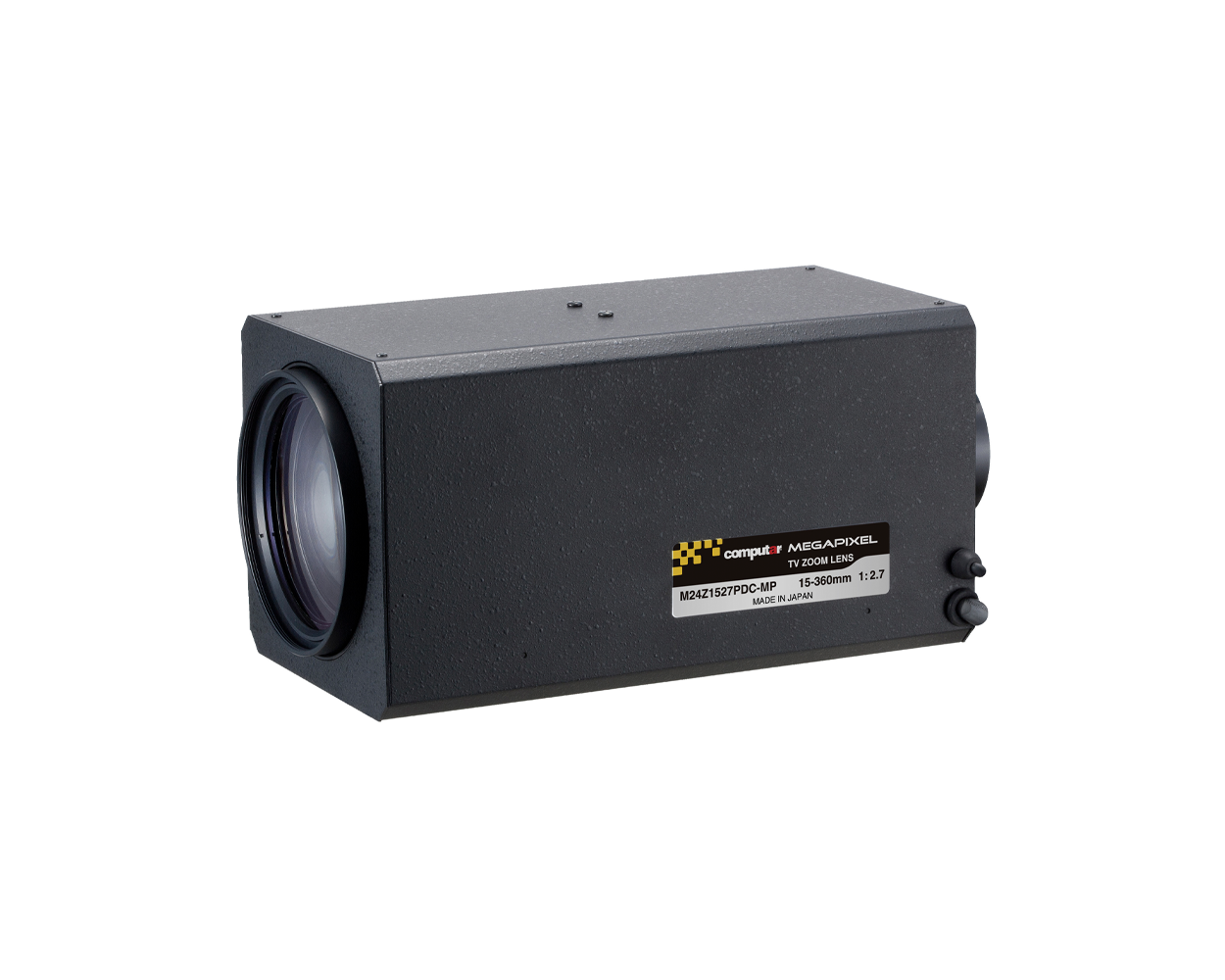

Computar - M24Z1527PDC-MP - 2/3" 15-360mm F2.7 24X, DC A/I and Preset (C-mount)
Part number:
M24Z1527PDC-MP
Price:
15-360mm f2.7 24X, DC A/I and Preset.
Features:
- Over 2 Megapixel
- 27X Zoom Lens
- 15-360mm
- F2.7
- DC Auto Iris
- Motorized Zoom and Focus
- Preset Zoom and Focus
- 2/3" Format, C-Mount
| Model No. | M24Z1527PDC-MP | Effective Lens Aperture | Front | φ66mm | |||
| Focal Length | 15mm ‐ 360mm | Rear | φ13.8mm | ||||
| Max. Aperture Ratio | 1:2.7 | Back Focal Length | 19.3mm | ||||
| Max. Image Circle | φ11mm | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F2.7 ‐ F500C | Mount | C‐Mount | |||
| Focus | 5m ‐ lnf. | Filter Size | M77 P=1mm | ||||
| Zoom | 15mm ‐ 360mm | Tripod Screw | 1/4 -20UNC | ||||
| Control | Iris | DC Auto Iris | Dimensions | W101mm x H102.4mm x D221.1mm | |||
| Focus | Motorized | Weight | 2180g | ||||
| Zoom | Motorized | ||||||
| Angle of View | D | 2/3 type | 40.2°‐ 1.8° | 1/1.8 type | 32.8°‐ 1.5° | 1/2 type | 29.4°‐ 1.3° |
| H | 32.3°‐ 1.4° | 26.3°‐ 1.2° | 23.6°‐ 1.0° | ||||
| V | 24.4°‐ 1.1° | 19.8°‐ 0.9° | 17.8°‐ 0.8° | ||||
| Iris | Focus | Zoom | |||||
| Supply Voltage | DC6V | DC6V | |||||
| Current | 90mA or less | 90mA or less | |||||
| Response Time | Approx. 6.5 sec. | Approx. 6.5 sec. | |||||
| Preset Potentiometer | 5kΩVR | 5kΩVR | |||||
| Coil | Drive | 190Ω | |||||
| Control | 1000Ω | ||||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
