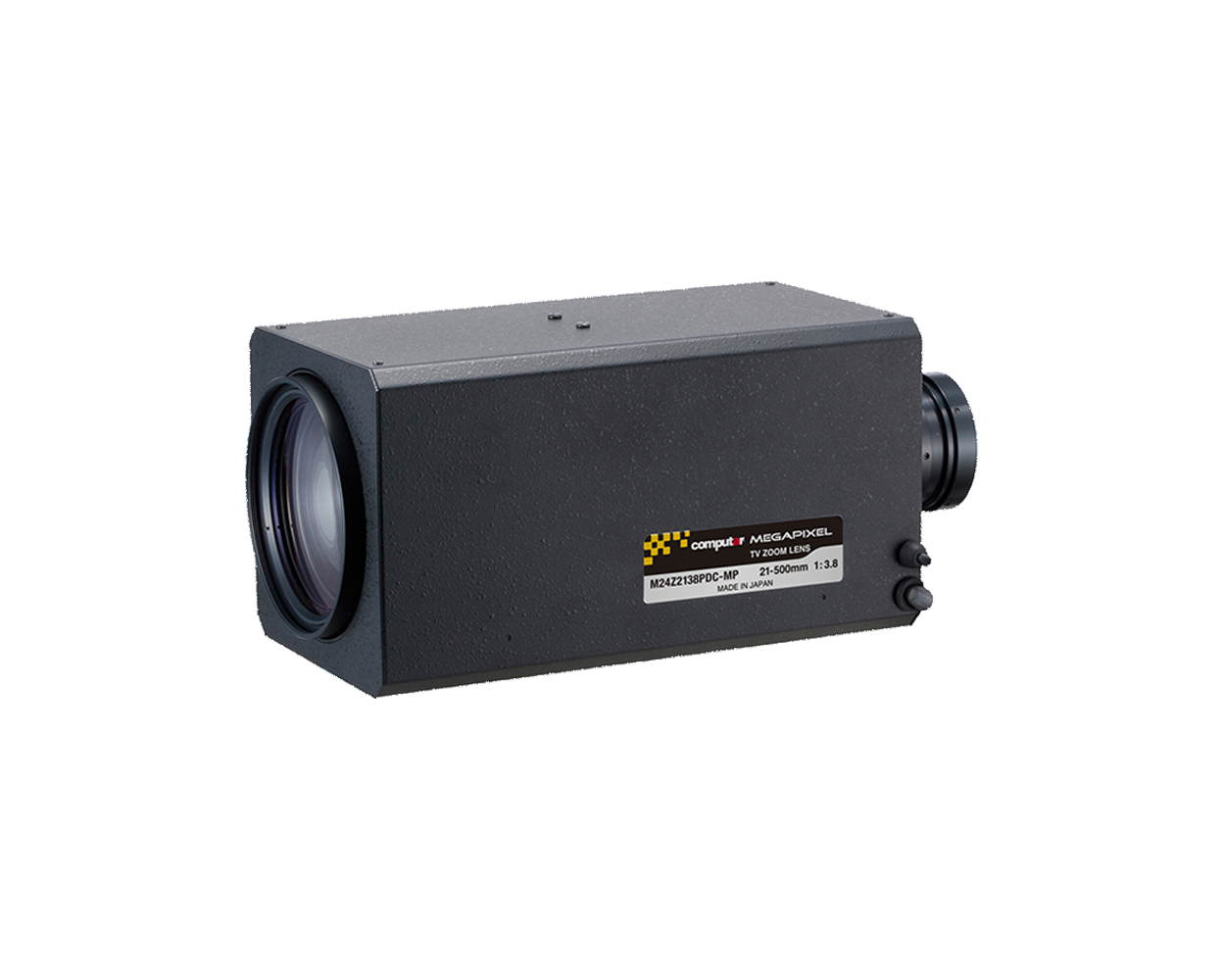

Computar - M24Z2138PDC-MP - 2/3" C-Mount 21-500mm 24X MP Auto Iris Zoom Lens w/Preset (C-mount)
Part number:
M24Z2138PDC-MP
Price:
21-500mm f3.8 24X, DC A/I and Preset.
Features:
- Over 2 Megapixel
- 24X Zoom Lens
- 21-500mm
- F3.8
- DC Auto Iris
- Motorized Zoom and Focus
- Preset Zoom and Focus
- 2/3" Format, C-Mount
| Model No. | M24Z2138PDC-MP | Effective Lens Aperture | Front | φ66mm | |||
| Focal Length | 21mm ‐ 500mm | Rear | φ14.5mm | ||||
| Max. Aperture Ratio | 1:3.8 | Back Focal Length | 21.3mm | ||||
| Max. Image Circle | φ11mm | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F3.8 ‐ F500C | Mount | C‐Mount | |||
| Focus | 5m ‐ lnf. | Filter Size | M77 P=1mm | ||||
| Zoom | 21mm ‐ 500mm | Tripod Screw | 1/4 -20UNC | ||||
| Control | Iris | DC Auto Iris | Dimensions | W101mm x H102.4mm x D237.6mm | |||
| Focus | Motorized | Weight | 2240g | ||||
| Zoom | Motorized | ||||||
| Angle of View | D | 2/3 type | 29.4°‐ 1.3° | 1/1.8 type | 23.6°‐ 1.0° | 1/2 type | 21.4°‐ 0.9° |
| H | 23.5°‐ 1.0° | 18.9°‐ 0.8° | 17.1°‐ 0.8° | ||||
| V | 17.6°‐ 0.8° | 14.2°‐ 0.6° | 12.8°‐ 0.6° | ||||
| Iris | Focus | Zoom | |||||
| Supply Voltage | DC6V | DC6V | |||||
| Current | 90mA or less | 90mA or less | |||||
| Response Time | Approx. 6.5 sec. | Approx. 6.5 sec. | |||||
| Preset Potentiometer | 5kΩVR | 5kΩVR | |||||
| Coil | Drive | 190Ω | |||||
| Control | 1000Ω | ||||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
