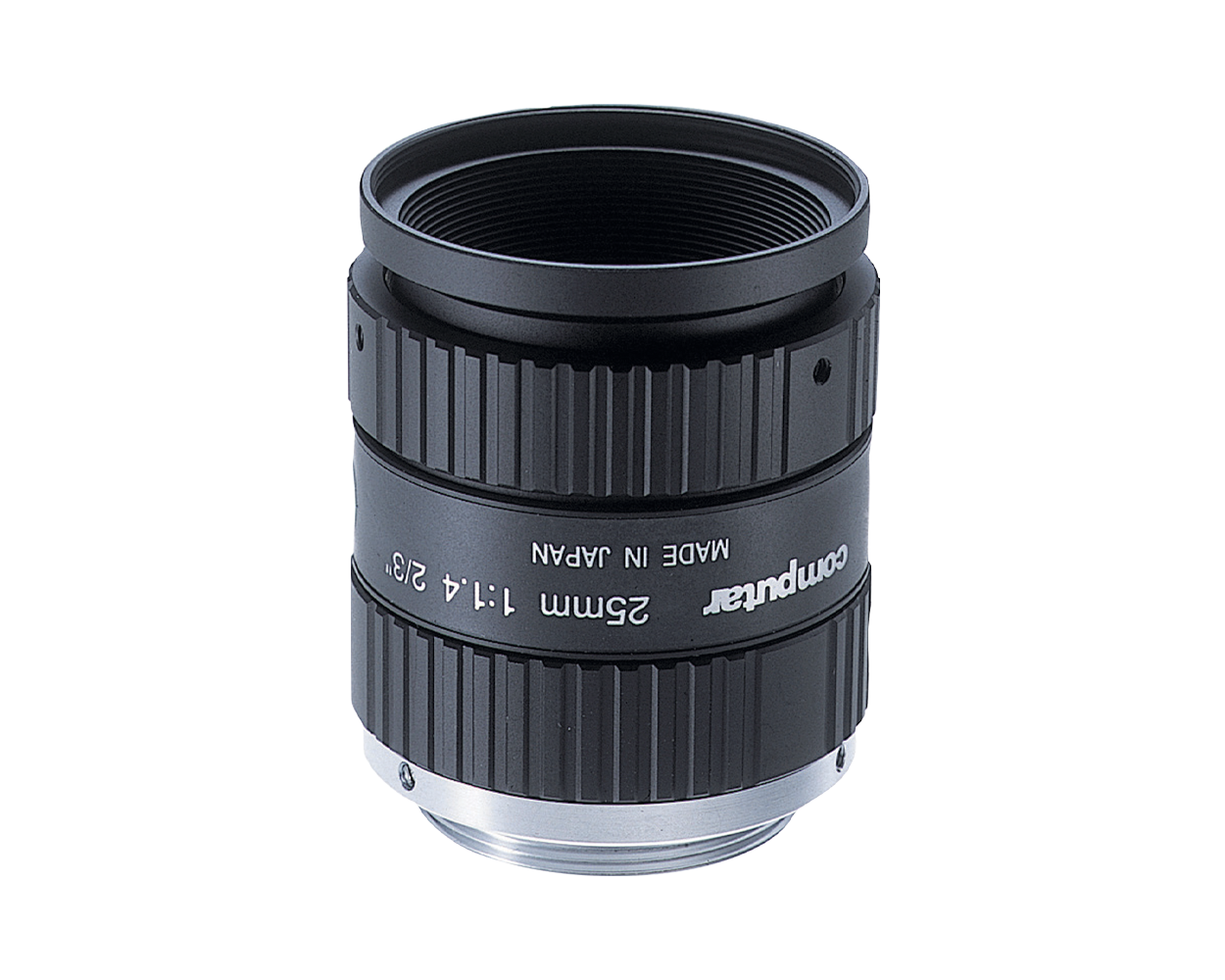

Computar - M2514-MP2 - 1.5MP, 2/3" 25mm F1.4 w/locking Iris & Focus, MP Machine Vision Lens (C-Mount)
Part number:
M2514-MP2
Price:
The 1.5MP MP2 Machine Vision lenses are engineered for maximum performance in close-up applications required in factory automation, robotics, and image processing areas. This Factory Automation (FA) lens provides high-performance optics with a variety of common focal lengths for maximum application flexibility. Ideal for Industrial Machine Vision and Intelligent Traffic Systems.
Features:
- Captures full resolution of megapixel cameras
- 1.5 Megapixel
- Low distortion
- Assured excellent light intensity even in peripheral areas
- High contrast and sharp picture in all areas of the screen
- Compact design
- Locking set screws for focus and iris
| Model No. | M2514—MP2 | Effective Lens Aperture | Front | Q 17.8mm | |||
| Focal Length | 25mm | Rear | Q 1 2.0mm | ||||
| Max. Aperture Ratio | 1:1.4 | Distortion | 2/3type | —0.3$(y=5.5) | |||
| Max. Image Format | 8.8mm x 6.6mm( $ 11mm) | 1/2type | —0.1B(v' 4.0) | ||||
| Operation Range | Iris | F1.4 - F16C | Back Focal Length | 13.1mm | |||
| Focus | 0.3m - Inf. | Flange Back Length | 17.526mm | ||||
| Gontrol | Iris | Manual | Mount | C—Mount | |||
| Focus | Manual | Filter Size | M30.5 P=0.5mm | ||||
| Object Dimension at M.O.D | 2/3 type | 10.6cm x 7.9cm | Dimensions | $ 33.5mm x 36mm | |||
| 1/2 type | 7.7cm x 5.8cm | Weight | 71.2g | ||||
| Angle of View | D | 2/3 tvpe | 24.9° | 1/2 type | 18.2° | ||
| H | 20.0° | 14.6° | |||||
| V | 15.1° | 11.0° | |||||
| Operating Temperature | —10°C - +50°C | ||||||
Name
Description
Size
Downloads
File
Datasheet
0.6mb
