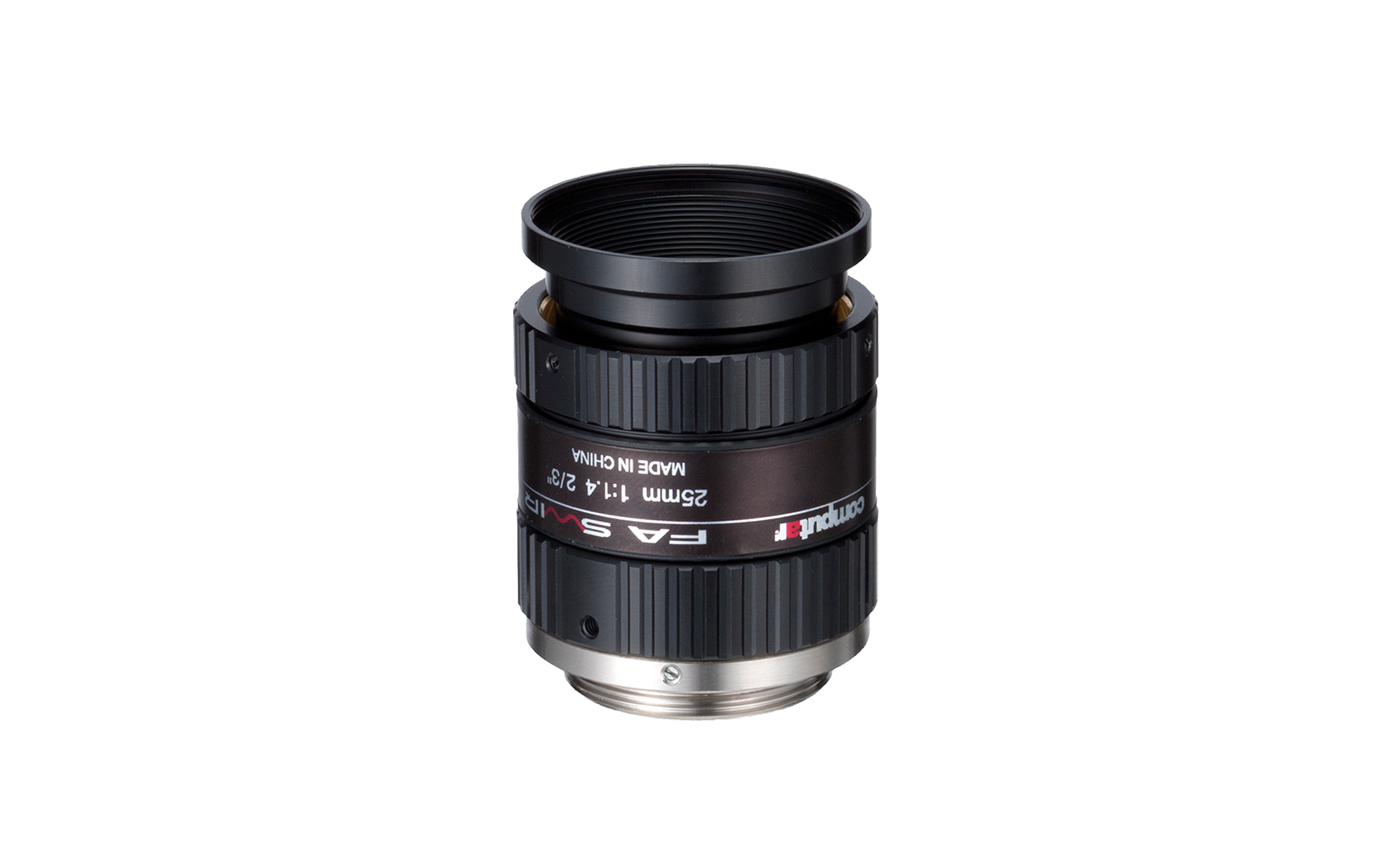

Computar - M2514-SW - 2/3" 25mm, F1.4, Manual Iris, SWIR (C- Mount)
Part number:
M2514-SW
Price:
SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.
Features:
- Unique coating technology delivers high transmission from 800nm-1,700nm
- High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
- Also available in 16mm, 35mm and 50mm
- Designed around the popular φ12.3mm image circle format
- The industry’s most compact form factor. Fits in most applications
| Model No. | M2514-SW | Effective Lens Aperture | Front | φ17.8mm | |||
| Focal Length | 25mm | Rear | φ12.0mm | ||||
| Max. Aperture Ratio | 1:1.4 | Distortion | 2/3type | -0.5% (y=5.5) | |||
| Max. Image Circle | φ12.3mm | 1/2type | -0.2% (y=4.0) | ||||
| Operation Range | Iris | F1.4 ‐ F16C | Back Focal Length | 13.4mm | |||
| Focus | 0.3m ‐ Inf. | Flange Back Length | 17.526mm | ||||
| Control | Iris | Manual | Mount | C-Mount | |||
| Focus | Manual | Filter Size | M30.5 P=0.5mm | ||||
| Object Dimension at M.O.D | 2/3 type | 10.5cm x 7.8cm | Dimensions | φ33.5mm x 36mm | |||
| 1/2 type | 7.6cm x 5.7cm | Weight | 71.2g | ||||
Angle of View
| D | 2/3 type H8.80mm x V6.60mm | 24.7° | 1/2 type H6.40mm x V4.80mm | 18.1° | ||
| H | 19.8° | 14.5° | |||||
| V | 14.9° | 10.9° | |||||
Angle of View ( InGaAs Detector) | D | 640 x 512 （Pixel Pitch ： 15μm） H9.60mm x V7.68mm | 27.6° | 320 x 256 （Pixel Pitch ： 25μm） H8.00mm x V6.40mm | 23.0° | 320 x 256 （Pixel Pitch ： 20μm） H6.40mm x V5.12mm | 18.5° |
| H | 21.6° | 18.1° | 14.5° | ||||
| V | 17.3° | 14.5° | 11.6° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
