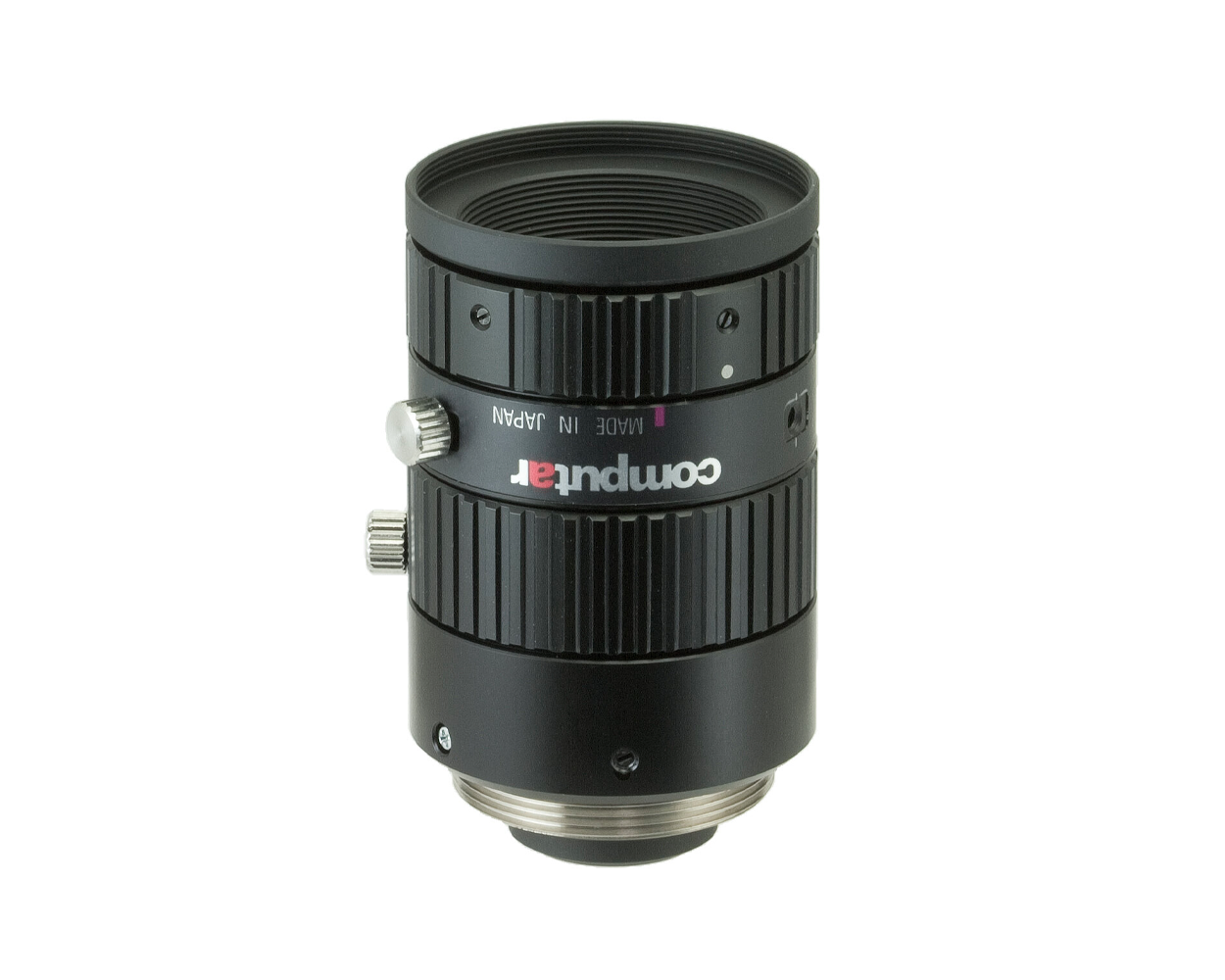

Computar - M2528-MPX - 2/3" 25mm F2.8 Ruggedized Lens for Type 16 Megapixel cameras (C-Mount)
Part number:
M2528-MPX
Price:

Computar's Ruggedized Machine Vision Lens Series is ideal for inspection and harsh environments. Their unique shock-resistant, anti-vibration design minimizes image aberrations.



Features

  • 2/3"
  • 25mm F2.8
  • 2um
  • Anti-vibration and shock resistance design to adapt to harsh inspection environments
  • High-resolution lens 2μm or less pixel size supported
  • Floating mechanism enables high performance from close-up to long-distance
  • Precise focus adjustment with a focus rotation angle 5 times greater than standard lenses
  • Adoption of click-type iris mechanism
  • 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, and 75mm focal lengths available
Model No.M2528-MPXEffective
Lens Aperture
Frontφ14.0mm
Focal Length25mmRearφ13.4mm
Max. Aperture Ratio1:2.8Distortion (Inf.)2/3 Type0.07%
Image Circle Diameterφ11.8mmBack Focal Length 9.5mm
Operation RangeIrisF2.8 ‐ F16.0Flange Back Length17.526mm
Focus0.10m ‐ Inf.MountC-Mount
ControlIrisManualFilter SizeM30.5 P=0.5mm
FocusManualDimensionsφ31.8mm×45.6mm
Operating Temperature-10℃ ‐ +50℃Weight83g
Angle of ViewSensor Size2/3 Type1/2 Type1/3 Type
Diagonal8.8mm×6.6mm (φ11.0mm)24.8°6.4mm×4.8mm (φ8.0mm)18.2°4.8mm×3.6mm (φ6.0mm)13.7°
Horizontal20.0°14.6°11.0°
Vertical15.1°11.0°8.3°
