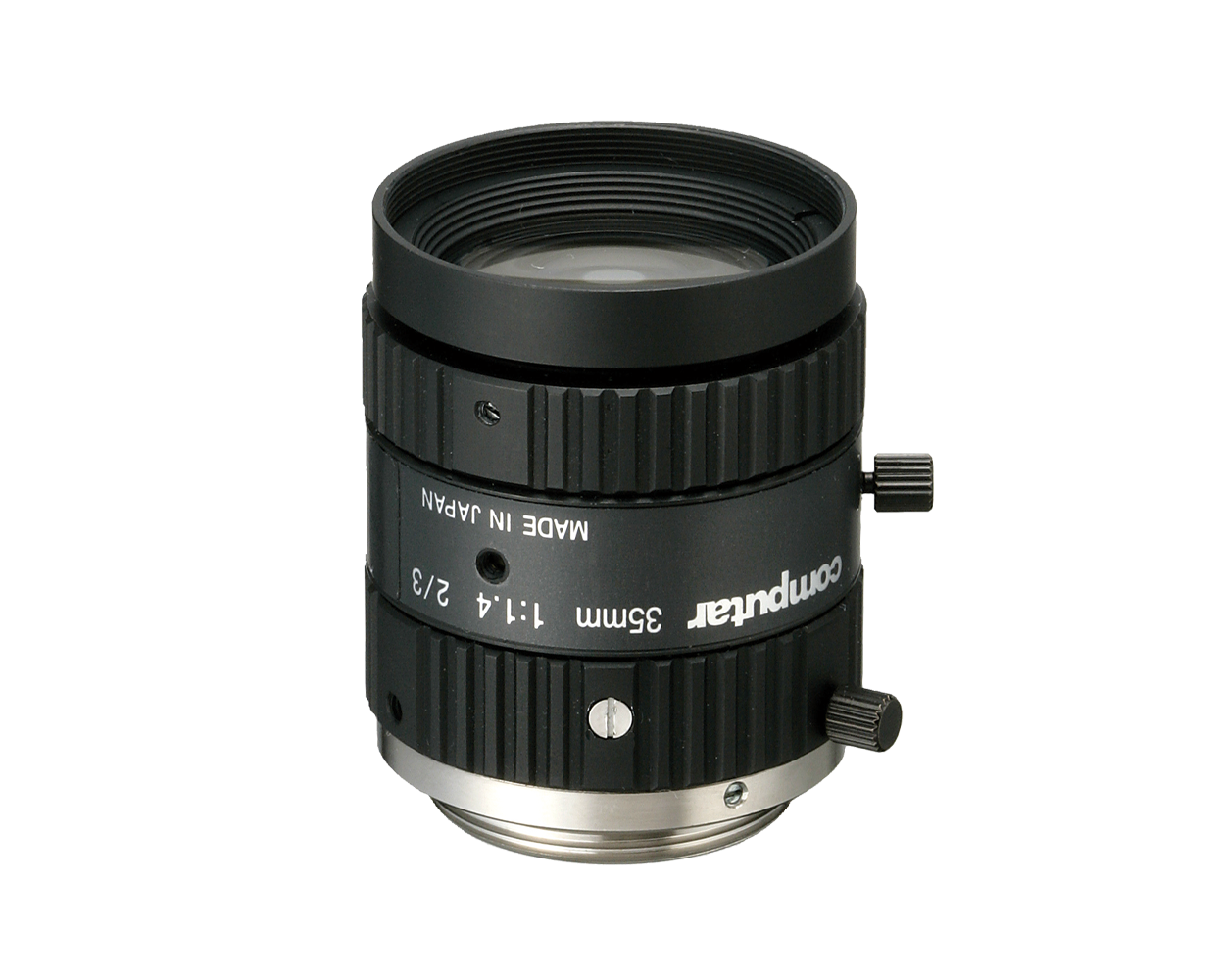

Computar - M3514-MP - 1.5MP 2/3" 35mm F1.4 w/locking iris & focus (C-mount)
Part number:
M3514-MP
Price:
1.5MP 2/3" 35mm F1.4 w/locking iris & focus (C-mount)
Features
- 35mm
- F1.4 Manual Iris
- For C Mount, 2/3” megapixel cameras
- Locking set screws on iris & focus rings
- Comprehensive 3-year warranty
| Model No. | M3514-MP | Effective Lens Aperture | Front Rear | ¢24mm ¢12mm | |||
| Focal Length | 35mm | ||||||
| Max. Aperture Ratio | 1:1.4 | Distortion | 2/3 type | -0.8%(y=5.5) | |||
| Max. Image Format | 8.8mm x 6.6mm( ¢ 11 mm) | 1/2 type | -0.39%(y=4.0) | ||||
| Operation Range | Iris | F1.4 - F16C | Back Focal Length | 17.1mm | |||
| Focus | 0.3m - Inf. | Flange Back Length | 17.526mm | ||||
| Control | Iris | Manual | Mount | C-Mount | |||
| Focus | Manual | Filter Size | M30.5 P=0.5mm | ||||
| Object Dimension at M.O.D | 2/3 type | 8.1cm x 6cm | Dimensions | ¢33.5mm x 38.2mm | |||
| 1/2 type | 5.9cm x 4.4cm | Weight | 87g | ||||
| Angle of View | D | 2/3 type | 17.3 ° | 1/2 type | 12.6 ° | ||
| H | 13.9 ° | 10.1 ° | |||||
| V | 10.4 ° | 7.6° | |||||
| Operating Temperature | -1 0°c - +so0c | ||||||
