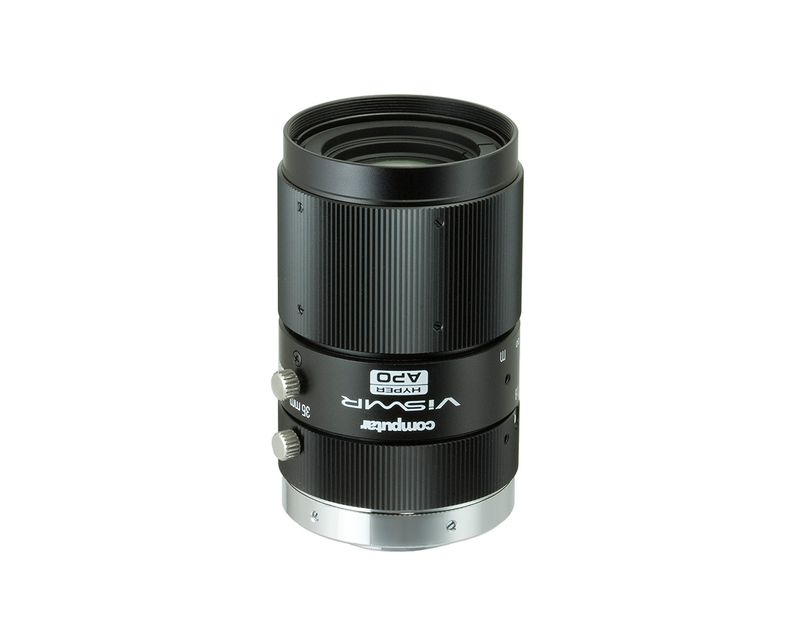

Computar - M3518-APVSW - 2/3", 5MP, 35mm, F1.8, Visible-Short Wave IR Lens, for Broadband use (C-Mount)
Part number:
M3518-APVSW
Price:
With ViSWIR HYPER-APO, it is unnecessary to adjust focus for different wavelengths. By adopting an APO floating design*, the focus shift is reduced at any wavelength and any working distance. This function makes the series ideal for multiple applications, including machine vision, UAV, and remote sensing.
Features:
- 5MP
- 35mm, F1.8
- Fully corrected focus shift in visible and SWIR range (400nm-1,700nm)
- Visible + SWIR sensors
- Unique coating technology delivers high transmission from 400nm to 1,700nm.
- High-resolution, the low-distortion design offers Megapixel clarity in the hyperspectral application.
- Designed around the popular φ8.20mm image circle format
- The industry’s most compact form factor. It fits in most applications
- Available in 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm
| Model No. | M3518-APVSW | Effective Lens Aperture | Front | φ22.5mm | |||
| Focal Length | 35mm | Rear | φ9.8mm | ||||
| Max. Aperture Ratio | 1:1.8 | Distortion(inf) | 1/1.4 Type | 0.0% | |||
| Wavelength Range | 400nm - 1700nm | 1/1.8 Type | 0.0% | ||||
| Max. Image Circle | φ11.4mm | Back Focal Length | 12.6mm | ||||
| Operation Range | Iris | F1.8 ‐ F16.0 | Flange Back Length | 17.526mm | |||
| Focus | 0.15m ‐ Inf. | Mount | C-Mount | ||||
| Control | Iris | Manual | Filter Size | M37.5 P=0.5mm | |||
| Focus | Manual | Dimensions | φ41mm×67.0mm | ||||
| Operating Temperature | -10℃ ‐ +50℃ | Weight | 199g | ||||
| Angle of View | D | 1/1.4 type 8.83mm x 7.07mm (11.3mm diagonal) | 18.4° | 1/1.8 type 7.07mm x 5.30mm (8.8mm diagonal) | 14.4° | 1/2 type 6.40mm x 5.12mm (8.2mm diagonal) | 13.4° |
| H | 14.4° | 11.6° | 10.5° | ||||
| V | 11.6° | 8.7° | 8.4° | ||||
| D | 1/4 type 3.20mm x 2.56mm (4.1mm diagonal) | 6.8° | |||||
| H | 5.3° | ||||||
| V | 4.2° | ||||||
