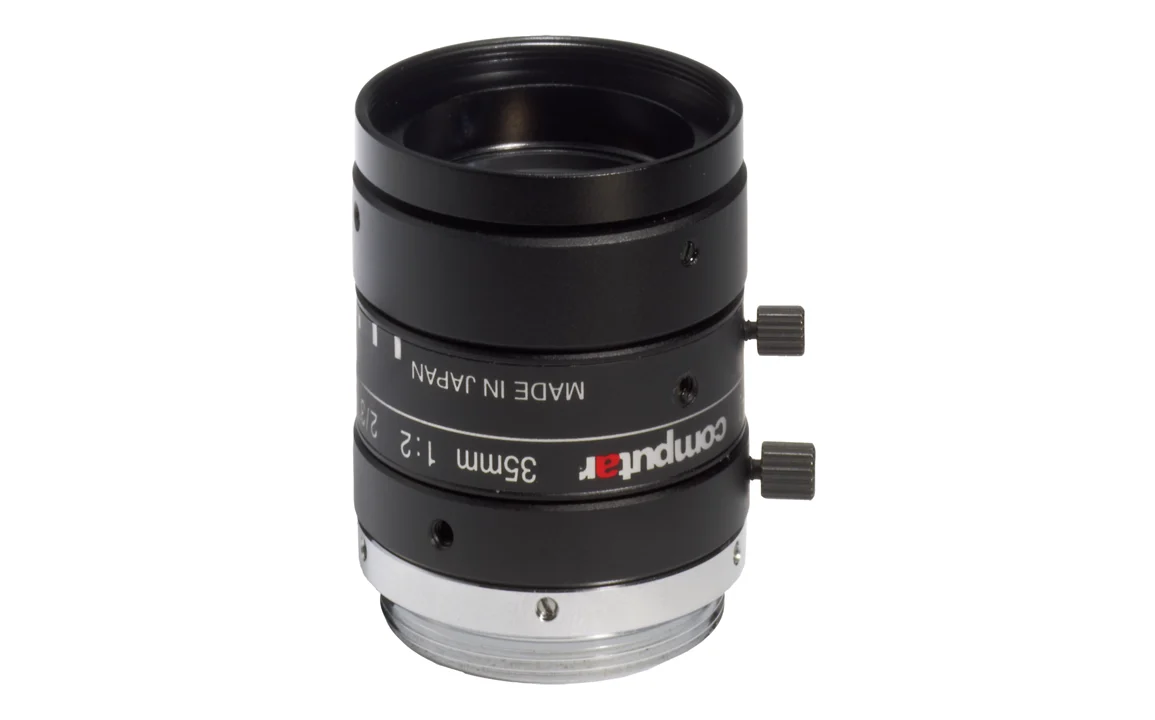

Computar - M3520-MPW2 - 2/3" 35mm f2.0, 5.0 Megapixel Ultra Low Distortion Lens

Product Overview

The Computar M3520-MPW2 is a 2/3" 35mm C-mount lens designed for high-resolution machine vision, inspection, and professional imaging applications. With 5.0 megapixel optical performance, an F2.0 aperture, and ultra-low distortion design, it delivers sharp, accurate images where detail and geometric fidelity are critical.

Key Configuration

Lens format: 2/3"; focal length: 35mm; aperture: F2.0; optical resolution: 5.0 megapixel; design: ultra low distortion; controls: focus and iris with locking set screws.

Key Features

• 35mm focal length supports detailed imaging from a narrow field of view.
• 5.0 megapixel optical performance supports high-resolution image capture.
• Ultra-low distortion design helps preserve accurate scene geometry.
• Higher relative illumination supports more uniform brightness across the image field.
• Locking focus and iris screws help prevent accidental setting changes after installation.

Technical Context

The floating optical design helps maintain image sharpness across different object distances, supporting consistent performance in inspection and measurement workflows. Its low-distortion characteristics make it useful for applications where image accuracy is as important as image detail.

Installation Notes

Use with compatible 2/3" cameras. After setting the field of view, focus, and iris position, tighten the locking set screws to maintain stable optical settings during operation.
