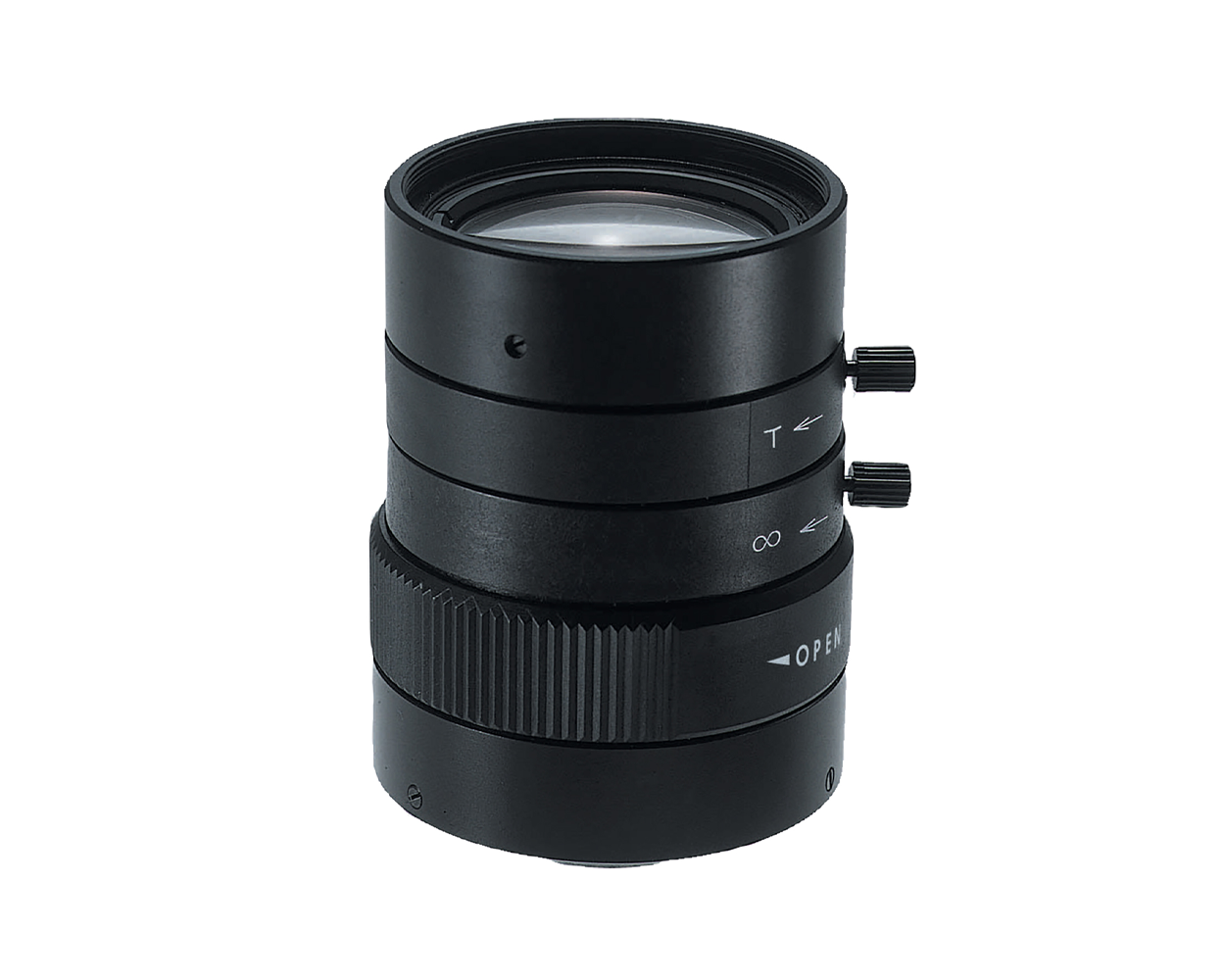

Computar - M3Z1228C-MP - 1.5MP, 2/3" 12-36mm Varifocal Lens, Manual Iris Megapixel (C Mount)
Part number:
M3Z1228C-MP
Price:
Dedicated design emphasis on the performance for close-up applications required in factory automation and image processing areas.
| Model No. | M3Z1228C-MP | Effective Lens Aperture | Front | Ø27.2mm | |||
| Focal Length | 12mm - 36mm | Rear | Ø12.1mm | ||||
| Max. Aperture Ratio | 1:2.8 | Back Focal Length | Tele | 13.5mm | |||
| Max. Image Format | 8.8mm x 6.6mm(Ø11mm) | Wide | 14.7mm | ||||
| Operation Range | Iris | F2.8 - F16C | Distortion | 2/3 type | Tele +3.5%(y=5.5) | ||
| Focus | Tele 0.2m - Inf. | Wide —2.6%(y=5.5) | |||||
| Wide 0.05m - Inf. | 1/2 type | Tele +1.7%(y=4.0) | |||||
| Zoom | 12mm - 36mm | Wide —1.9%(y=4.0) | |||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C-Mount | ||||
| Zoom | Manual | Filter Size | M35.5 P=0.5mm | ||||
| Object Dimension at M.O.D. | 12mm | 2/3 type | 4.0cm x 3.0cm | Dimensions | Ø41.6mm x 53mm | ||
| 36mm | 4.8cm x 3.6cm | Weight | 105g | ||||
| Angle of View | D | 2/3 type | 50.4° - 16.8° | 1/2 type | 37.5° - 12.5° | 1/3 type | 28.3° - 9.4° |
| H | 41.0° - 13.6° | 30.2° - 10.0° | 22.8° - 7.6° | ||||
| V | 31.2° - 10.4° | 22.8° - 7.6° | 17.1° - 5.7° | ||||
| Operating Temperature | -20°C - +50°C | ||||||
