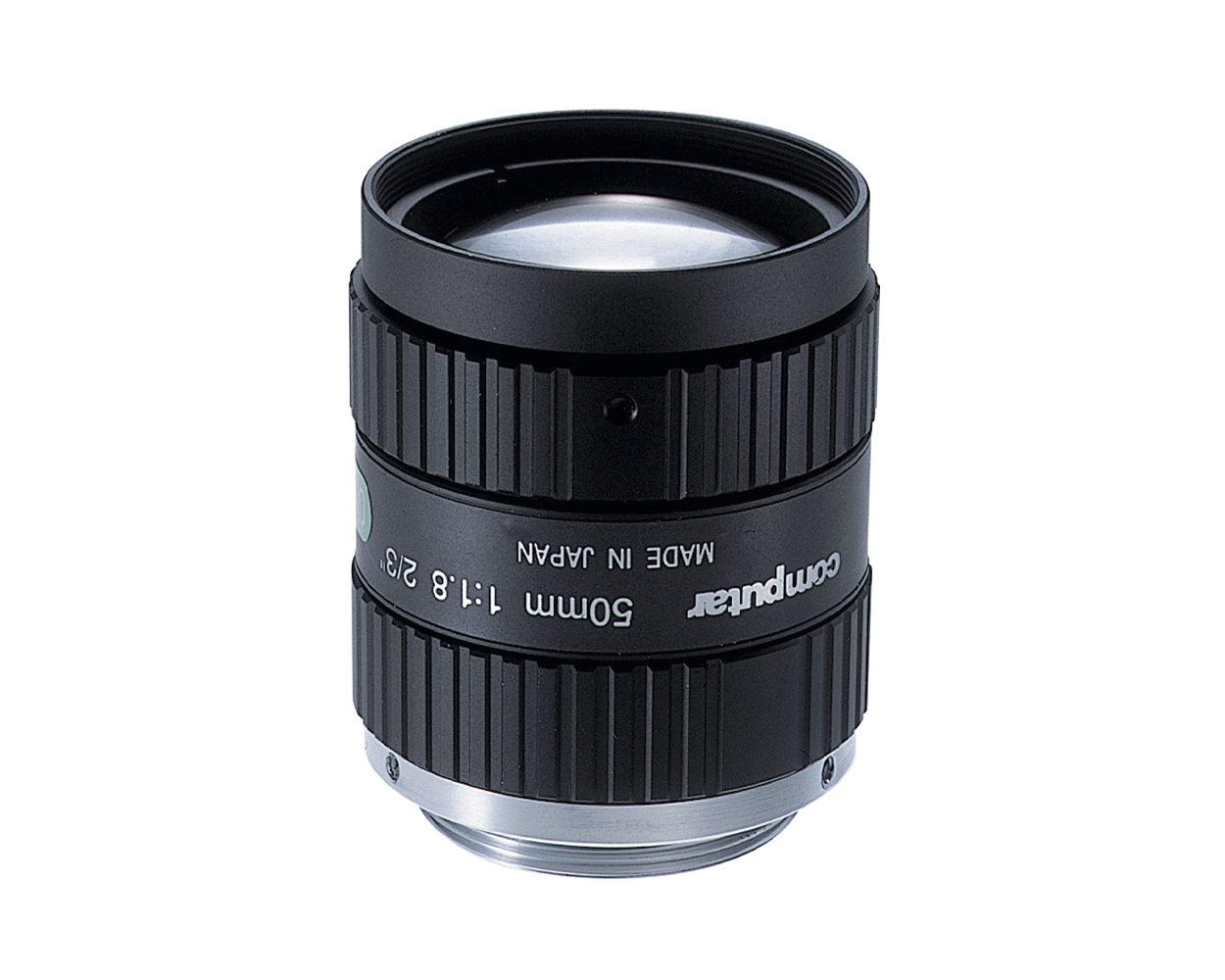

Computar - M5018-MP2 - 1.5MP, 2/3" 50mm F1.8 w/locking Iris & Focus, Megapixel Machine Vision Lens (C-Mount)
Part number:
M5018-MP2
Price:
The 1.5MP MP2 Machine Vision lenses are engineered for maximum performance in close-up applications required in factory automation, robotics, and image processing areas. This Factory Automation (FA) lens provides high-performance optics with a variety of common focal lengths for maximum application flexibility. Ideal for Industrial Machine Vision and Intelligent Traffic Systems.
Features:
- Captures full resolution of megapixel cameras
- 1.5 Megapixel
- Low distortion
- Assured excellent light intensity even in peripheral areas
- High contrast and sharp picture in all areas of the screen
- Compact design
- Locking set screws for focus and iris
| Model No. | M5018—MP2 | Effective Lens Aperture | Front | g 25.5mm | |||
| Focal Length | 50mm | Rear | g 9.6mm | ||||
| Max. Aperture Ratio | 1:1.8 | Distortion | 2/3type | —0.3$(y=5.5) | |||
| Max. Image Format | 8.8mm x 6.6mm( $ 11mm) | 1/2type | —0.2B(v' 4.0) | ||||
| Operation Range | Iris | F1.8- F16C | Back Focal Length | 13.1mm | |||
| Focus | 0.5m - Inf. | Flange Back Length | 17.526mm | ||||
| Gontrol | Iris | Manual | Mount | C—Mount | |||
| Focus | Manual | Filter Size | M30.5 P=0.5mm | ||||
| Object Dimension at M.O.D | 2/3tvpe | 8.7cm x 6.5cm | Dimensions | $ 33.5mm x 38.2mm | |||
| 1/2type | 6.3cm x4.8cm | Weight | 85g | ||||
| Angle of View | D | 2/3 tvpe | 13.1° | 1/2 type | 9.5° | ||
| H | 10.5° | 7.6° | |||||
| V | 7.9° | 5.7° | |||||
| Operating Temperature | —10°C - +50°C | ||||||
