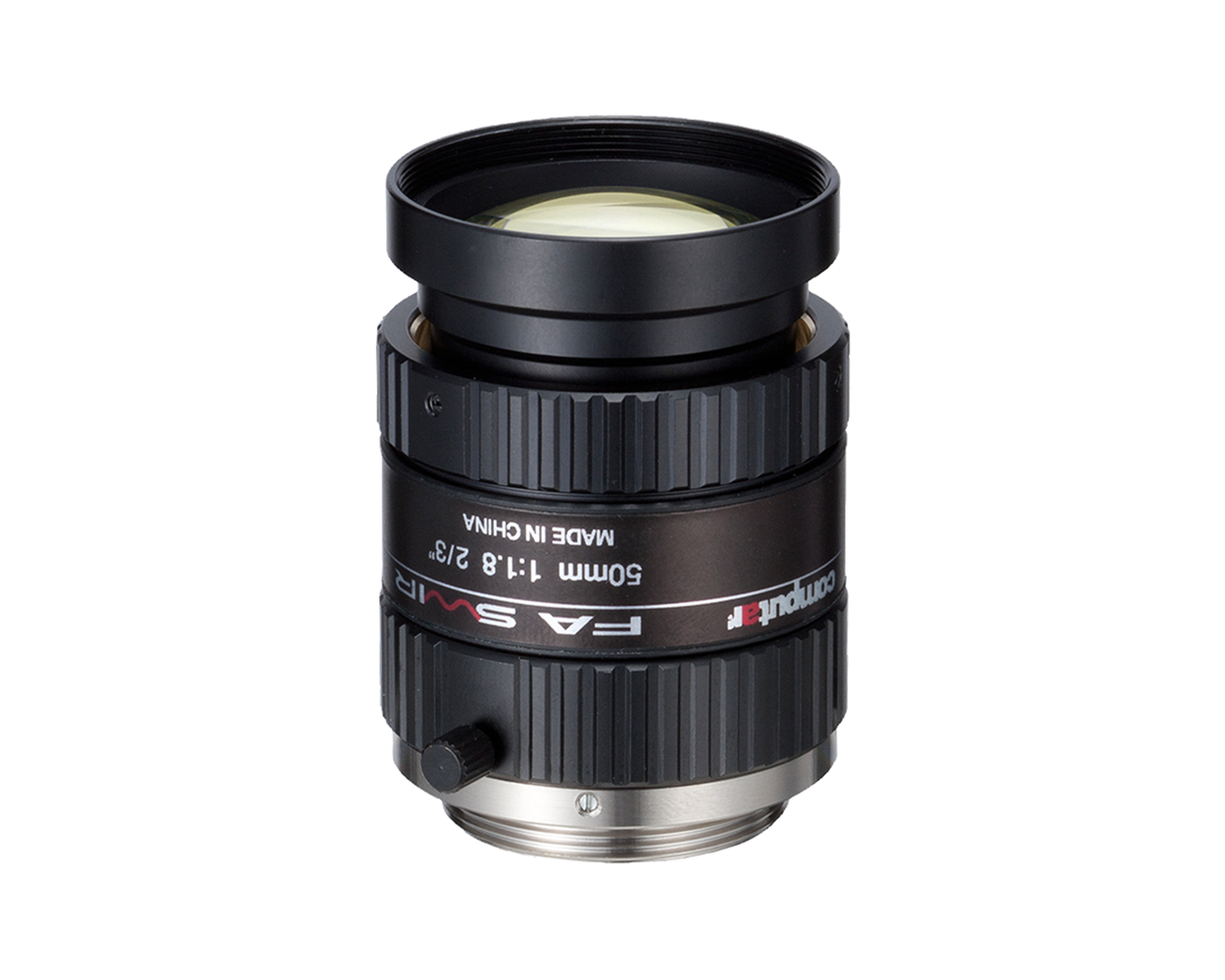

Computar - M5018-SW - 2/3" 50mm, F1.8, Manual Iris, SWIR (C- Mount)
Part number:
M5018-SW
Price:
SWIR (Short Wave Infrared) Lenses are specifically designed for Machine Vision applications in NIR and SWIR.
| Model No. | M5018-SW | Effective Lens Aperture | Front | φ25.5mm | |||
| Focal Length | 50mm | Rear | φ9.6mm | ||||
| Max. Aperture Ratio | 1:1.8 | Distortion | 2/3type | -0.3% (y=5.5) | |||
| Max. Image Circle | φ12.3mm | 1/2type | -0.1% (y=4.0) | ||||
| Operation Range | Iris | F1.8‐ F16C | Back Focal Length | 13.6mm | |||
| Focus | 0.6m ‐ Inf. | Flange Back Length | 17.526mm | ||||
| Control | Iris | Manual | Mount | C-Mount | |||
| Focus | Manual | Filter Size | M30.5 P=0.5mm | ||||
| Object Dimension at M.O.D | 2/3type | 10.4cm x 7.8cm | Dimensions | φ33.5mm x 38.2mm | |||
| 1/2type | 7.6cm x 5.7cm | Weight | 85g | ||||
Angle of View
| D | 2/3 type H8.80mm x V6.60mm | 13.0° | 1/2 type H6.40mm x V4.80mm | 9.5° | ||
| H | 10.4° | 7.6° | |||||
| V | 7.8° | 5.7° | |||||
Angle of View ( InGaAs Detector) | D | 640 x 512 （Pixel Pitch ： 15μm） H9.60mm x V7.68mm | 14.5° | 320 x 256 （Pixel Pitch ： 25μm） H8.00mm x V6.40mm | 12.1° | 320 x 256 （Pixel Pitch ： 20μm） H6.40mm x V5.12mm | 9.7° |
| H | 11.3° | 9.5° | 7.6° | ||||
| V | 9.1° | 7.6° | 6.1° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
