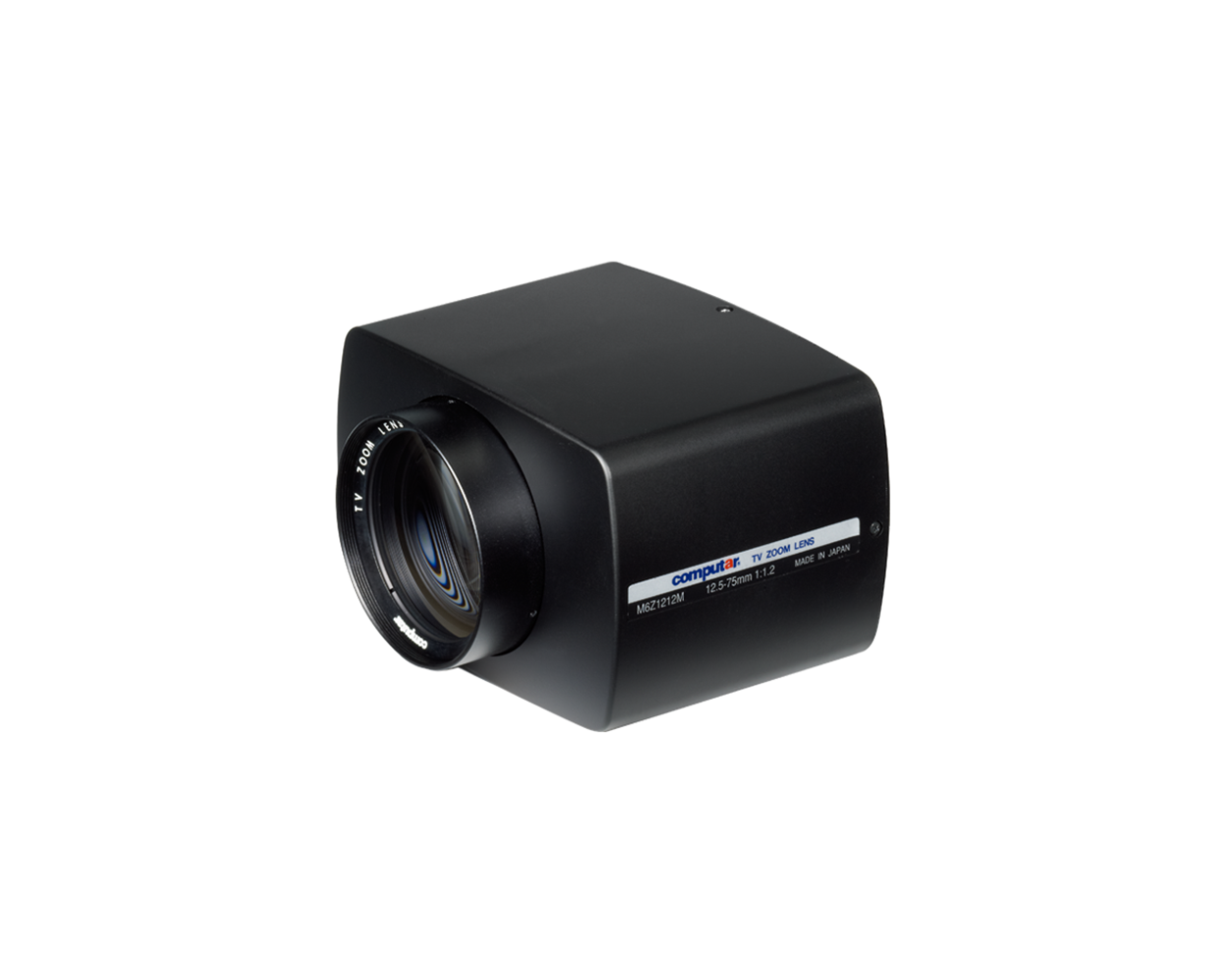

Computar - M6Z1212M - 2/3" 12.5-75mm f1.2 6X Motorized Zoom, 3 Motors (C-Mount)
Part number:
M6Z1212M
Price:
12.5-75mm fj.2 6X, 3 motors.
Features:
- 6X Motorized Zoom Lens
- 12.5-75mm
- F1.2
- Motorized Zoom, Focus and Iris
- 2/3" Format
- C-Mount
| Model No. | M6Z1212M | Effective Lens Aperture | Front | 46.5mm | |||
| Focal Length | 12.5mm - 75mm | Rear | 15.6mm | ||||
| Max. Aperture Ratio | 1:1.2 | Back Focal Length | 15.4mm | ||||
| Max. Image Format | 8.8mm x 6.6mm(11mm) | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F1.2 - F16C | Mount | C-Mount | |||
| Focus | 1.0m - Inf. | Filter Size | M55 P0.75mm | ||||
| Zoom | 12.5mm - 75mm | Tripod Screw | 1/4 - 20UNC | ||||
| Control | Iris | Motorized | Dimensions | W108mm x H71mm x D114.5mm | |||
| Focus | Motorized | Weight | 750g | ||||
| Zoom | Motorized | ||||||
| Object Dimension at M.O.D. | 12.5mm | 68.8cm x 51.6cm | |||||
| 75mm | 12.1cm x 9cm | ||||||
Angle of View
| D | 2/3 type | 46.9 - 8.3 | 1/2 type | 35.0 - 6.2 | 1/3 type | 26.5 - 4.7 |
| H | 38.3 - 6.7 | 29.2 - 5.1 | 21.3 - 3.8 | ||||
| V | 29.2 - 5.1 | 21.3 - 3.8 | 16.0 - 2.8 | ||||
| Iris | Focus | Zoom | |||||
| Supply Voltage | DC8V | DC8V | DC8V | ||||
| Current | 30mA or less | 30mA or less | 25mA or less | ||||
| Response Time | Approx. 3 sec. | Approx. 5 sec. | Approx. 4 sec. | ||||
| Preset Potentiometer | ---- | ---- | ---- | ||||
| Operating Temperature | 10C - 50C | ||||||
