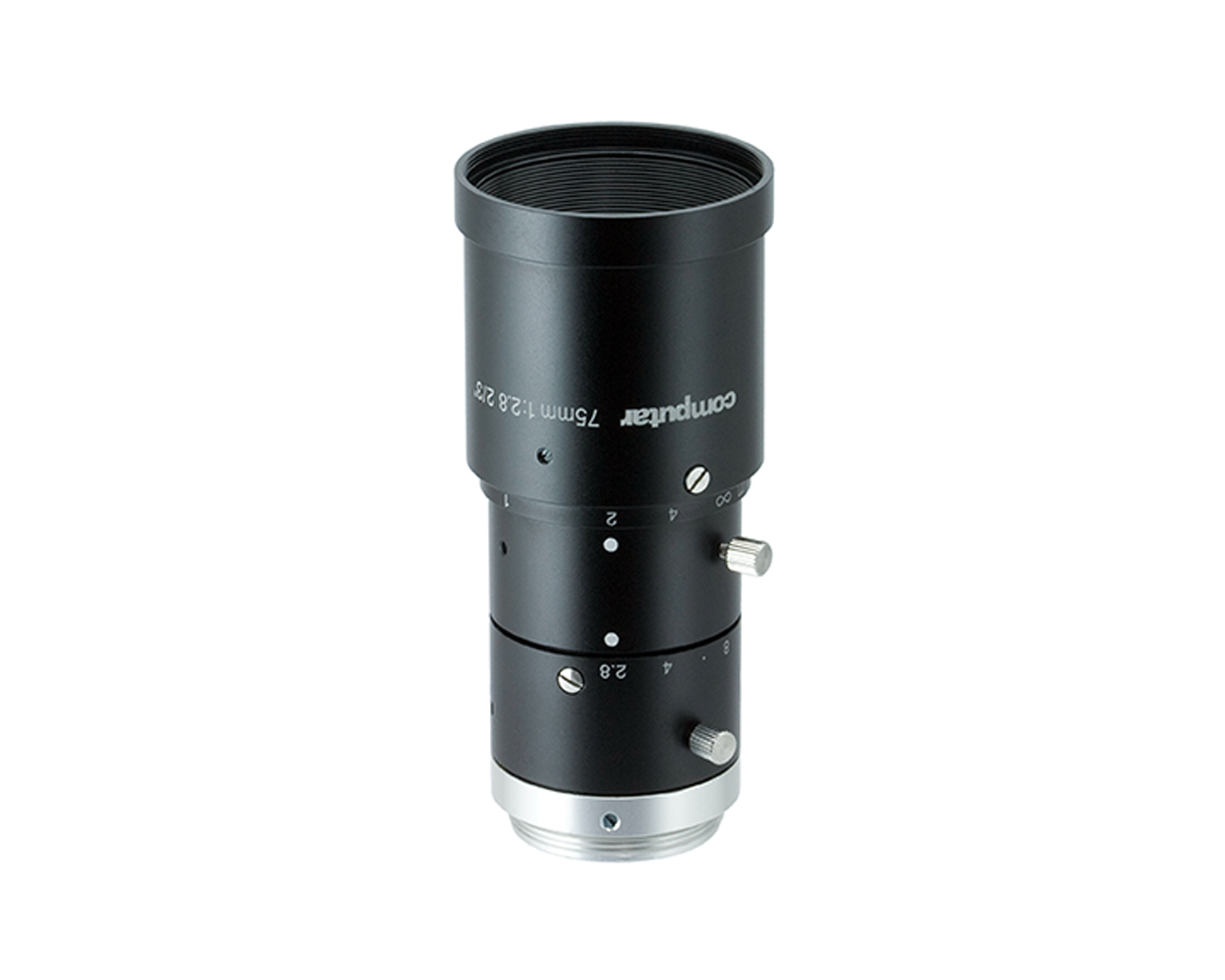

Computar - M7528-MP - 1.5MP 2/3" 75mm F2.8 w/locking Iris & Focus, Megapixel (C-Mount)
Part number:
M7528-MP
Price:
1.5MP 2/3" 75mm F2.8 w/locking Iris & Focus, Megapixel (C-Mount)
Features:
- 5mm
- F2.8
- Manual Iris
- For C Mount, 2/3” megapixel cameras
- Locking set screws on zoom & focus rings
- Comprehensive 3-year warranty
| Model No. | M7528-MP | Effective Front | ¢24.Smm | ||||
| Focal Length | 75mm | Lens Aperture | Rear | ¢13.6mm | |||
| Max. Aperture Ratio | 1:2.8 | Distortion | 2/3 type | -0.43%(y=5.5) | |||
| Max. Image Format | 8.8mm x 6.6mm( ¢ 11 mm) | 1/2 type | -0.22%(y=4.0) | ||||
| Operation Range | Iris | F2.8- F16C | Back Focal Length | 21.5mm | |||
| Focus | 0.3m - Inf. (;> ) | Flange Back Length | 17.526mm | ||||
| Control | Iris | Manual | Mount | C- Mount | |||
| Focus | Manual | Filter Size | M30.5 P=0.Smm | ||||
| Object Dimension at M.O.D | 2/3 type | 4.1cm x 3.1cm | Dimensions | ¢35mm x 57.75mm | |||
| 1/2 type | 3cm x 2.2cm | Weight | 113g | ||||
| Angle of View | D | 2/3 type | s.s‚ | 1/2 type | 6.2 ° | ||
| H | 6.8° | s‚ | |||||
| V | s.1 ° | 3.7 ° | |||||
| Operating Temperature | -1 0° C - +50° C | ||||||
