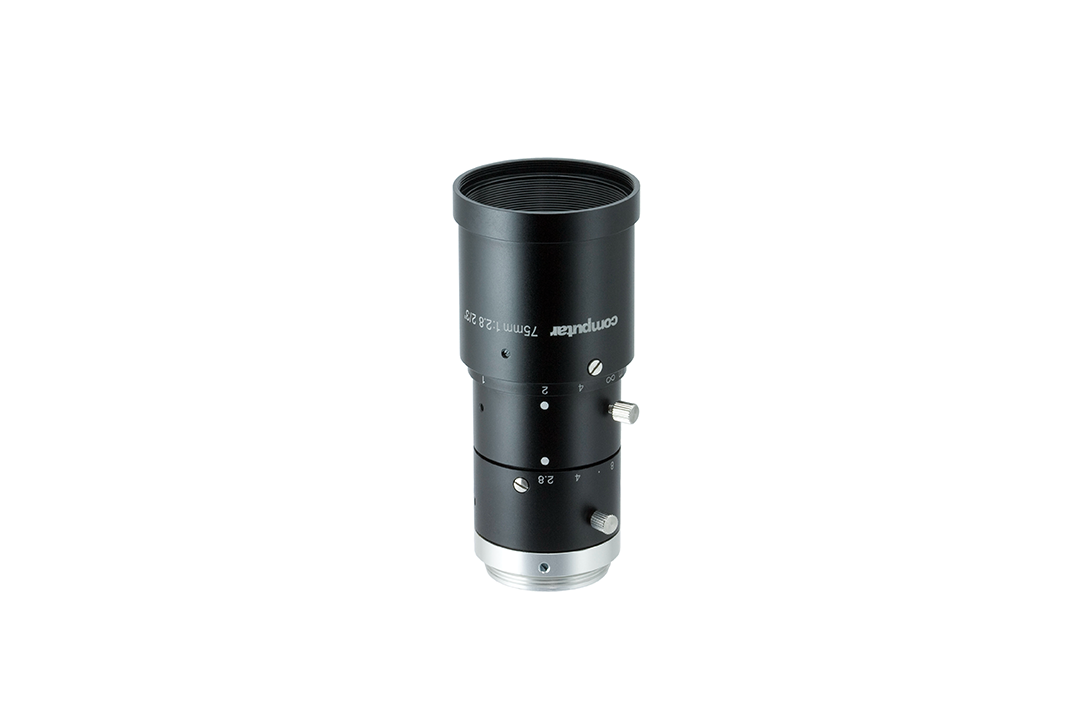

Computar - M7528-MPW3 - 8MP 2/3" 75mm F2.8 Machine Vision Lens (C-Mount)
Part number:
M7528-MPW3
Price:
The MPW3 Series C-mount lenses are lightweight and have a very compact design. Important factors such as very low distortion, reliable illumination right up to the edge, and short working distances have been retained. They are suitable for sensors from 1/2.5“ to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
Features:
- 2/3” Format
- 6 Megapixel
- 50mm Fixed
- F2.8
- Full HD Format
- Fixed Iris
- Compact & Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures Corner Brightness
- Available in 5mm, 8mm, 12mm, 16mm, 35mm, 50mm, and 75mm
| Model No. | M7528-MPW3 | Effective | Front | φ26.1mm | |||
| Focal Length | 75mm | Lens Aperture | Rear | φ15.8mm | |||
| Max. Aperture Ratio | 1:2.8 | Distortion | 2/3 type(Y=5.5mm) | 0.33% | |||
| Max. Image Format | 8.8mm x 6.6mm(φ11mm） | 1/1.8 type(Y=4.5mm) | 0.21% | ||||
| Operation Range | Iris | F2.8 ‐ 16.0 | 1/2.5 type(Y=3.55mm) | 0.12% | |||
| Focus | 0.4m - inf. | Back Focal Length | 14.6mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C‐Mount | ||||
| Object Dimension at M.O.D. | 2/3 Type | 47.0 x 35.2 mm | Filter Size | M34 P=0.5mm | |||
| 1/1.8 Type | 38.4 x 28.8 mm | Dimensions | φ36mm x 75mm | ||||
| 1/2.5 Type | 30.4 x 22.9 mm | Weight | 102g | ||||
| Angle of View | D | 2/3 type | 8.4° | 1/1.8 type | 6.9° | 1/2.5 type | 5.4° |
| H | 6.7° | 5.5° | 4.3° | ||||
| V | 5.0° | 4.1° | 3.3° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
