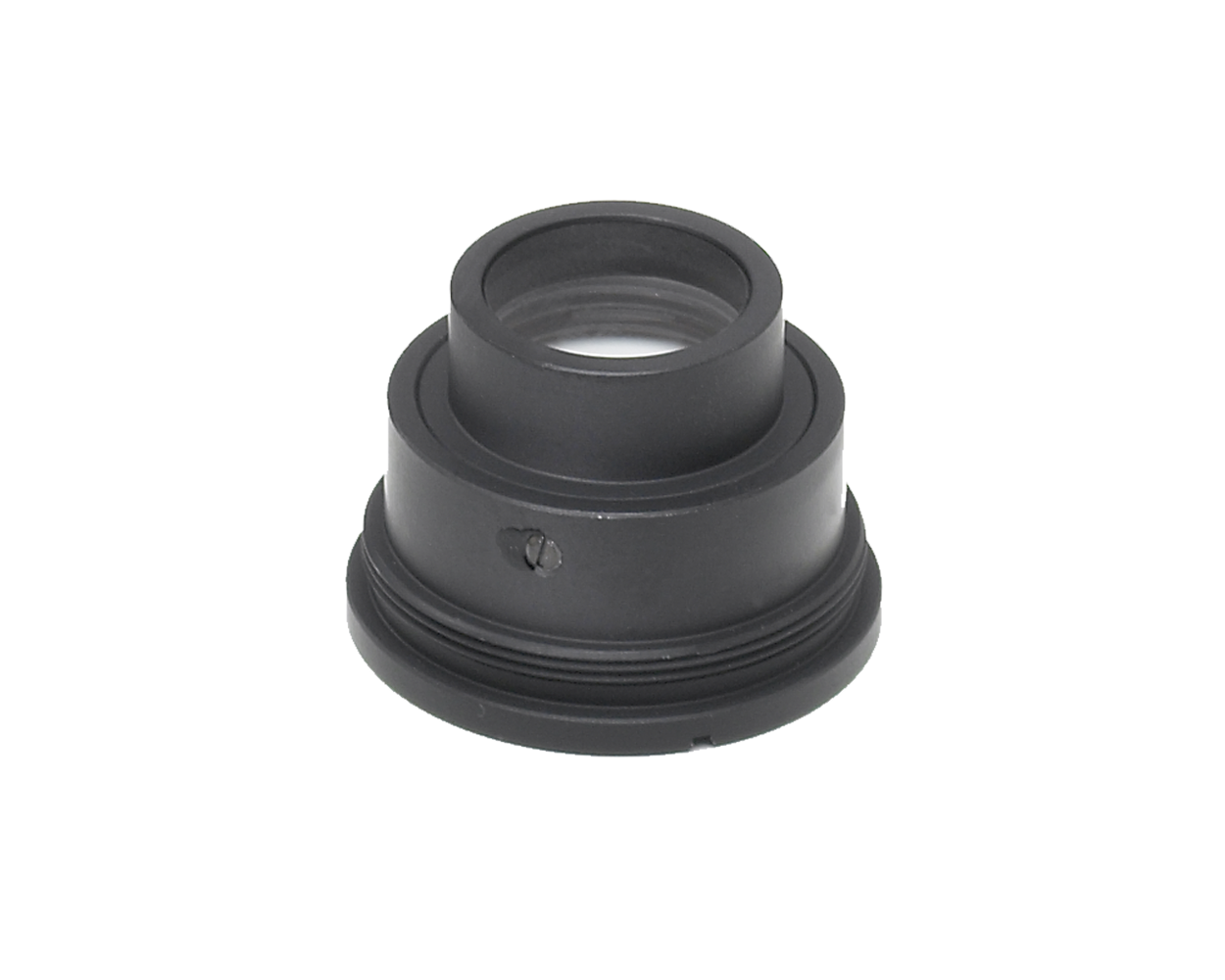

Computar - TEC-75 - 2/3" Adapter (.75) for TEC-55
Part number:
TEC-75
Price:
2/3" Adapter (.75) for TEC-55.
| Model No. | TEC-M55 | Effective Lens Aperture | Front | 33.0mm | |||
| Focal Length | 55mm | Rear | 13.3mm | ||||
| Max. Aperture Ratio | 1:2.8 | Back Focal Length | 29.8mm | ||||
| Max. Image Format | 8.8mm x 6.6mm(11mm) | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F2.8 - F32C | Mount | C-Mount | |||
| Focus | 0.14m - Inf. | Filter Size | M43 P0.75mm | ||||
| Control | Iris | Manual | Dimensions | 53mm x 92.9mm | |||
| Focus | Manual | Weight | 320g | ||||
| Object Dimension at M.O.D. | 17mm x 13mm | ||||||
Angle of View
| D | 2/3 type | 11.5 | 1/2 type | 8.3 | 1/3 type | 6.2 |
| H | 9.2 | 6.7 | 5.0 | ||||
| V | 6.9 | 5.0 | 3.7 | ||||
| Operating Temperature | 20C - 50C | ||||||
