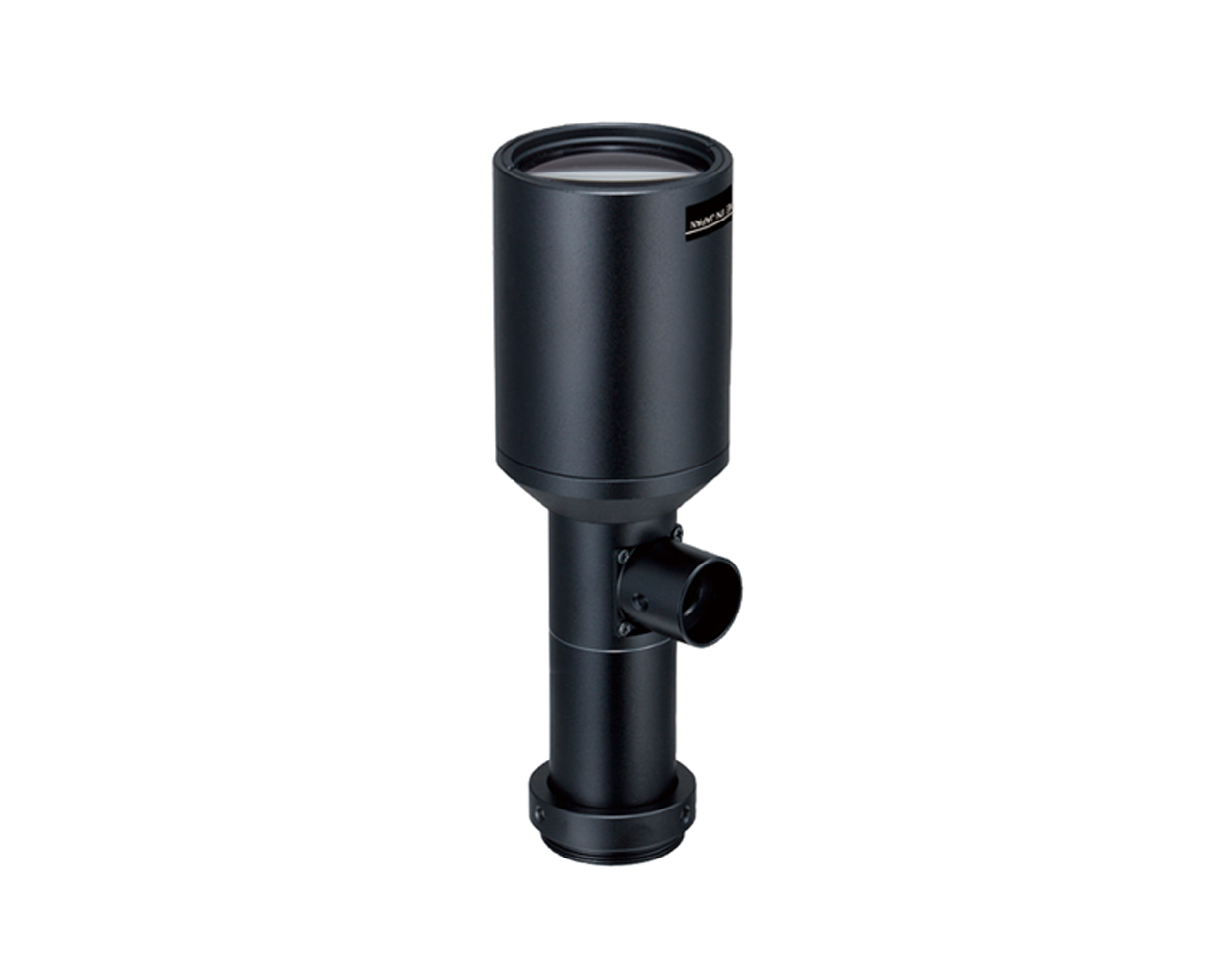

Computar - TEC-M03110MPC - 2MP, 2/3" 110mm, Telecentric Lens, 0.3x Magnification (C-Mount) w/ Coaxial
Part number:
TEC-M03110MPC
Price:
The quality optics of Computar's Telecentric lenses provide high-resolution images with the lowest possible geometrical distortion.
Features:
- Compatible with 2MP sensors on 2/3 " cameras
- Designed for 111mm working distance
- 0.3x magnification
- Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
- Coaxial lighting capability
| Model No. | TEC-M03110MPC | NA | 0.023 | ||
| Magnification | 0.3X | TV Distortion | 2/3 type | 0.026% | |
| Working Distance | 111mm | Back Focal Length | 17.0mm | ||
| Effective F Number | 6.5 | Flange Back Length | 17.526mm | ||
| Max. Image Format | φ11mm | Mount | C-Mount | ||
| Control | Iris | - | Filter Size | - | |
| Focus | - | ||||
| Field of View | 29.3mm(H) x 22mm(V) 2/3" | Dimensions | φ55mm x 140.3mm | ||
| Resolving Power *1 | 14.5µm | Weight | TBA | ||
| Depth of Field *2 | 5.75mm | Operating Temperature | -10℃ - +50℃ | ||
