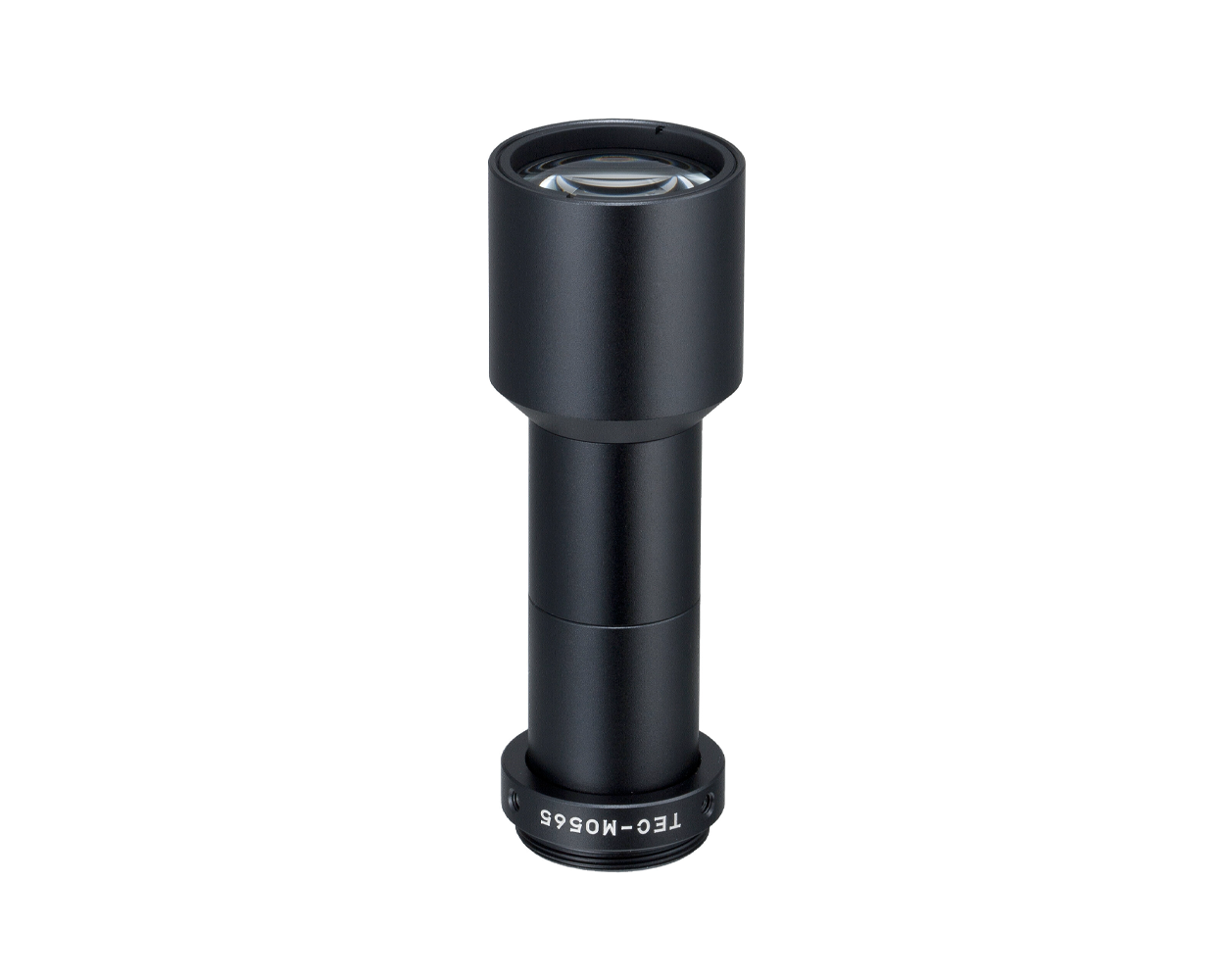

Computar - TEC-M0565MP - 2MP, 2/3" 65mm, Telecentric Lens, 0.5x Magnification (C-Mount)
Part number:
TEC-M0565MP
Price:
The quality optics of Computar's Telecentric lenses provide high-resolution images with the lowest possible geometrical distortion.
Features:
- Compatible with 2MP sensors on 2/3 " cameras
- Designed for 65mm working distance
- 0.5x magnification
- Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
| Model No. | TEC-M0565MP | NA | 0.028 | ||
| Magnification | 0.5X | TV Distortion | 2/3 type | -0.012% | |
| Working Distance | 65.5mm | Back Focal Length | 17.0mm | ||
| Effective F Number | 9.0 | Flange Back Length | 17.526mm | ||
| Max. Image Format | φ11mm | Mount | C-Mount | ||
| Control | Iris | - | Filter Size | - | |
| Focus | - | ||||
| Field of View | 17.6mm(H) x 13.2mm(V) 2/3" | Dimensions | φ32mm x 88.3mm | ||
| Resolving Power *1 | 12.0µm | Weight | 77g | ||
| Depth of Field *2 | 2.87mm | Operating Temperature | -10℃ - +50℃ | ||
