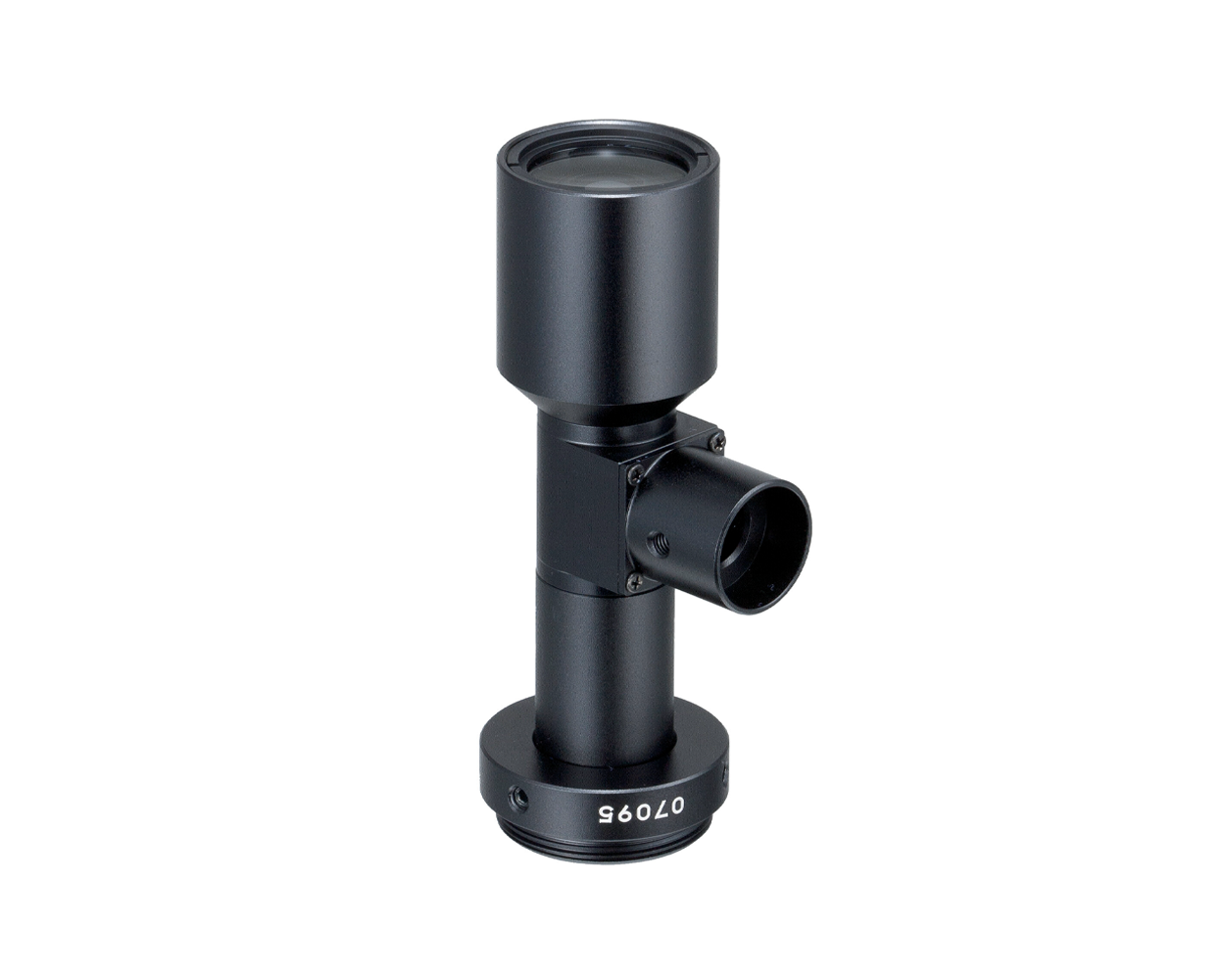

Computar - TEC-M1065MP - 2MP, 2/3" 65mm, Telecentric Lens, 1.0x magnification (C-Mount)
Part number:
TEC-M1065MP
Price:
The quality optics of Computar's Telecentric lenses provide high-resolution images with the lowest possible geometrical distortion.
Features:
- Compatible with 2MP sensors on 2/3 " cameras
- Designed for 65.5mm working distance
- 1x magnification
- Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
| Model No. | TEC-M1065MP | NA | 0.05 | ||
| Magnification | 1.0X | TV Distortion | 2/3 type | -0.022% | |
| Working Distance | 65.5mm | Back Focal Length | 17.0mm | ||
| Effective F Number | 9.8 | Flange Back Length | 17.526mm | ||
| Max. Image Format | φ11mm | Mount | C-Mount | ||
| Control | Iris | - | Filter Size | - | |
| Focus | - | ||||
| Field of View | 8.8mm(H) x 6.6mm(V) 2/3" | Dimensions | φ25mm x 78mm | ||
| Resolving Power *1 | 6.7µm | Weight | 49g | ||
| Depth of Field *2 | 0.79mm | Operating Temperature | -10℃ - +50℃ | ||
