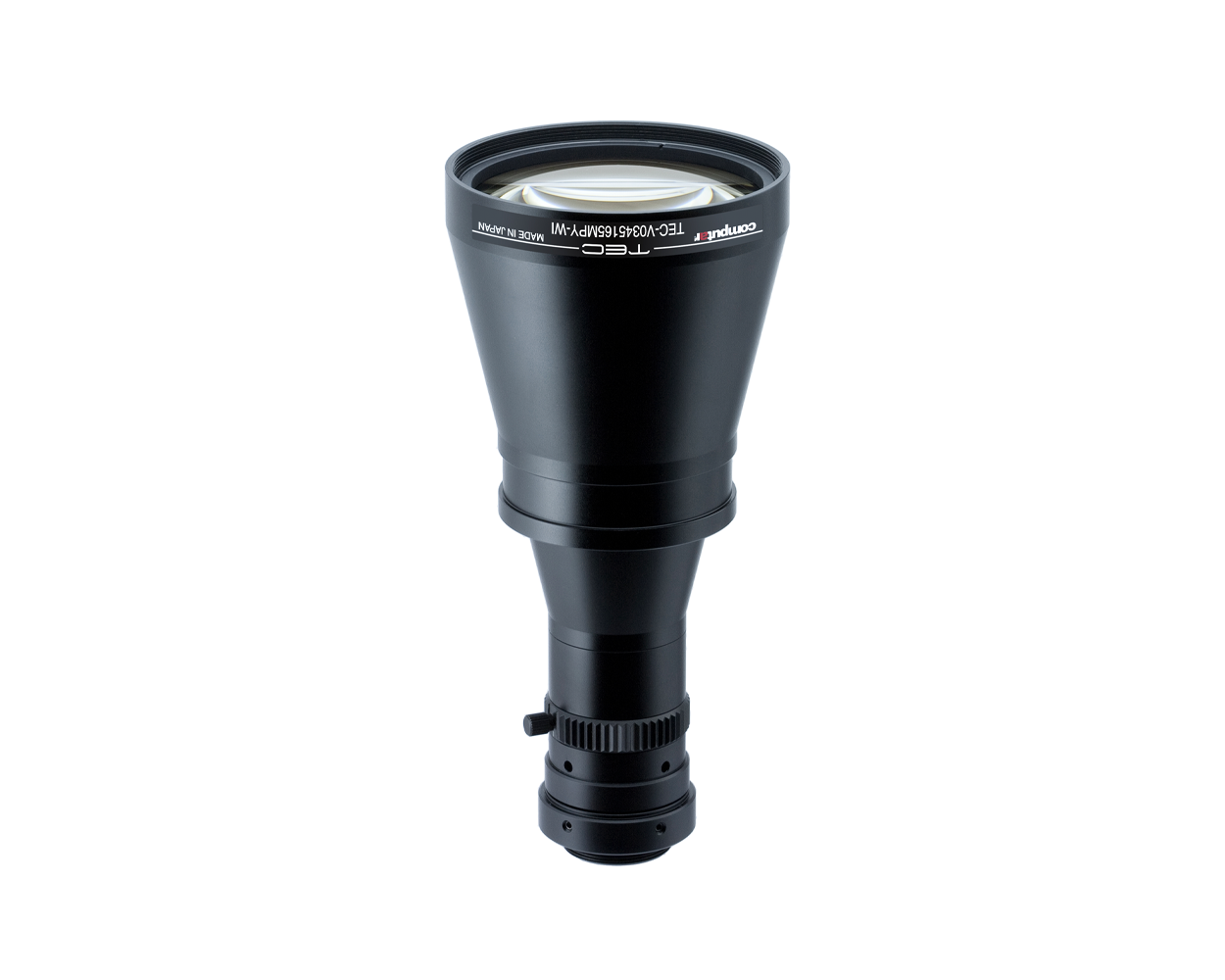

Computar - TEC-V0345165MPY-WI - 12MP, 1.1" 165.2mm, Telecentric Lens, 0.345x Magnification, Variable Iris (C Mount)
Part number:
TEC-V0345165MPY-WI
Price:
The quality optics of Computar's Telecentric lenses provide high-resolution images with the lowest possible geometrical distortion.
Features:
- Compatible with up to 12MP sensors on 1.1” cameras
- Variable manual iris (F5-32.4)
- Specialized for the Sony IMX253, 3.45μm
- C-mount
- Designed for a 165.2mm WD (working distance)
- Low TV distortion correction up to the outermost corner (-0.024%) for optimal machine vision performance
- Capable of viewing 1pixel as 10μm
- Ideal applications include measurement, positioning, and appearance inspection
- For the full lineup of Computar's Telecentric lenses, go to computar.com/TEC.
| Model No. | TEC-V0345165MPY-WI | NA | 0.0345 | ||
| Magnification | 0.345X | TV Distortion | 1.1 type | -0.024% | |
| Working Distance | 165.2mm | Back Focal Length | 28.375mm (Lens back) | ||
| Effective F Number | 5-32.4 | Flange Back Length | 17.526mm | ||
| Max. Image Format | φ17.6mm | Mount | C-Mount | ||
| Control | Iris | Manual | Filter Size | M72 x P 0.75mm | |
| Focus | - | ||||
| Field of View | 41.1mm(H) x 30.1mm(V) 1.1" | Dimensions | φ75mm x 160.8mm | ||
| Resolving Power *1 | 9.7µm | Weight | 380g | ||
| Depth of Field *2 | 6.63mm | Operating Temperature | -10℃ - +50℃ | ||
