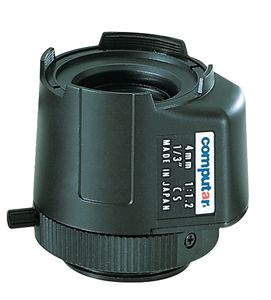

Computar - TG0412FCS-L - 1/3" 4.0mm f1.2
Part number:
TG0412FCS-L
Price:
1/3" 4.0mm f1.2.
Features:
- 1/3-inch format cameras
- Video Auto Iris
- CS-mount lens
- Focal Length: 4.0mm
- Iris Range: F1.2
- Max. Aperture Ratio: 1:1.2
| Model No. | TG0412FCS-3 | Effective Lens Aperture | Front | 15.5mm | |||
| Focal Length | 4mm | Rear | 8.5mm | ||||
| Max. Aperture Ratio | 1:1.2 | Back Focal Length | 7.7mm | ||||
| Max. Image Format | 4.8mm x 3.6mm(6mm) | Flange Back Length | 12.5mm | ||||
| Operation Range | Iris | F1.2 - F360C | Mount | CS-Mount | |||
| Focus | 0.2m - Inf. | Filter Size | ---- | ||||
| Control | Iris | DC Auto Iris | Dimensions | 32mm x 39.8mm x 33mm | |||
| Focus | Manual | Weight | 38g | ||||
| Object Dimension at M.O.D. | 24.9cm x 18.3cm | ||||||
Angle of View
| D | 1/3 type
| 76.9 | 1/4 type | 60.4 | ||
| H | 63.9 | 49.1 | |||||
| V | 49.1 | 37.3 | |||||
Coil
| Drive | 190 | |||||
| Control | 855 | ||||||
| Operating Temperature | 20C - 50C | ||||||
Name
Description
Size
Downloads
File
Specification
0.4mb
