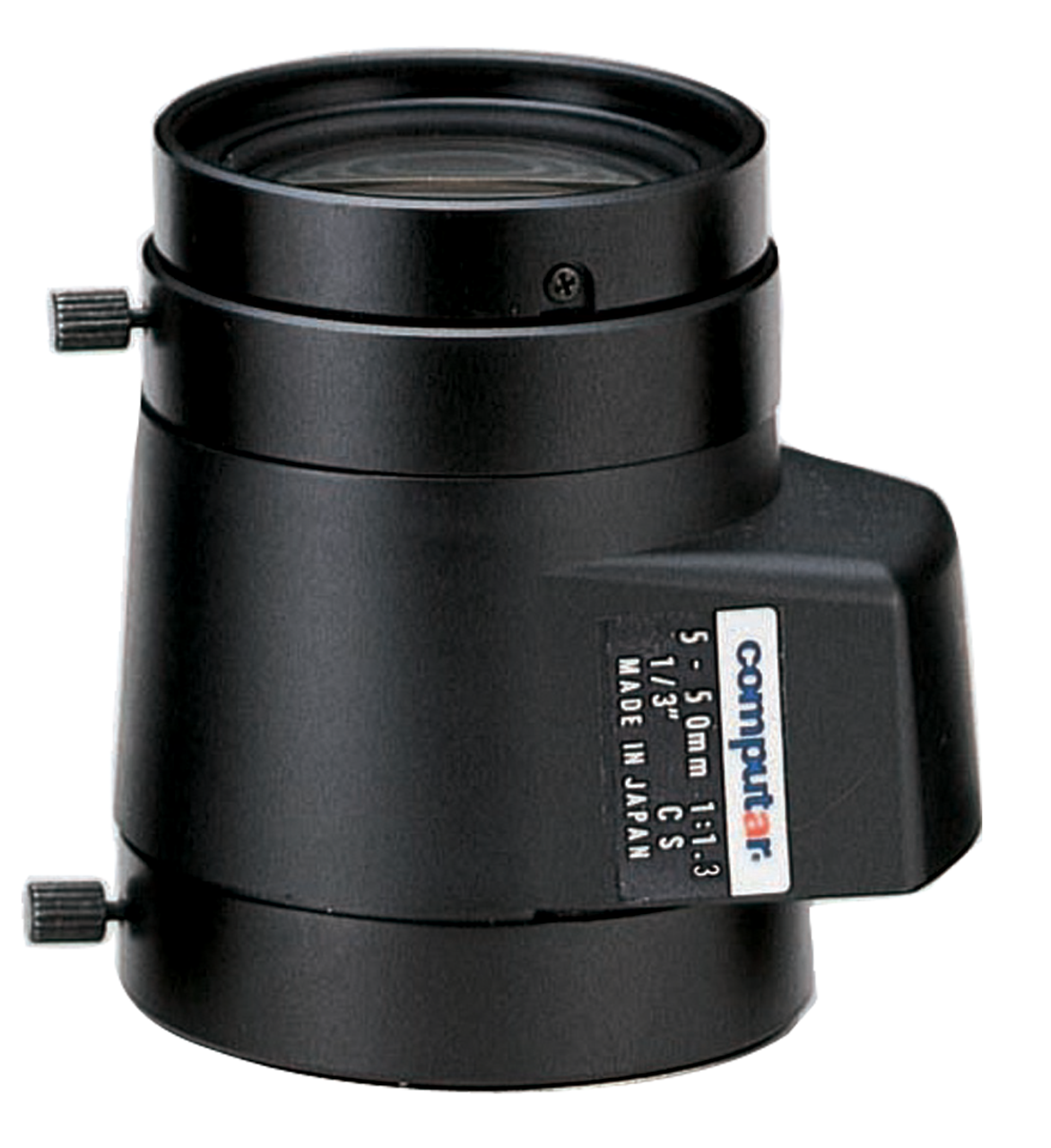

Computar - TG10Z0513FCS - 1/3" 5-50mm f1.3 A/I
Part number:
TG10Z0513FCS
Price:
1/3" 5-50mm f1.3 Varifocal, DC Auto Iris (CS Mount).
Features:
- Varifocal lens : 5 - 50 mm
- Focal min : 5 mm
- Focal max : 50 mm
- Format : 1/3”
- Lens mount : CS
- Iris control : DC Auto
- Aspherical - High Speed lens which greatly improves image quality
- F-Stop [F] : 1.3-360C
| Model No. | TG10Z0513FCS - 2 | Effective Lens Aperture | Front | 29.5mm | |||
| Focal Length | 5mm - 50mm | Rear | 8.7mm | ||||
| Max. Aperture Ratio | 1:1.3 | Back Focal Length | Tele | 10.6mm | |||
| Max. Image Format | 4.8mm x 3.6mm(6mm) | Wide | 10.5mm | ||||
| Operation Range | Iris | F1.3 - F360C | Flange Back Length | 12.5mm | |||
| Focus | 0.8m - Inf. | Mount | CS-Mount | ||||
| Zoom | 5mm - 50mm | Filter Size | M37.5 P0.5mm | ||||
Control
| Iris | DC Auto Iris | Dimensions | 41.7mm x 57.5mm x 57.7mm | |||
| Focus | Manual | Weight | 140g | ||||
| Zoom | Manual | ||||||
| Object Dimension at M.O.D. | 5mm | 77.7cm x 57cm | |||||
| 50mm | 7.8cm x 6.0cm | ||||||
| Angle of View | D | 1/3 type | 64.0 - 6.9 | 1/4 type | 48.8 - 5.3 | ||
| H | 51.8 - 5.6 | 39.2 - 4.3 | |||||
| V | 39.2 - 4.3 | 29.5 - 3.2 | |||||
| Coil | Drive | 190 | |||||
| Control | 1000 | ||||||
| Operating Temperature | 20C - 50C | ||||||
Name
Description
Size
Downloads
File
Specification
0.4mb
