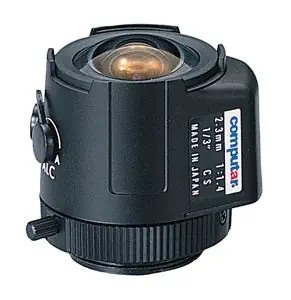

Computar - TG2314AFCS - 1/3" 2.3mm f1.4
Part number:
TG2314AFCS
Price:
1/3" 2.3mm f1.4.
Features:
- 1/3-inch format cameras
- Dimension 32.0 x 39.8 x 35.4mm
- CS-mount lens
- Focal Length: 2.3mm
- Iris Range: F1.4
- Max. Aperture Ratio: 1:1.4
| Model No. | TG2314AFCS-3 | Effective Lens Aperture | Front | 22.8mm | |||
| Focal Length | 2.3mm | Rear | 7.0mm | ||||
| Max. Aperture Ratio | 1:1.4 | Back Focal Length | 7.1mm | ||||
| Max. Image Format | 4.8mm x 3.6mm(6mm) | Flange Back Length | 12.5mm | ||||
| Operation Range | Iris | F1.4 - F360C | Mount | CS-Mount | |||
| Focus | 0.2m - Inf. | Filter Size | ---- | ||||
| Control | Iris | Video Auto Iris | Dimensions | 32mm x 39.8mm x 35.4mm | |||
| Focus | Manual | Weight | 48g | ||||
| Object Dimension at M.O.D. | 60.8cm x 37.5cm | ||||||
Angle of View
| D | 1/3 type
| 137.9 | 1/4 type | 106.7 | ||
| H | 113.3 | 86.3 | |||||
| V | 86.3 | 65.3 | |||||
| Supply Voltage | DC8V - DC16V | ||||||
| Current | Less than 35mA | ||||||
| Response Time | Approx. 2 sec. | ||||||
| Light Weighting Method | Adjustable between Average - Peak (to be Set at Average at Factory) | ||||||
| Input Signal | Video Signal (V. or V.S.) | ||||||
| Iris Accurancy | 15% at Video Signal Level | ||||||
| Sensitivity Adjustment | 0.5V(p-p) - 1.0V(p-p) (Video Signal) | ||||||
| Input Impedance | High Impedance | ||||||
| Operating Temperature | 20C - 50C | ||||||
