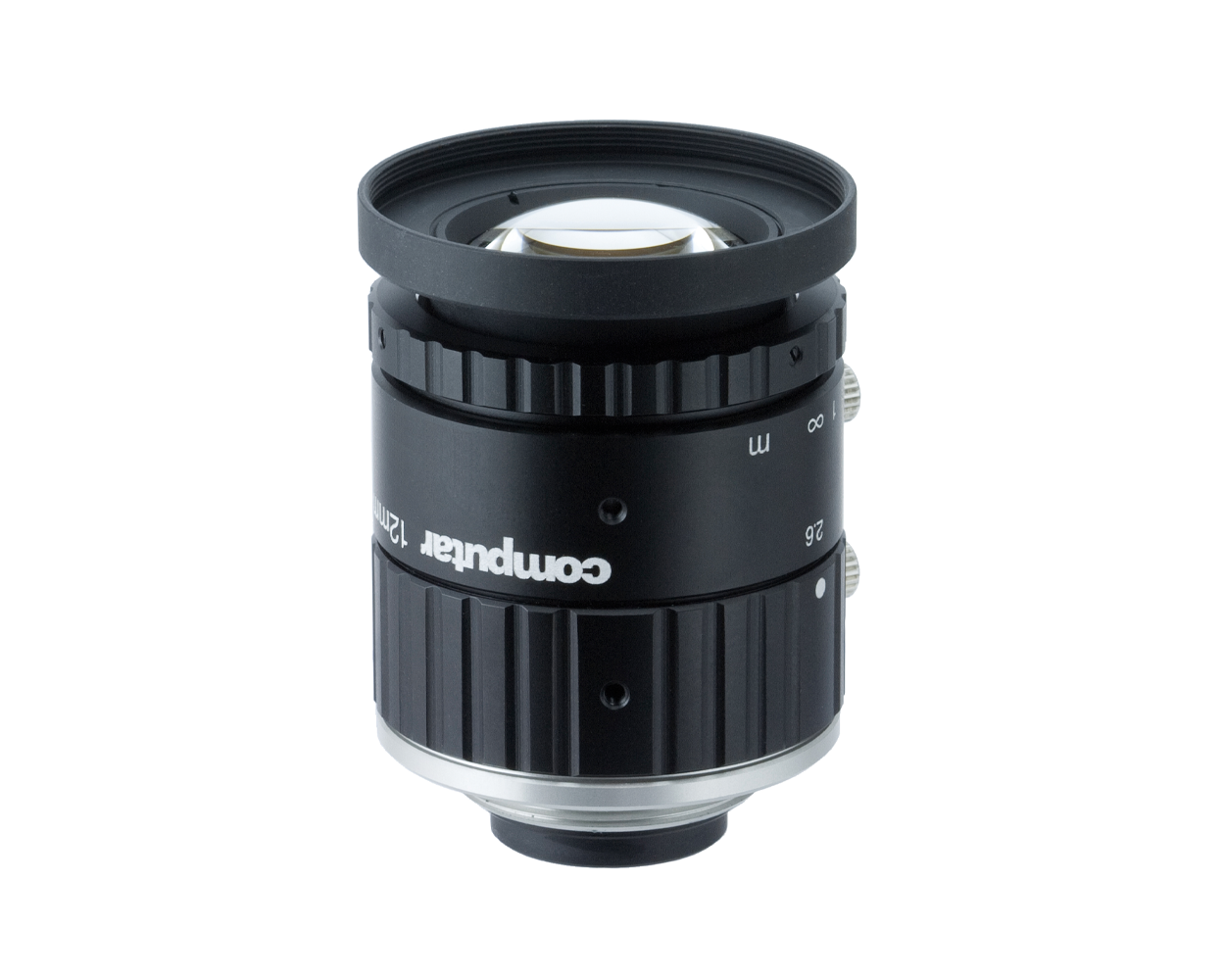

Computar - V1226-MPZ-R - 1" 12mm f2.6, 2.74m 20 megapixel Ultra low Distortion Lens, Anti-shock
Part number:
V1226-MPZ-R
Price:
1" 12mm f2.6, 2.74m 20 megapixel Ultra low Distortion Lens, anti-shock
Features:
- 20MP
- 12mm Fixed Lens
- Compatible with up 20 Megapixel Cameras
- C Mount
- F 2.6
- Shorter Working Distance
- Compact & Light weight
- Vibration resistance up to 5G
- Nominal Distortion Design
- Ensure Corner Brightness
- For Machine Vision Applications
| Model No. | V1226-MPZ | Effective Lens Aperture | Front | φ22.6mm | |||
| Focal Length | 12mm | Rear | φ15.1mm | ||||
| Max. Aperture Ratio | 1:2.6 | Distortion | 1 Type | 0.0% | |||
| Max. Image Format | 12.8mm x 9.6mm(φ16mm) | 2/3 Type | -1.1% | ||||
| Operation Range | Iris | F2.6 ‐ F16.0 | 1/1.8 Type | -1.0% | |||
| Focus | 0.1m ‐ Inf. | Back Focal Length | 10.6mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C-Mount | ||||
| Object Dimension at M.O.D. | 1 Type | 123.2mm x 91.9mm | Filter Size | M37.5 P=0.5mm | |||
| 2/3 Type | 84.1mm x 62.7mm | Dimensions | φ39mm x 43.5mm | ||||
| 1/1.8 Type | 68.5mm x 51.2mm | Weight | 98.4g | ||||
Angle of View
| D | 1 Type | 67.4° | 2/3 Type | 49.8° | 1/1.8 Type | 41.5° |
| H | 56.7° | 40.7° | 33.7° | ||||
| V | 44.1° | 31.0° | 25.5° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
