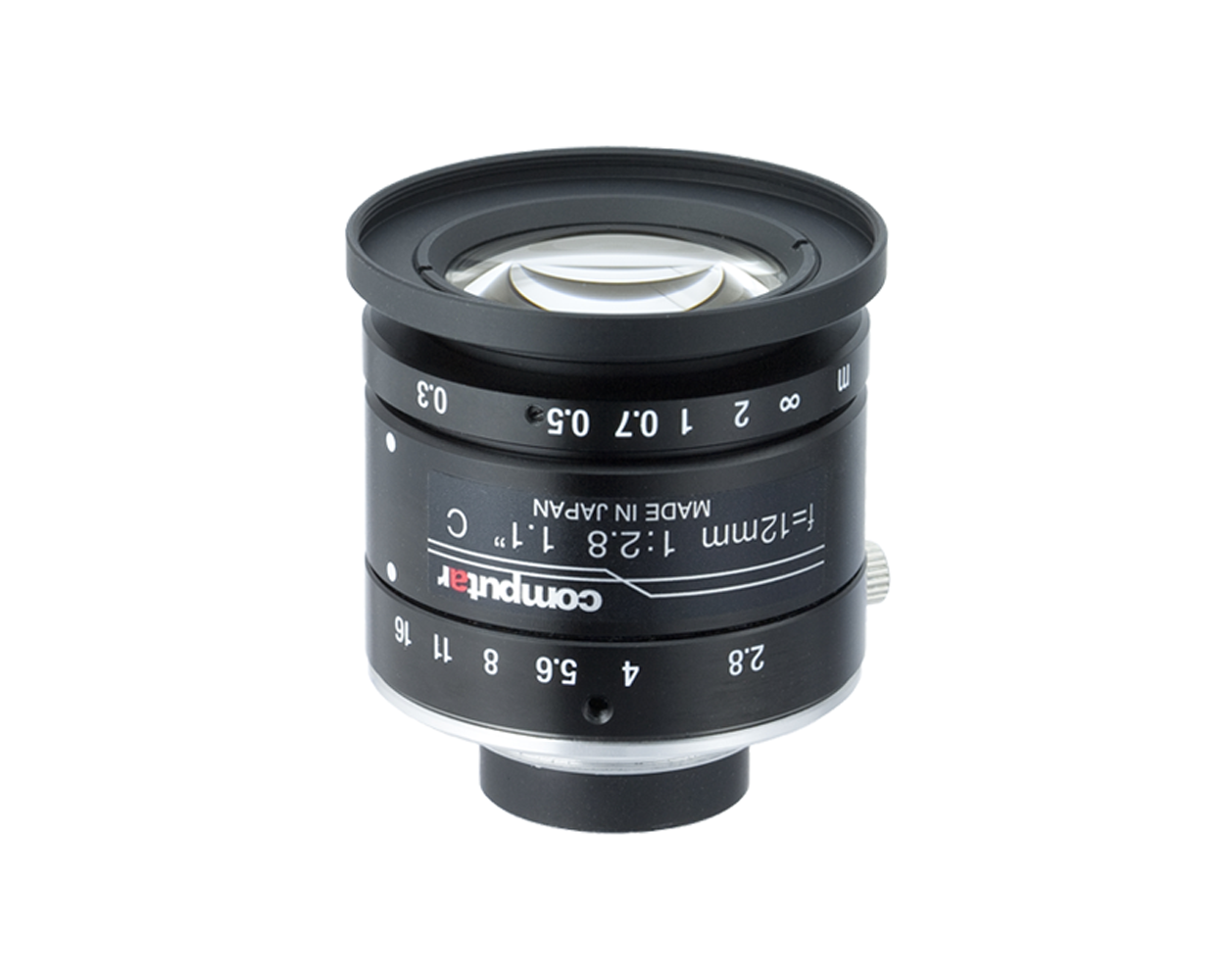

Computar - V1228-MPY - 24 MP, 1.1" 12mm F2.8, Ultra-low Distortion Lens (C-Mount)

Product Overview

The Computar V1228-MPY2 is a 1.1" 12mm C-mount lens from the MPY Series, designed for high-resolution machine vision and ITS applications. With 24MP-class optical performance, F2.8 aperture, and ultra-low distortion design, it supports precise image capture where sharpness, compact size, and stable optical geometry are required.

Key Configuration

Series: MPY Series; lens format: 1.1"; focal length: 12mm; aperture: F2.8; mount: C-mount; optical class: 24MP; image circle: Ø17.6mm; design: ultra-low distortion lens.

Key Features

• 24MP optical performance supports high-detail machine vision imaging.
• 12mm focal length provides a practical wide-to-standard field of view for inspection and ITS use.
• Ultra-low distortion design helps preserve accurate image geometry.
• Lightweight construction supports compact camera and embedded vision installations.
• Vibration resistance up to 5G helps maintain stable performance in demanding environments.

Technical Context

The V1228-MPY2 is built for 1.1" sensors and provides an image circle of Ø17.6mm. Its C-mount design supports integration with compatible industrial cameras, while the MPY Series is available across multiple focal lengths including 8, 12, 16, 25, 35, and 50mm.

Installation Notes

Use with compatible C-mount machine vision cameras and 1.1" sensor formats. After installation, adjust focus and iris for the target working distance and lighting conditions before locking the imaging setup into production use.
