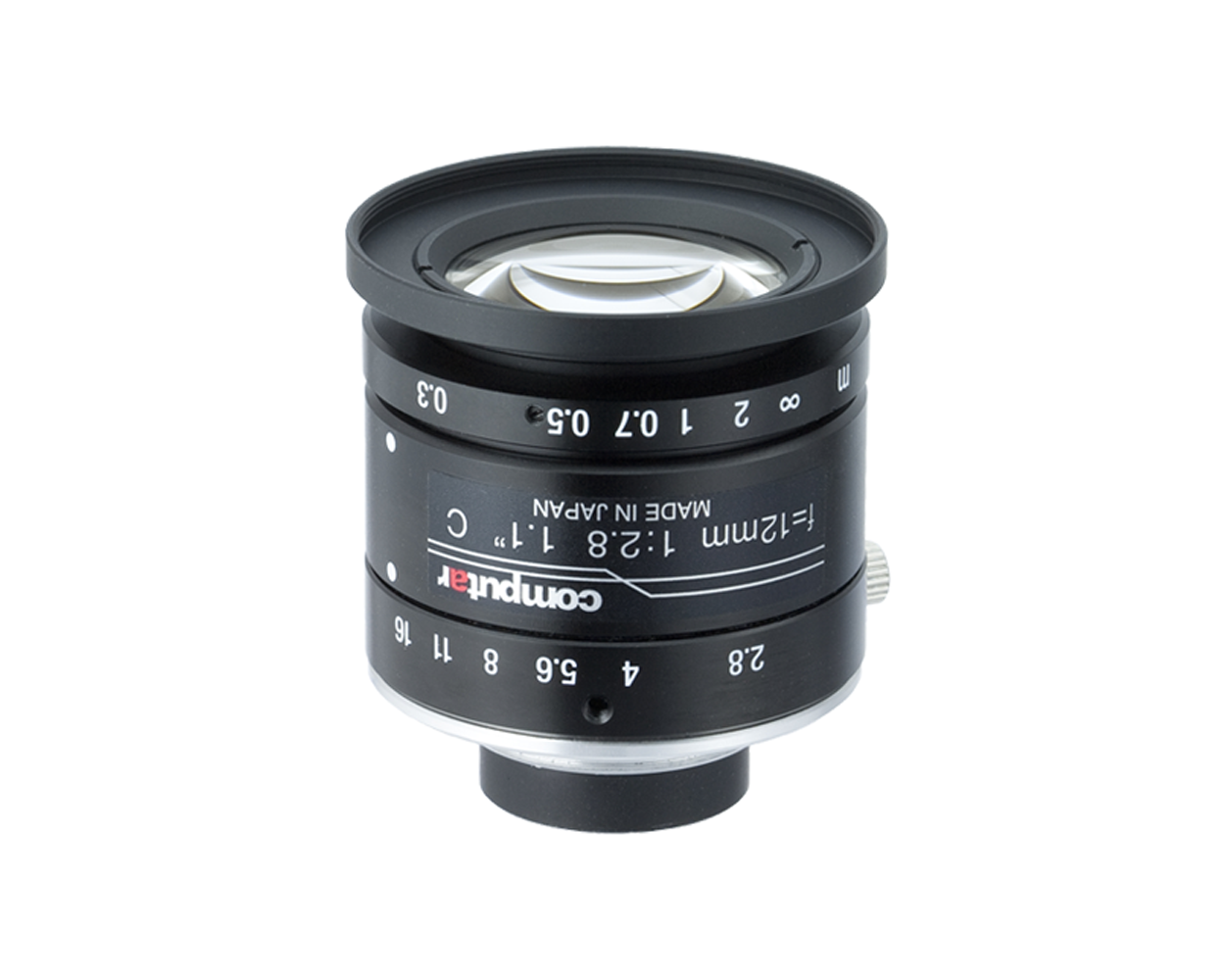

Computar - V1228-MPY2 - 12 MP, 1.1" 12mm F2.8, 3.45um, Ultra-low Distortion Lens (C-Mount)
Part number:
V1228-MPY2
Price:
1.1" 12mm f2.8, 3.45um, 12.0 megapixel Ultra low Distortion Lens.
Features:
- For Machine Vision and ITS Applications
- 12mm F2.8
- 12 Megapixel
- C Mount
- Smallest 1.1” format lens for > 10MP Lens in the industry
- 3.45µm pixel size
- Lightweight
- Vibration resistance up to 5G
- Image circle Ø17.6
| Model No. | V1228-MPY2 | Effective Lens Aperture | Front | φ26.2mm | |||
| Focal Length | 12mm | Rear | φ16.7mm | ||||
| Max. Aperture Ratio | 1:2.8 | Distortion | 1.1 type | -0.5% | |||
| Max. Image Format | 14.2mm x 10.4mm(φ17.6mm) | 1 type | -1.0% | ||||
| Operation Range | Iris | F2.8 ‐ F16.0 | 2/3 type | -1.4% | |||
| Focus | 0.3m ‐ Inf. | Back Focal Length | 8.4mm | ||||
| Control | Iris | Manual | Flange Back Length | 17.526mm | |||
| Focus | Manual | Mount | C-Mount | ||||
Object Dimension at M.O.D. | 1.1 Type | 35cm x 26cm | Filter Size | M40.5 P=0.5mm | |||
| 1 Type | 32cm x 24cm | Dimensions | φ42.0mm x 36.1mm | ||||
| 2/3 Type | 22cm x 16cm | Weight | 97.2g | ||||
Angle of View
| D | 1.1 Type | 71.1° | 1 Type | 66.4° | 2/3 Type | 48.6° |
| H | 60.5° | 55.5° | 39.6° | ||||
| V | 46.2° | 42.9° | 30.1° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
