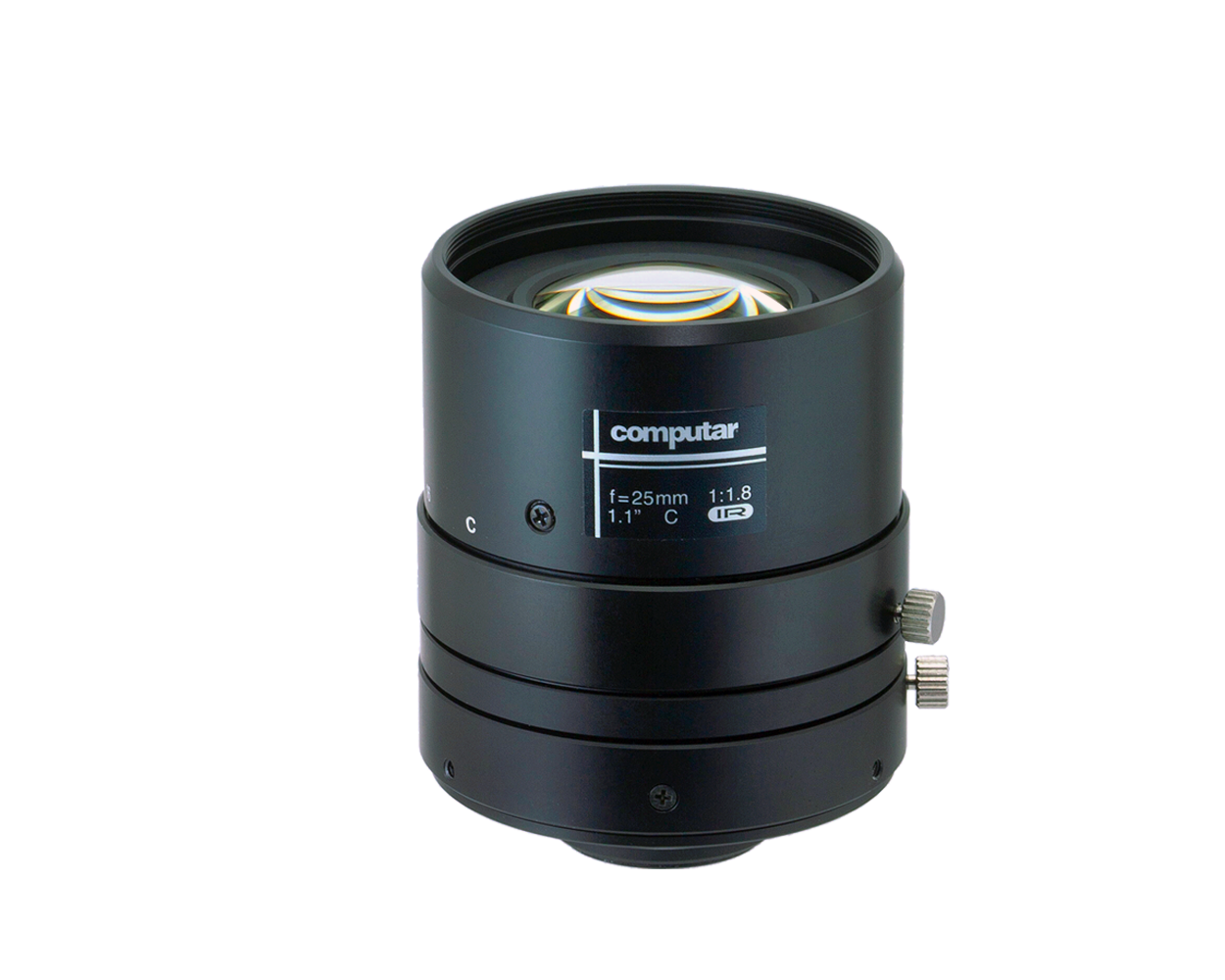

Computar - V2518FIC-MPYIR - 12MP 1.1" 25mm F1.8 IR Corrected Ultra-low Distortion Lens (C-Mount)
Part number:
V2518FIC-MPYIR
Price:
The MPY Series supports a 1.1” sensor format at 12 Megapixel resolution in a C-mount IR lens. The MPYIR Series combines high-performance optics with a variety of common focal lengths for maximum application flexibility.
Features:
- For Machine Vision and ITS Applications
- 25mm Fixed Lens
- 12 Megapixel
- IR Corrected
- C Mount
- Manual Iris
- Smallest 1.1” format lens for > 10MP Lens in the industry
- F 1.8
- 3.45µm pixel size
- Lightweight
- Vibration resistance up to 5G
- Image circle Ø17.6
| Model No. | V2518FIC-MPYIR | Effective Lens Aperture | Front | φ23.6mm | |||
| Focal Length | 25mm | Rear | φ16.6mm | ||||
| Max. Aperture Ratio | 1:1.8 | Back Focal Length | 10.6mm | ||||
| Max. Image Format | 14.2mm x 10.4mm(φ17.6mm） | Flange Back Length | 17.526mm | ||||
| Operation Range | Iris | F1.8 ‐ F16C | Mount | C-Mount | |||
| Focus | 1m ‐ lnf. | Filter Size | M40.5 P=0.5 | ||||
| Zoom | - | Dimensions | φ46mm × 50.8mm | ||||
| Control | Iris | Manual | Weight | 158.9g | |||
| Focus | Manual | ||||||
| Zoom | - | ||||||
| Angle of View | D | 1.1 type | 38.8° | 1 type | 35.6° | 2/3 type | 24.9° |
| H | 31.8° | 28.8° | 20.0° | ||||
| V | 23.6° | 21.8° | 15.1° | ||||
| Operating Temperature | -10℃ ‐ +50℃ | ||||||
